Removal of Upper Panel Si04-756
8 Removal Procedure
2. Removal of Upper Panel
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points

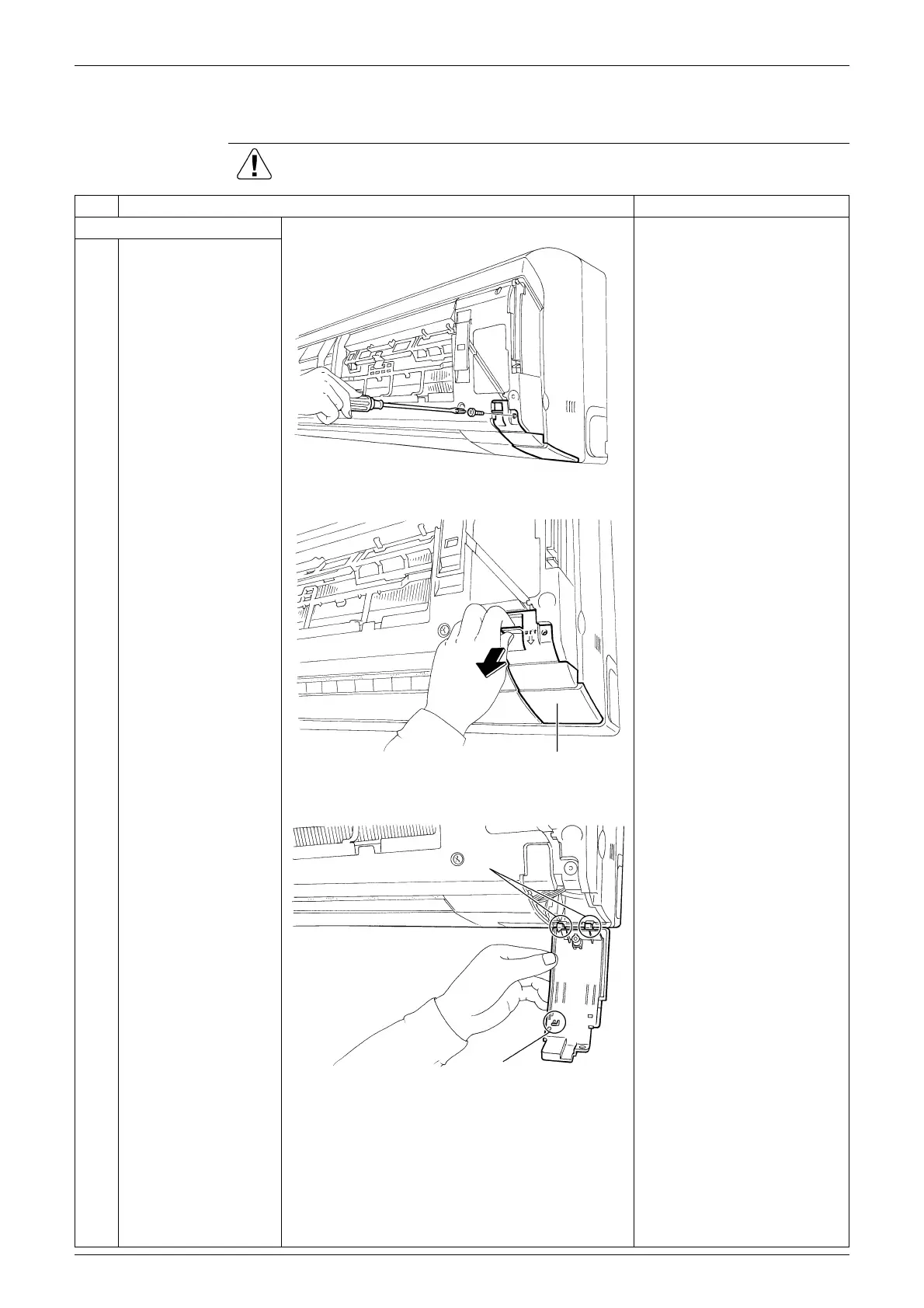

1. Remove the service cover.
1
Remove the screw
(black) of the service
cover.
2
Slide the service cover
downward to unfasten
the hook on the back
side.
3
Remove the service
cover.
î
When reassembling, catch
the 2 hooks on the far side
first, and close the cover.
(R5645)
(R5646)
Service cover
(R13950)
Back side hook
Hook
