Removal of Air Filters / Front panel Si04-756
2 Removal Procedure
1. Removal of Air Filters / Front panel
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. External appearance
Multi-colored indicator lamp
changes its color according
to the operation mode.
Remote controller is
interactive communication
type.

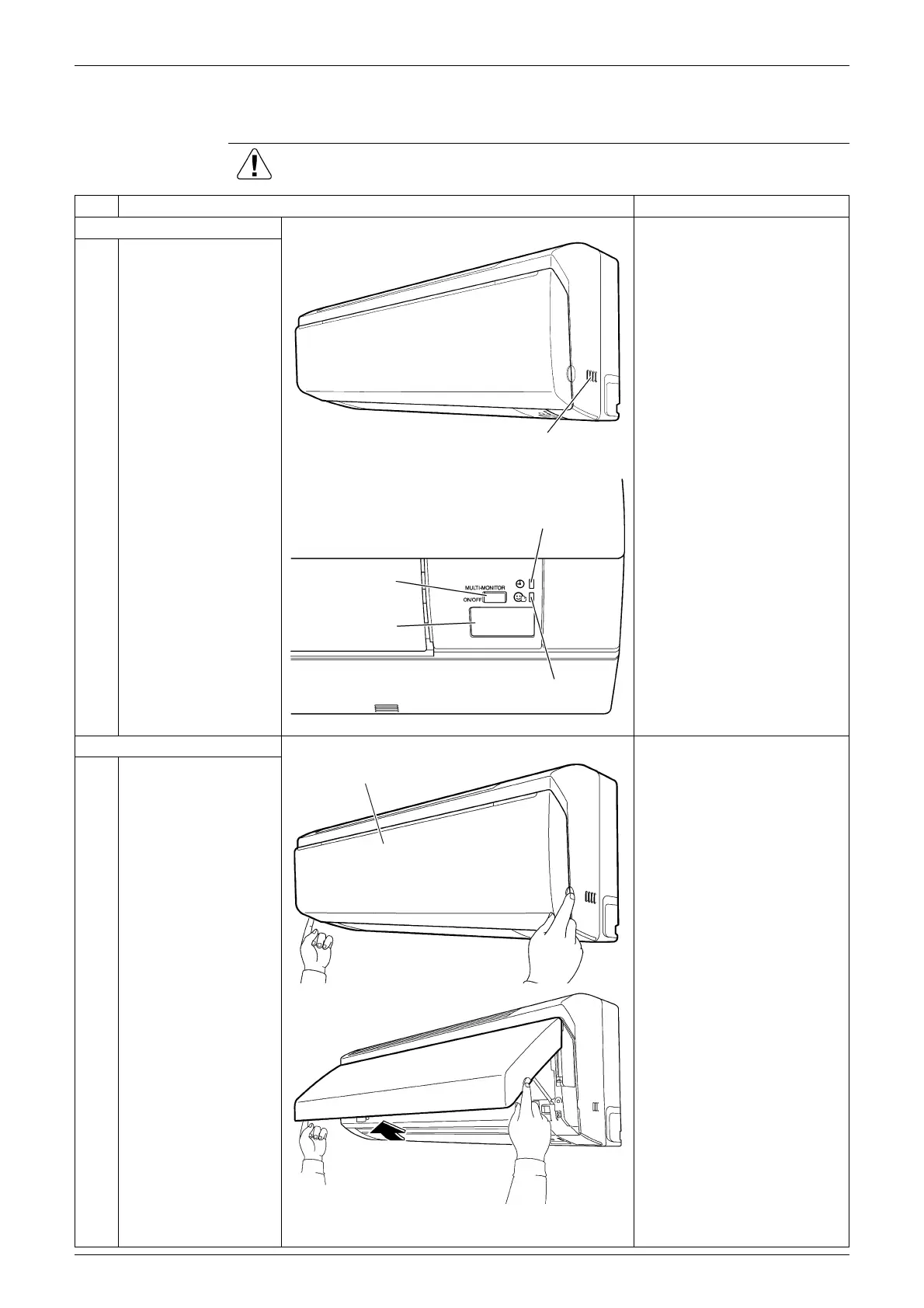

2. Remove the air filters.
1
Hold the front panel on
both sides and lift it up.
(R5620)
Room temperature thermistor
Humidity sensor
Timer lamp
ON/OFF button
(Multi-colored
indicator lamp)
Signal receiver
MOISTURIZING
lamp
(R13943)
(R13944)
Front panel
(R5623)
