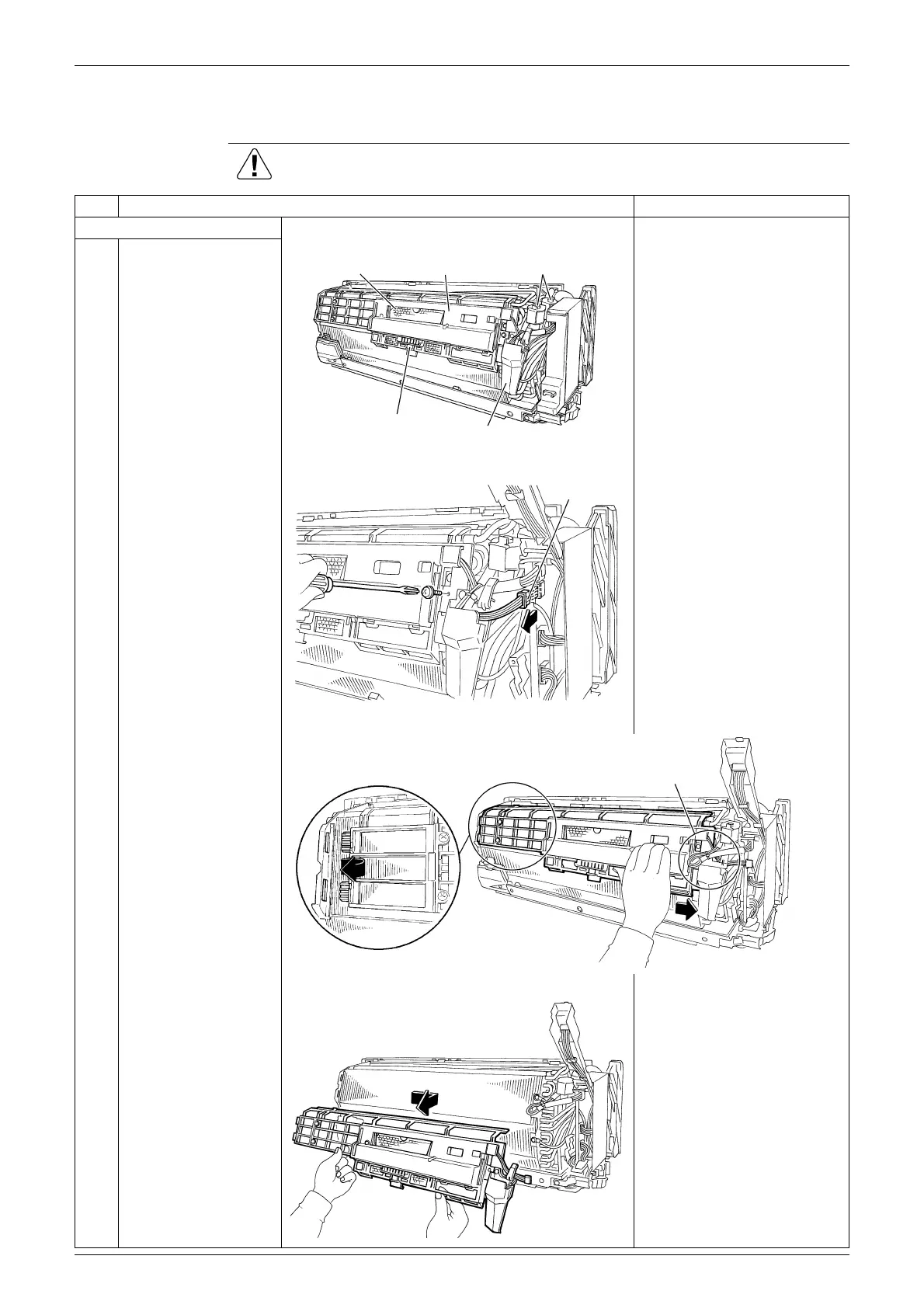

Si04-756 Removal of Streamer Unit

Removal Procedure 45

15.Removal of Streamer Unit

Procedure Warning Be sure to wait for 10 minutes or more after turning off all power

supplies before disassembling work.

Step Procedure Points

1. Remove the streamer unit.

Open the electrical box

cover and disconnect

the connector for the

streamer unit PCB

[S52].

Remove the screw of

the streamer unit.

Release the wire

harness for the

dehumidifying solenoid

valve coils from the

hook of the drip proof

cover.

Slide the streamer unit

to the right.

Remove the streamer

unit.

(

R13976

)

Drip proof cover

Electrode unit

Deodorizing filter

for streamer

Streamer unit

Dehumidifying

solenoid valve coil

[S52]

(R5772)

(R5773)

Harness

(R5774)
