Daikin FTXR50EV1B9 Service Manual

Removal of Horizontal Blades / Vertical Blades Si04-756
44 Removal Procedure

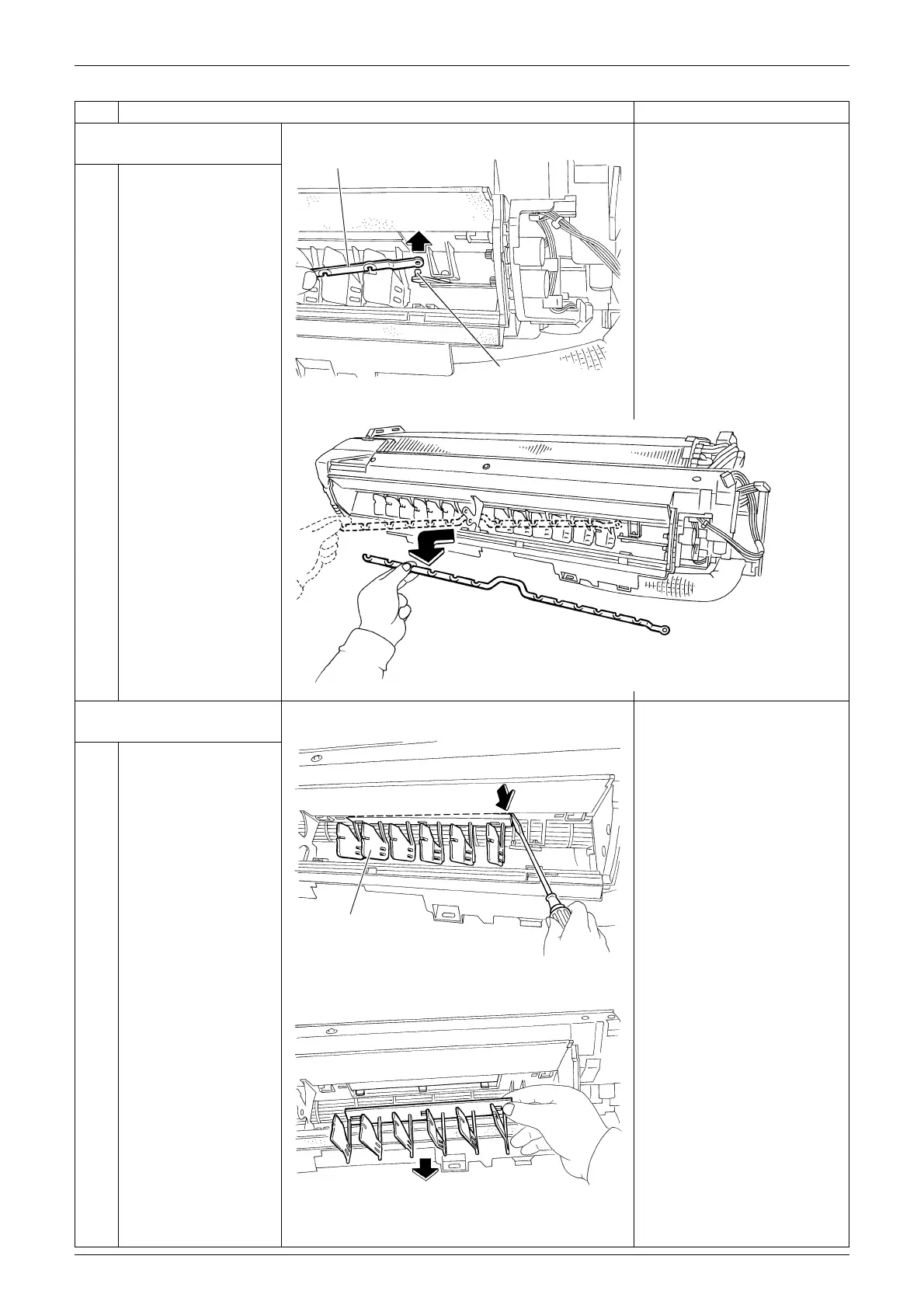

2. Remove the interlocking
shaft.
1
Unfasten the hook of
the interlocking shaft.
2
Remove the
interlocking shaft.
3. Remove the vertical
blades.
1
Unfasten the 3 hooks
of the vertical blades
with a flat screwdriver.
2
Remove the vertical
blades assembly.
Step Procedure Points
(R13974)
Interlocking shaft
Hook
(R5768)
(R13975)
Vertical blades assembly
(R5770)
