Si04-756 Removal of Front Grille
Removal Procedure 11
3. Removal of Front Grille
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points

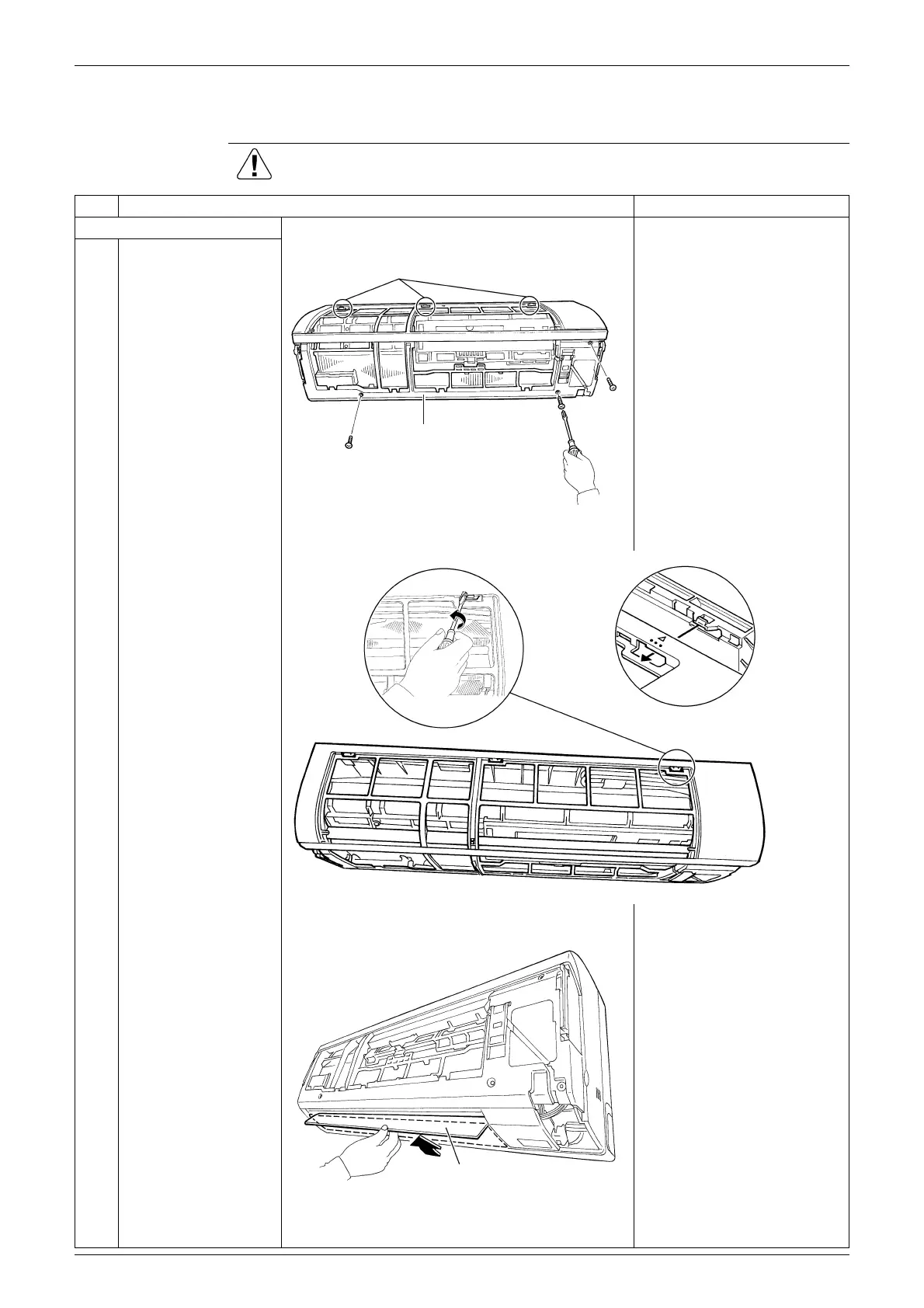

1. Remove the front grille.
If the hooks are hard to be
unfasten, use a flat
screwdriver.
The convex marks (...) on
the front panel indicate the
position of the hooks.
1
Remove the 3 screws.
2
Unfasten the upper 3
hooks.
3
Open the horizontal
blade (large) fully for
preventing it from
getting caught in
pulling the front grille
out.
(R13952)
Front grille
Hook
(R5655)
(R5654)
Horizontal blade (large)
(R14117)
To Next Page
