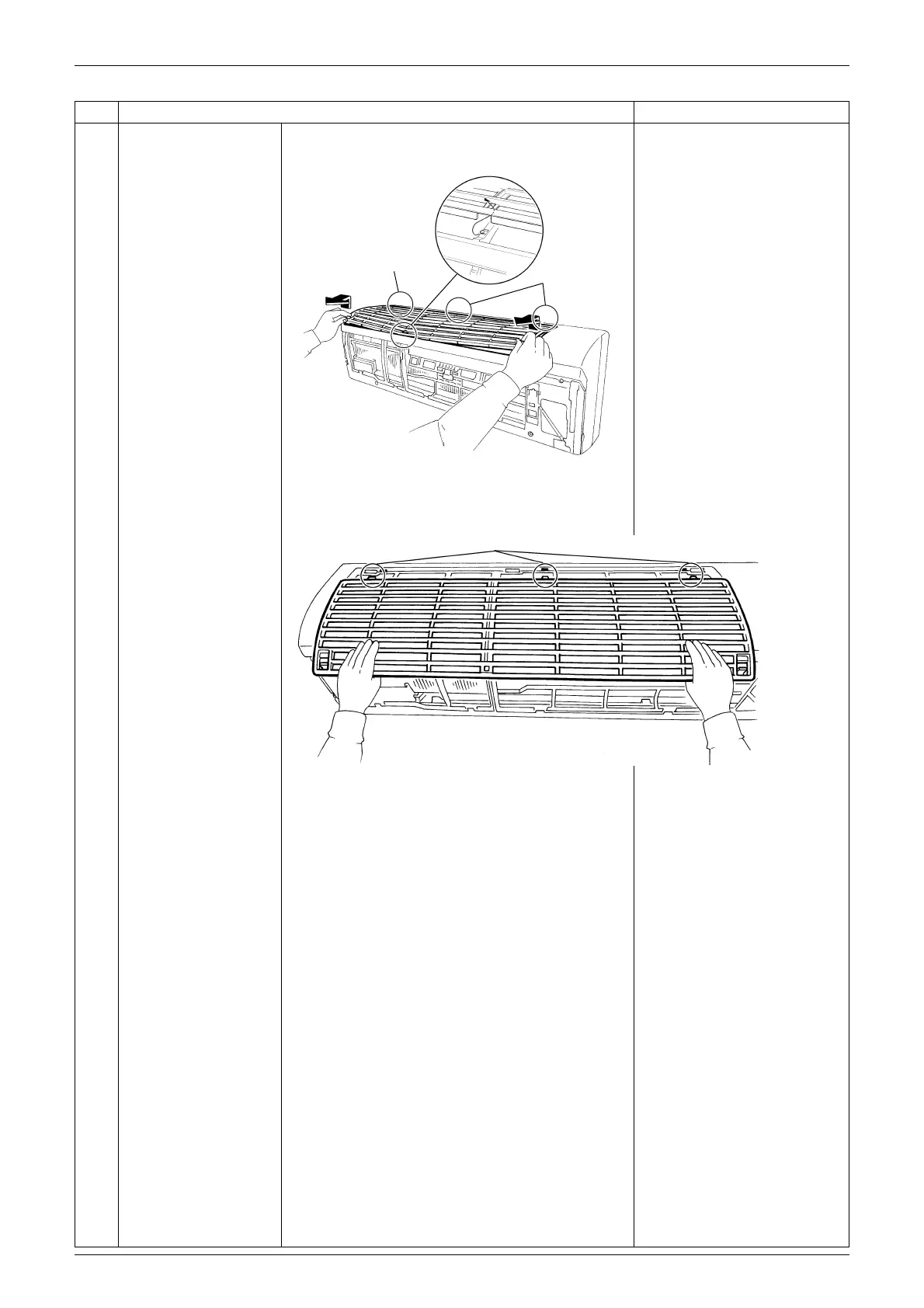

Removal of Upper Panel Si04-756
10 Removal Procedure
4
In part C, lift the right
and left sides to bend
the upper panel and
slightly pull it to
unfasten the hook.
5
Pull the upper panel
and remove it.

When reassembling, make
sure to catch the 3 hooks on
the far side.
Step Procedure Points
Part C
Hook
Hook
Hook in front
(R18489)
Hook
(R14116)
