Si04-756 Removal of Horizontal Blades / Vertical Blades
Removal Procedure 43

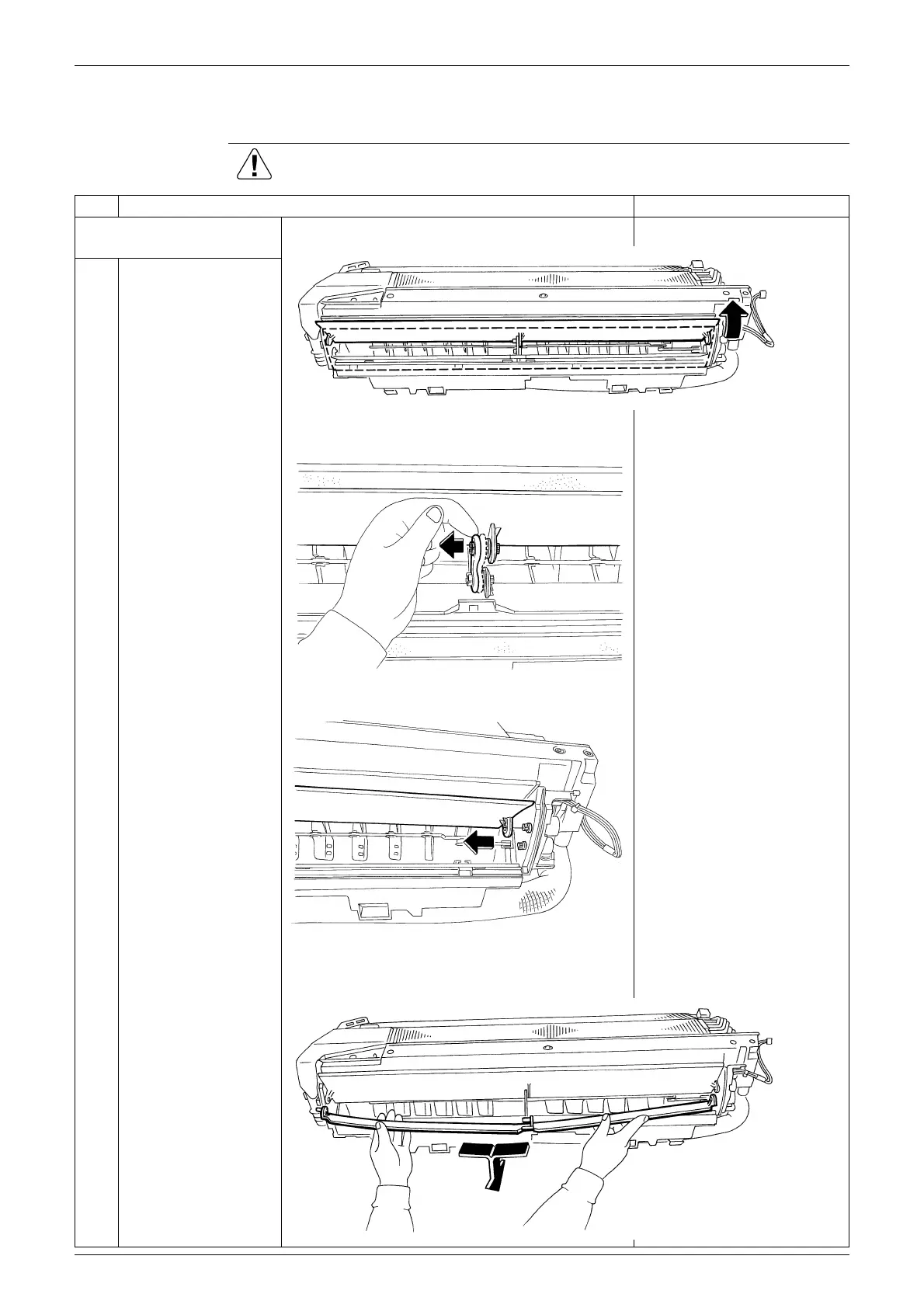

14.Removal of Horizontal Blades / Vertical Blades
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Remove the horizontal
blades.
1
Open the horizontal
blade (large).
2
Unfasten the center
shaft for the horizontal
blade (large).
When installing the
horizontal blades, be careful
not to put the large and
small blades in the wrong
position.
3
Unfasten the left shaft
while bending the
horizontal blade (large)
slightly.
4
Unfasten the right shaft
and remove the
horizontal blade
(large).
There is a key alignment at
the right side.
5
Remove the horizontal
blade (small) in the
same way.
(R5763)
(R5764)
(R5766)
(R5765)
To Next Page
