Si04-756 Removal of Electrical Box
Removal Procedure 19

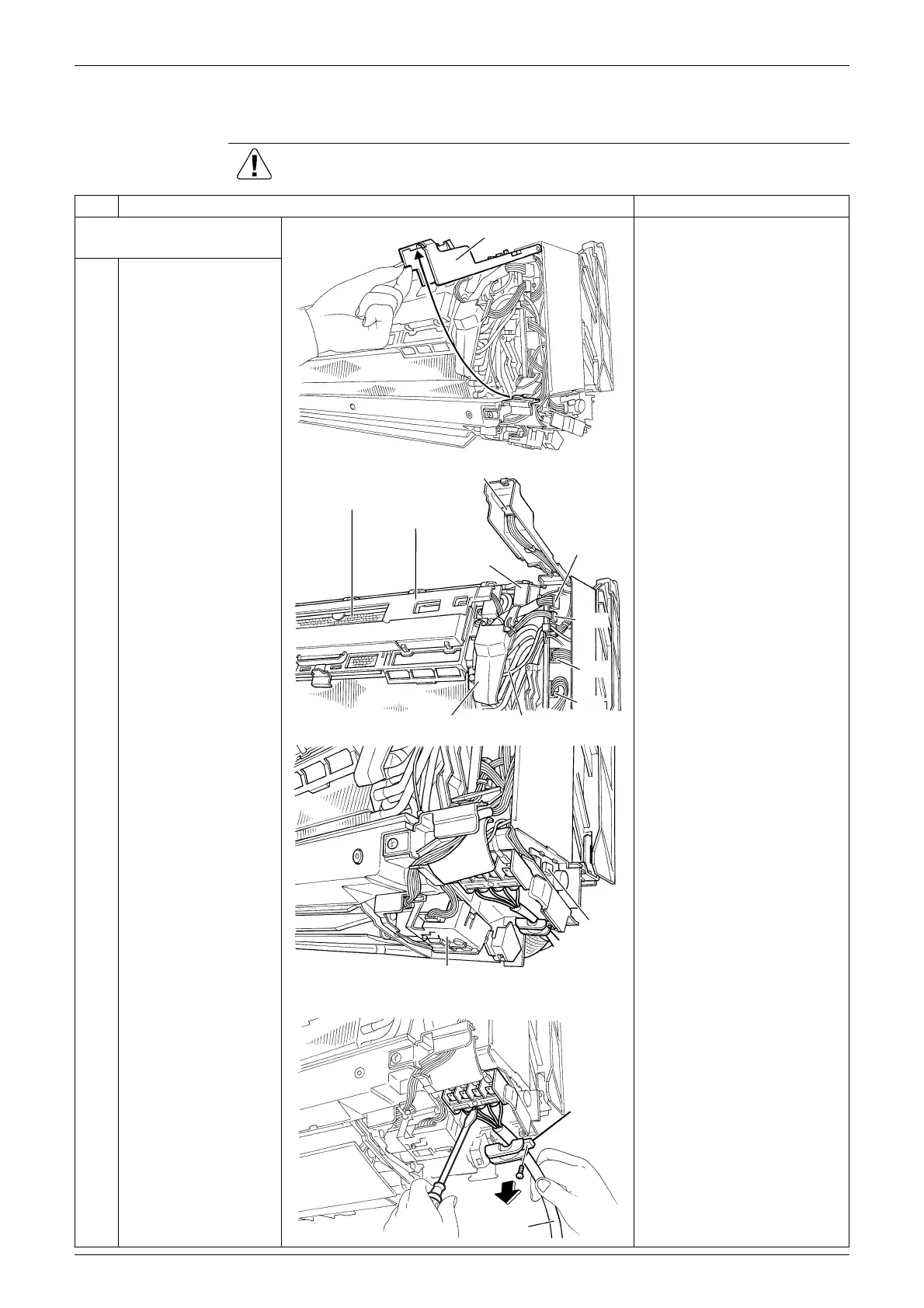

6. Removal of Electrical Box
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points
1. Disconnect the
connectors.
1
Open the electrical box
cover.
2
The figure shows the
arrangement of wiring
and names of parts.
3
Remove the screw and
remove the wire fixing
plate.
4
Remove the screws
and disconnect the
connection wires.
(R13960)
Electrical box cover
Relay connector for reduction motor
Deodorizing filter
for streamer
Streamer unit
Dehumidifying
solenoid valve
coil
[S43]
[S52]
[S41]
[S1]
Earth wireDrip proof cover
(R13962)
Humidity
sensor
PCB
(R14130)
Lamp cover assembly
(Display PCB, Signal receiver / transmitter PCB)
(R13961)
Wire fixing
plate
Connection
wires
To Next Page
