Daikin FTXR50EV1B9 Service Manual

Removal of PCBs Si04-756
24 Removal Procedure
7. Removal of PCBs
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step Procedure Points

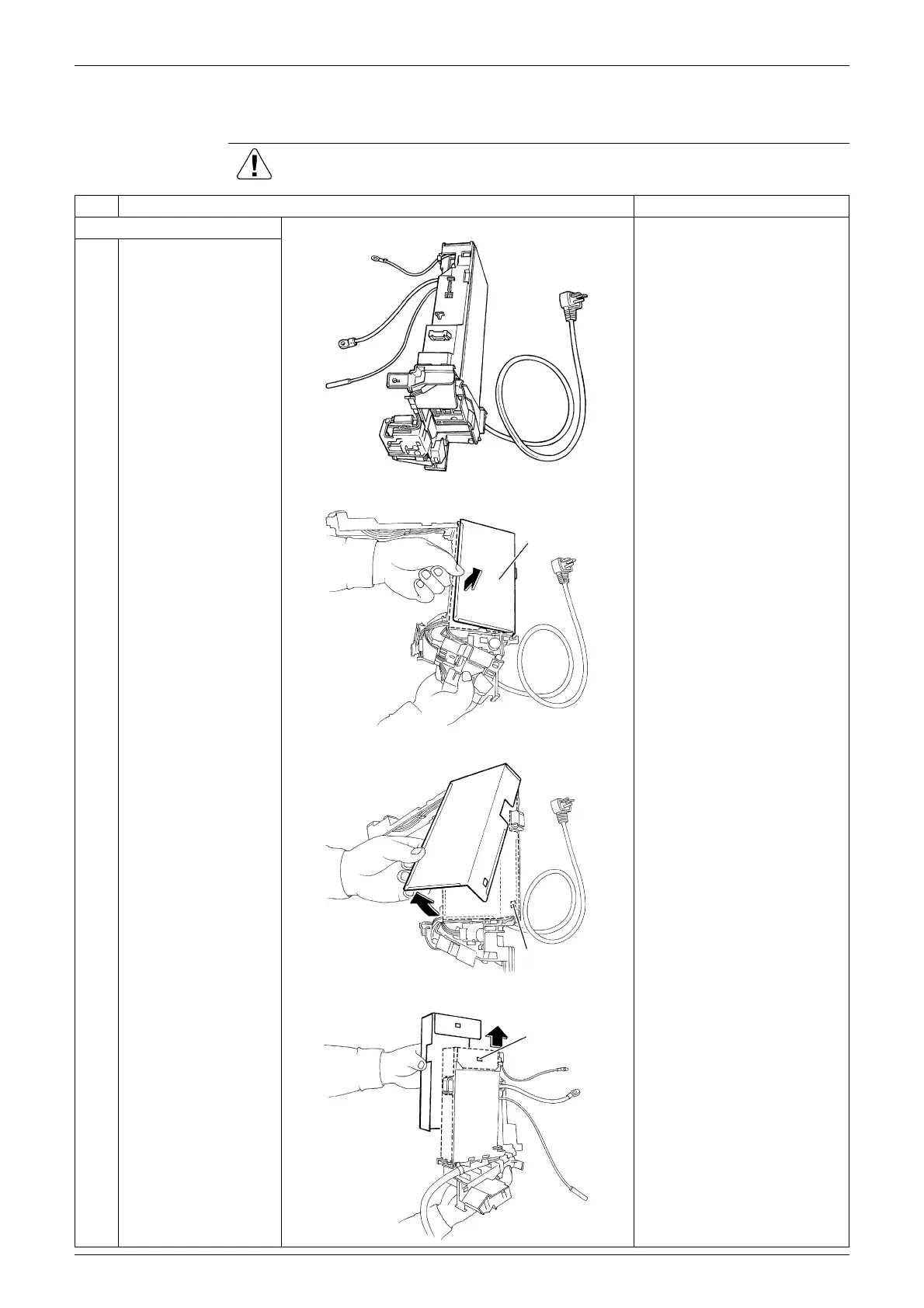

1. Remove the shield plate Preparation

Remove the electrical box
according to "Removal of
Electrical Box".
1
External appearance of
the electrical box
2
Unfasten the hook of
the shield plate.
3
While opening the
shield plate, unfasten
the lower hook.
4
Lift the shield plate up
to unfasten the upper
hook and remove it.
(R14159)
(R14160)
Shield plate
Lower hook
(R5699)
(R5700)
Upper hook
