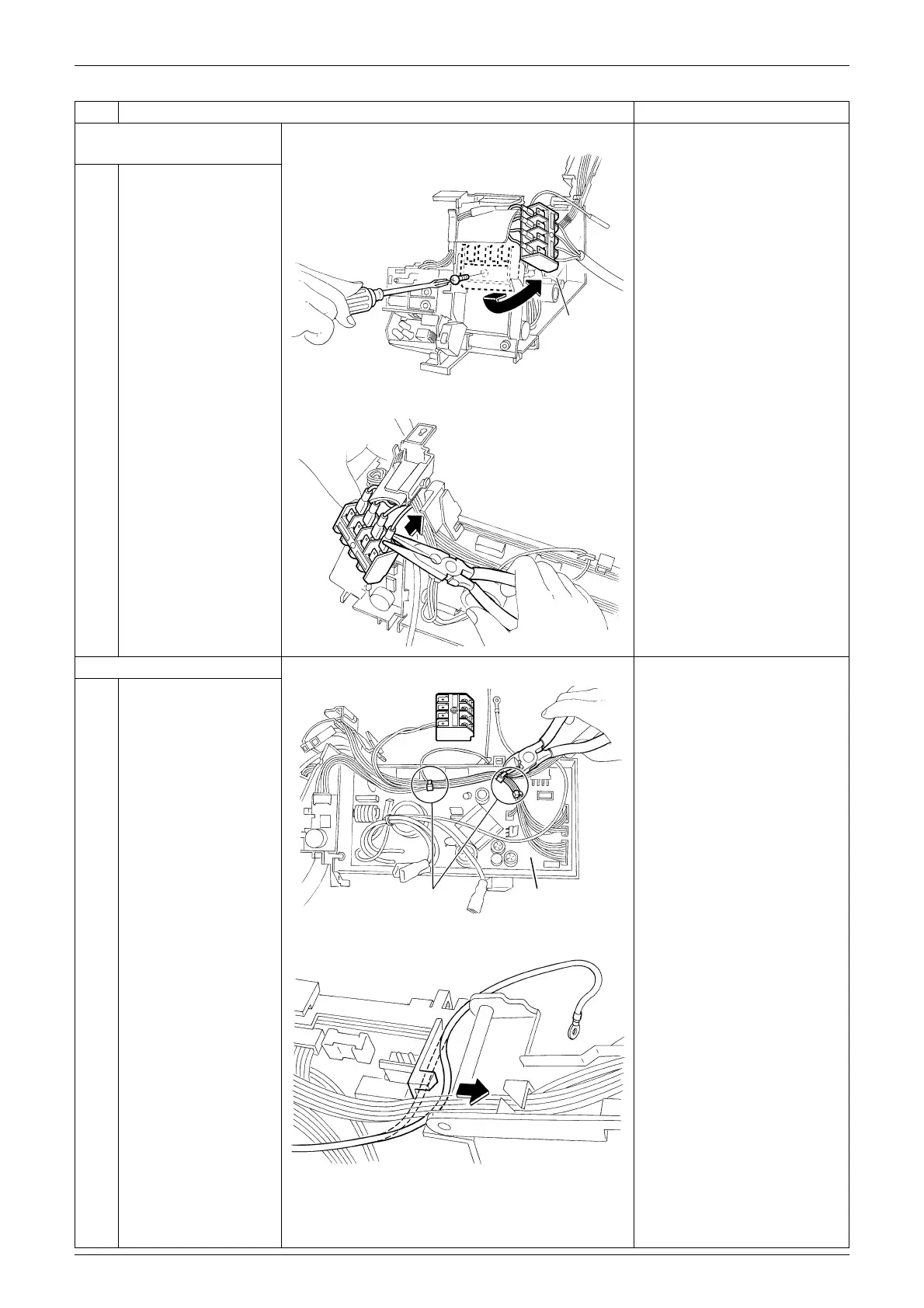

Si04-756 Removal of PCBs
Removal Procedure 25
2. Remove the terminal
board.
1
Remove the screw and
pull out the terminal
board.
2
Disconnect the
terminals with pliers.
Black...... (1) power supply
White ..... (2) power supply
Red........ (3) signal
Green..... earth
3. Remove the control PCB.

When reassembling, fix the
harnesses with clamps.
1
Cut the 3 clamps.
2
Release the earth wire
from the hook.
Step Procedure Points
(R14161)
Terminal
board
(R14162)
(R14163)
Control PCB
Clamp
(R5704)
