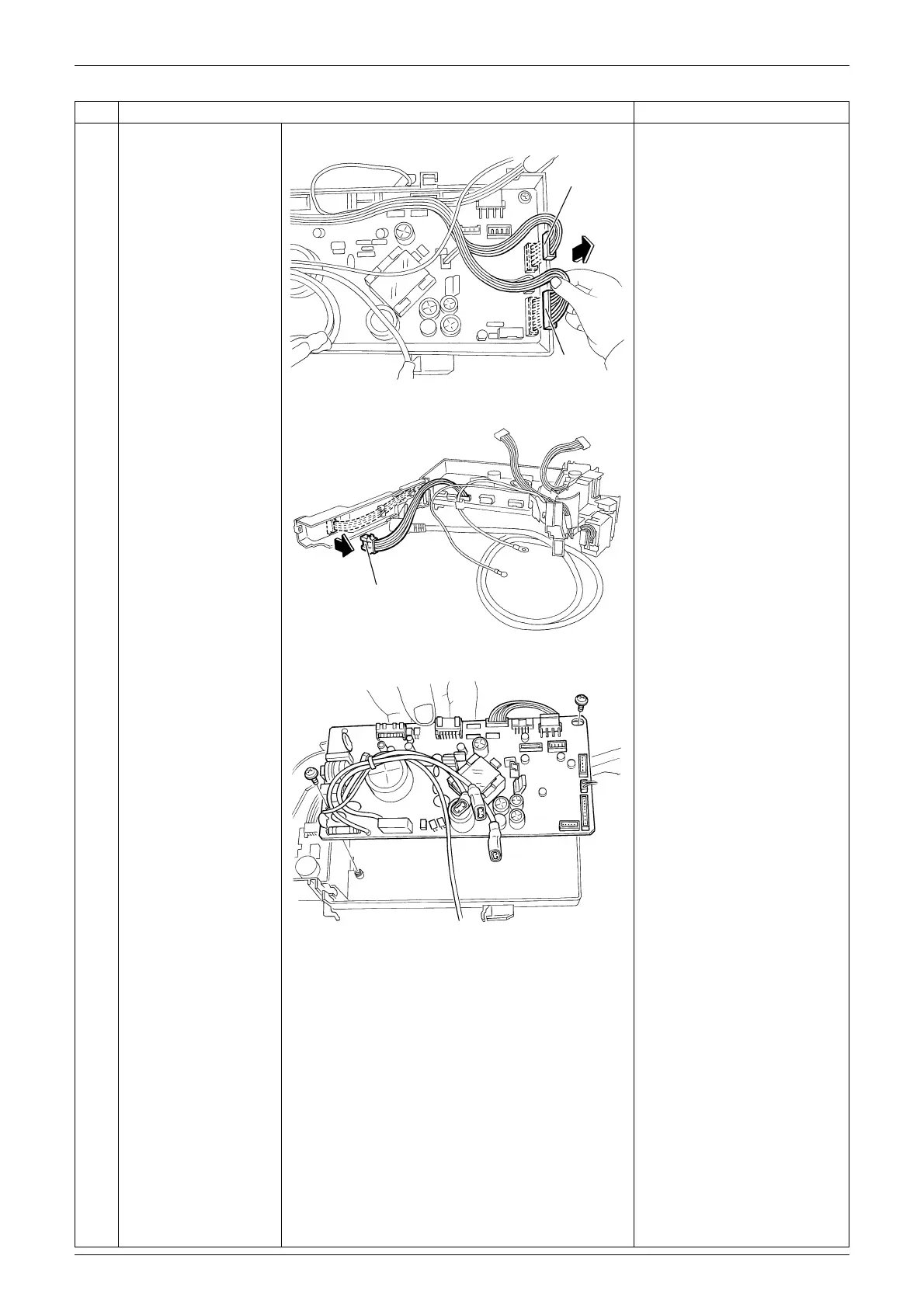

Removal of PCBs Si04-756
26 Removal Procedure
3
Disconnect the
connectors [S46] [S48].
[S46]: display PCB
[S48]: humidity sensor PCB
4
Pull out the relay
connector for the
reduction motor while
pinching the connector
from the back side of
the electrical box
cover.
5
Remove the 2 screws
and remove the control
PCB.
Step Procedure Points
(R5705)
[S46]
[S48]
Relay connector for
reduction motor
(R14164)
(R5708)
