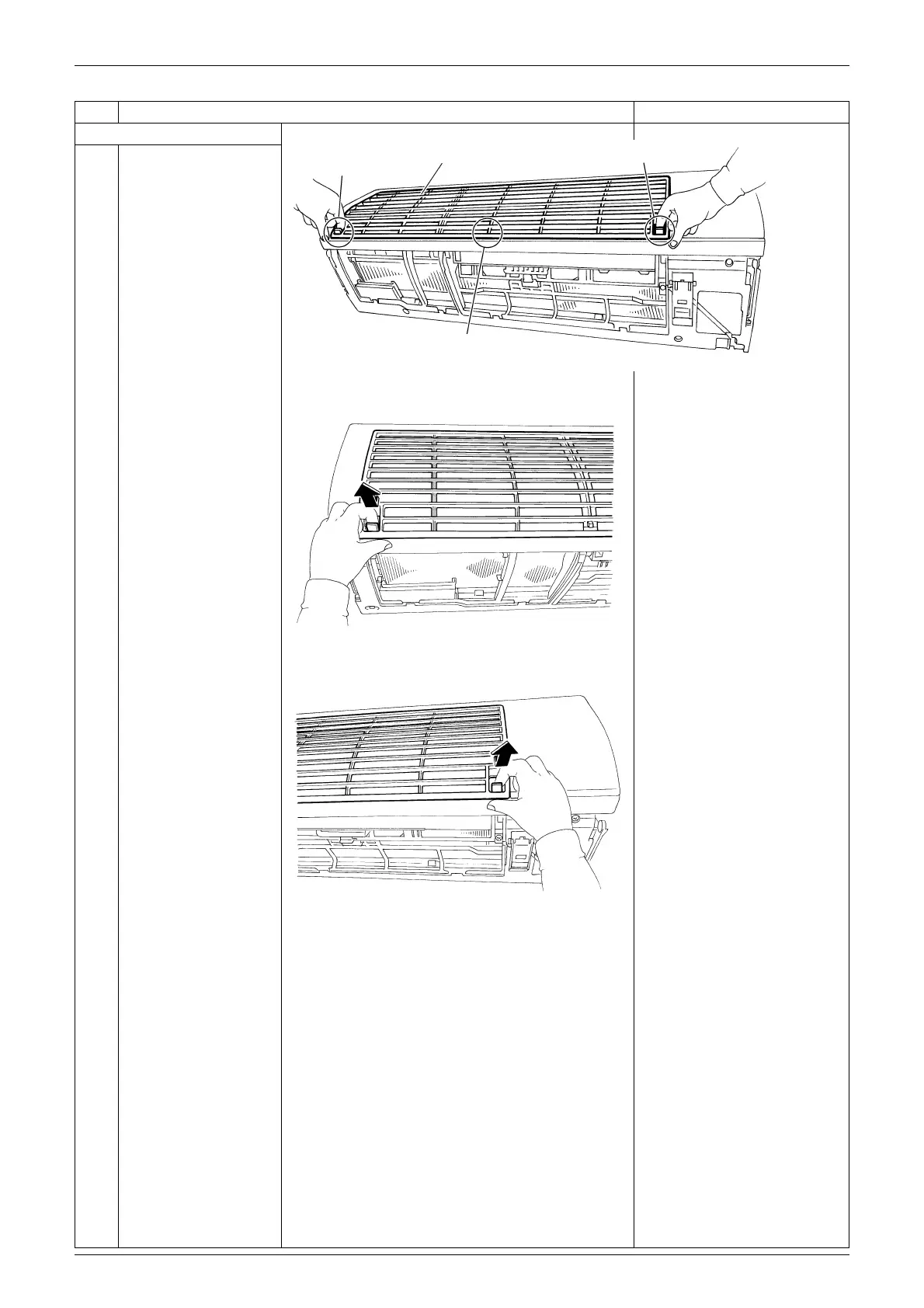

Si04-756 Removal of Upper Panel
Removal Procedure 9
2. Remove the upper panel.
1
The upper panel has 3
hooks at the front.
2
In part A, pinch and
unfasten the hook.
3
In part B, pinch and
unfasten the hook as in
part A.
Step Procedure Points
(R13951)
Upper panel
Part C
Part B
Part A
Part A
(R5649)
(R5650)
Part B
