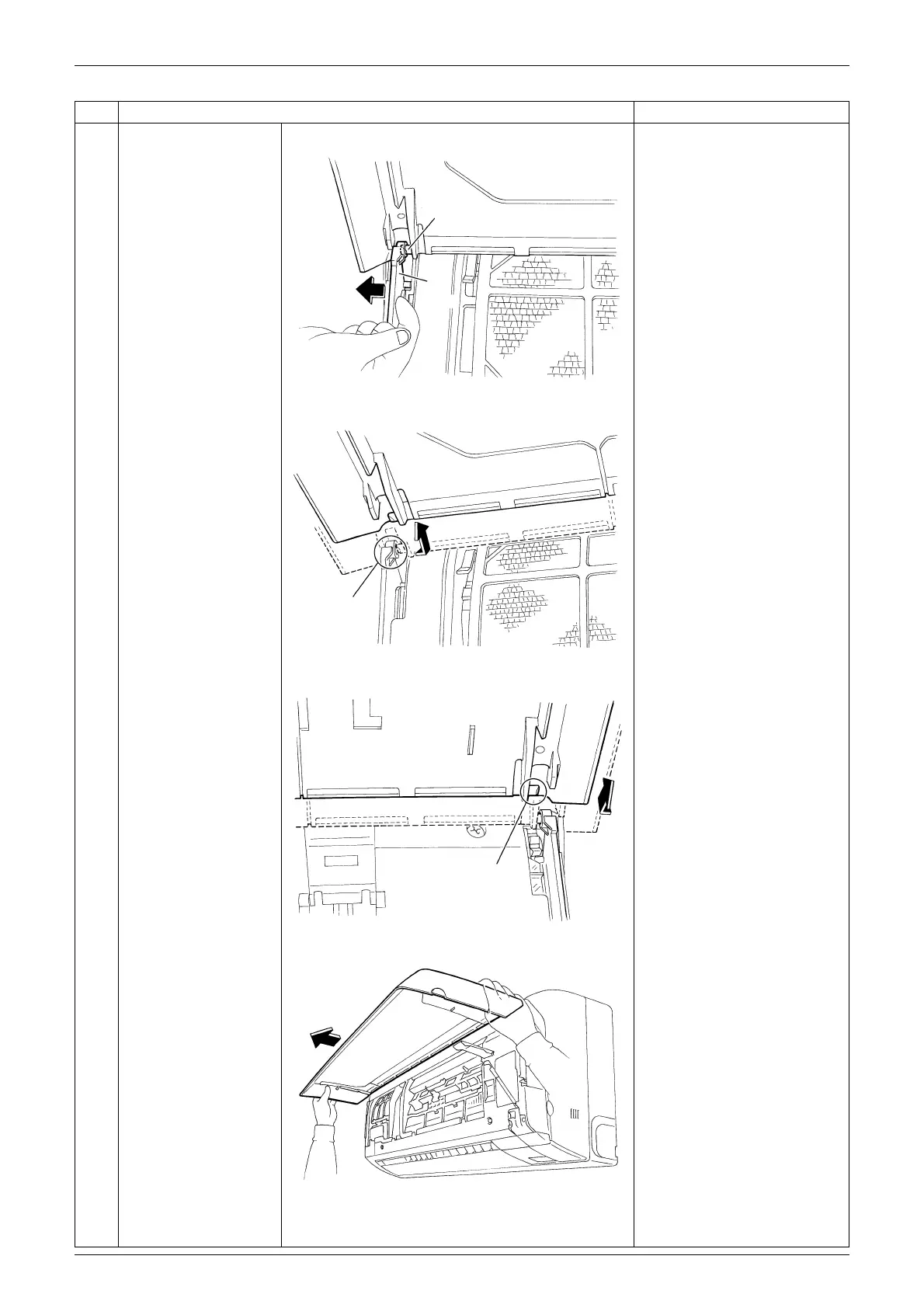

Si04-756 Removal of Air Filters / Front panel
Removal Procedure 7
2
Push the panel
stoppers outward on
both sides to detach
the rotary shafts from
the holes.
3
Slide the rotary shaft
on the left to the right
and pull it out.
4
Slide the rotary shaft
on the right to the left
and pull it out.
5
Remove the front
panel.
Step Procedure Points
(R5641)
Rotary shaft
Panel
stopper
(R5642)
Rotary
shaft
(R5643)
Rotary shaft
(R5644)
