Daikin FTXR50EV1B9 Service Manual

Si04-756 Removal of Fan Rotor / Fan Motor
Removal Procedure 41
3

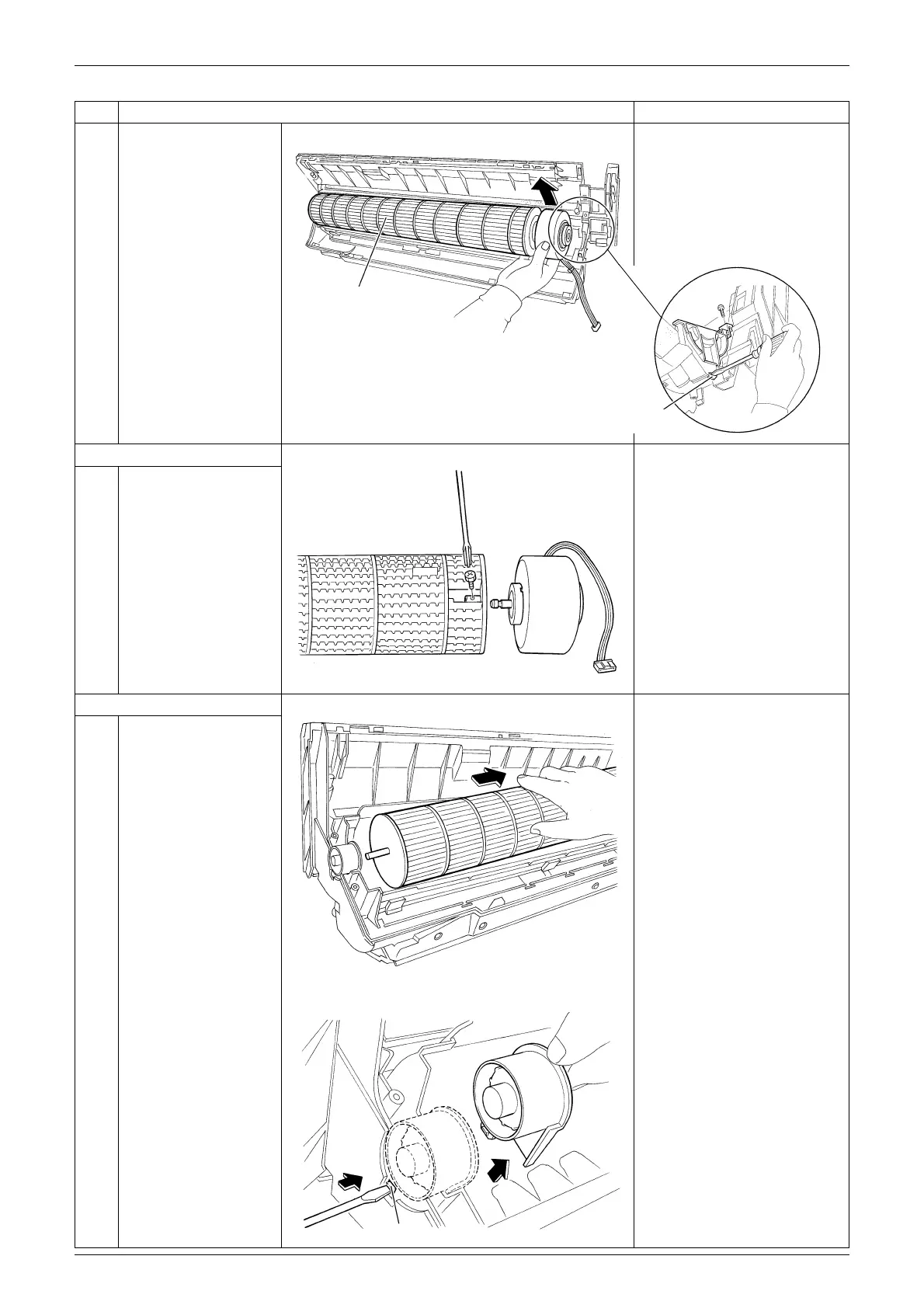

Remove the fan motor
and fan rotor.

The fan motor fixture (lower)
can be removed by
removing the screw and
pushing the hook.
3. Remove the fan motor.
1
Loosen the fixing
screw.
2
Remove the fan motor
from the fan rotor.
4. Remove the bearing.
1
Remove the fan rotor.
2
Unfasten the hook of
the bearing.
Step Procedure Points
(R5756)
Fan rotor
Hook
(R5757)
(R5758)
(R5759)
Hook
