Daikin FTXR50EV1B9 Service Manual

Removal of Swing Motors Si04-756
36 Removal Procedure
3

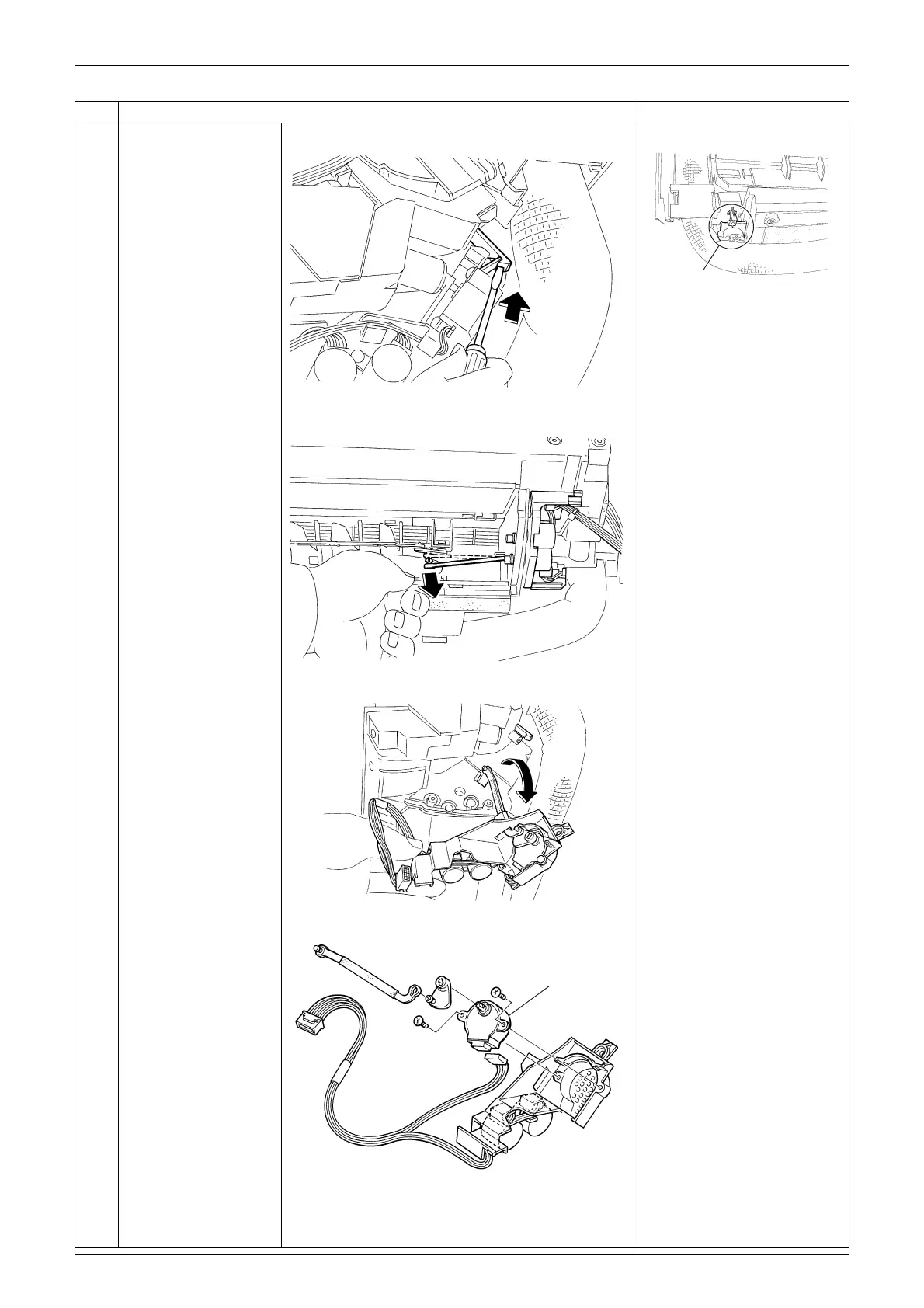

Unfasten the upper
hook of the swing
motor assembly with a
flat screwdriver.
4
Unfasten the hook of
the connecting shaft for
vertical blades.
5
Remove the swing
motor assembly.
6
Remove the 2 screws
and remove the swing
motor for vertical
blades.
Step Procedure Points
(R5735)
(R14167)
Hook
(R5736)
(R5737)
(R139171)
Swing motor
for vertical
blades
