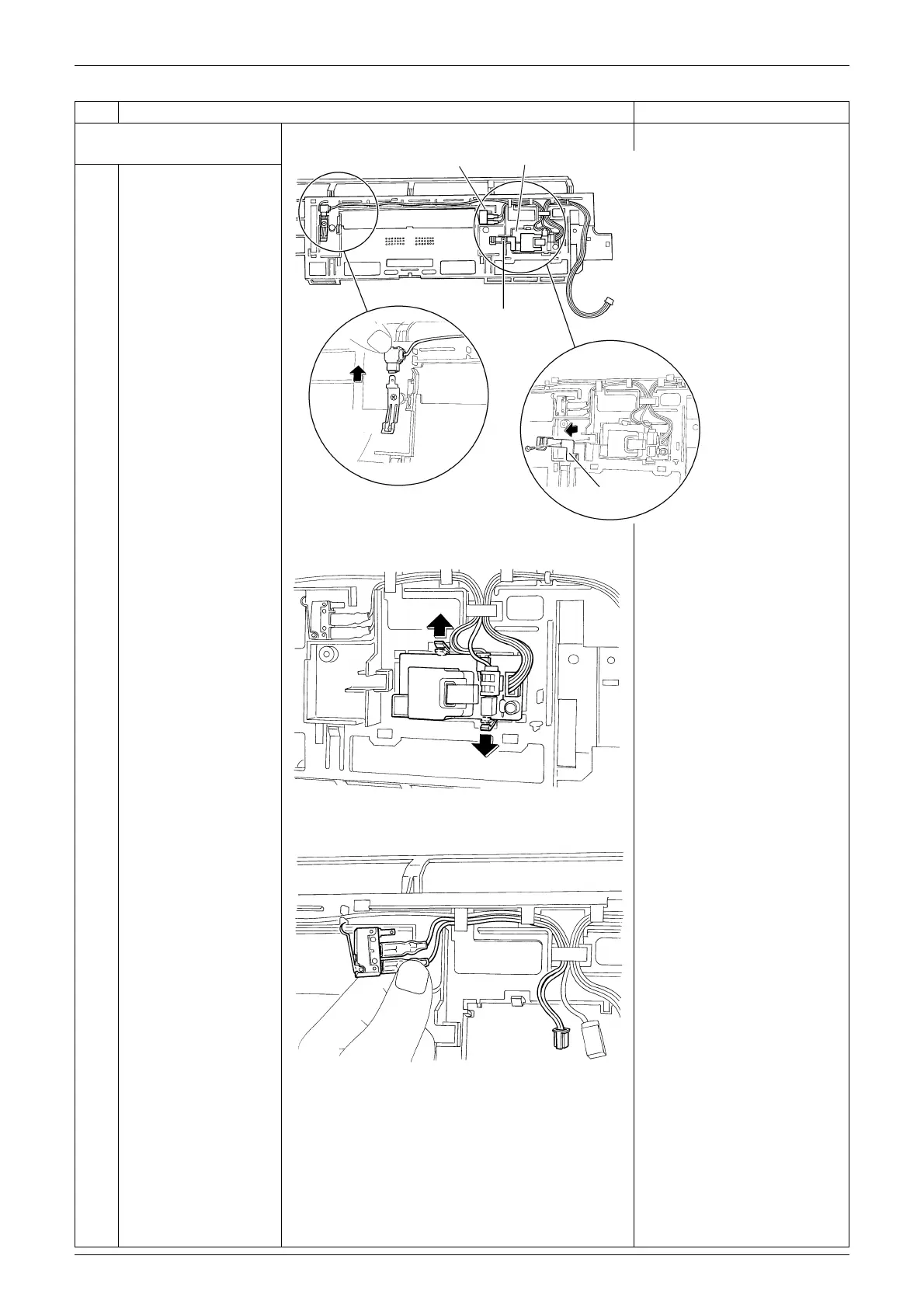

Removal of Streamer Unit Si04-756
48 Removal Procedure
4. Remove the streamer unit
PCB.
1
Remove the screw of
the electrode plate with
a precise screwdriver.
2
Unfasten the 2 hooks
and remove the
streamer unit PCB.
3
Disconnect the
connector and remove
the limit switch.
Step Procedure Points
(R13978)
Limit switch Streamer unit PCB
Electrode plate
Screw
(R5785)
(R5786)
