SiBE01-503 Outdoor Unit
Removal Procedure 95
2

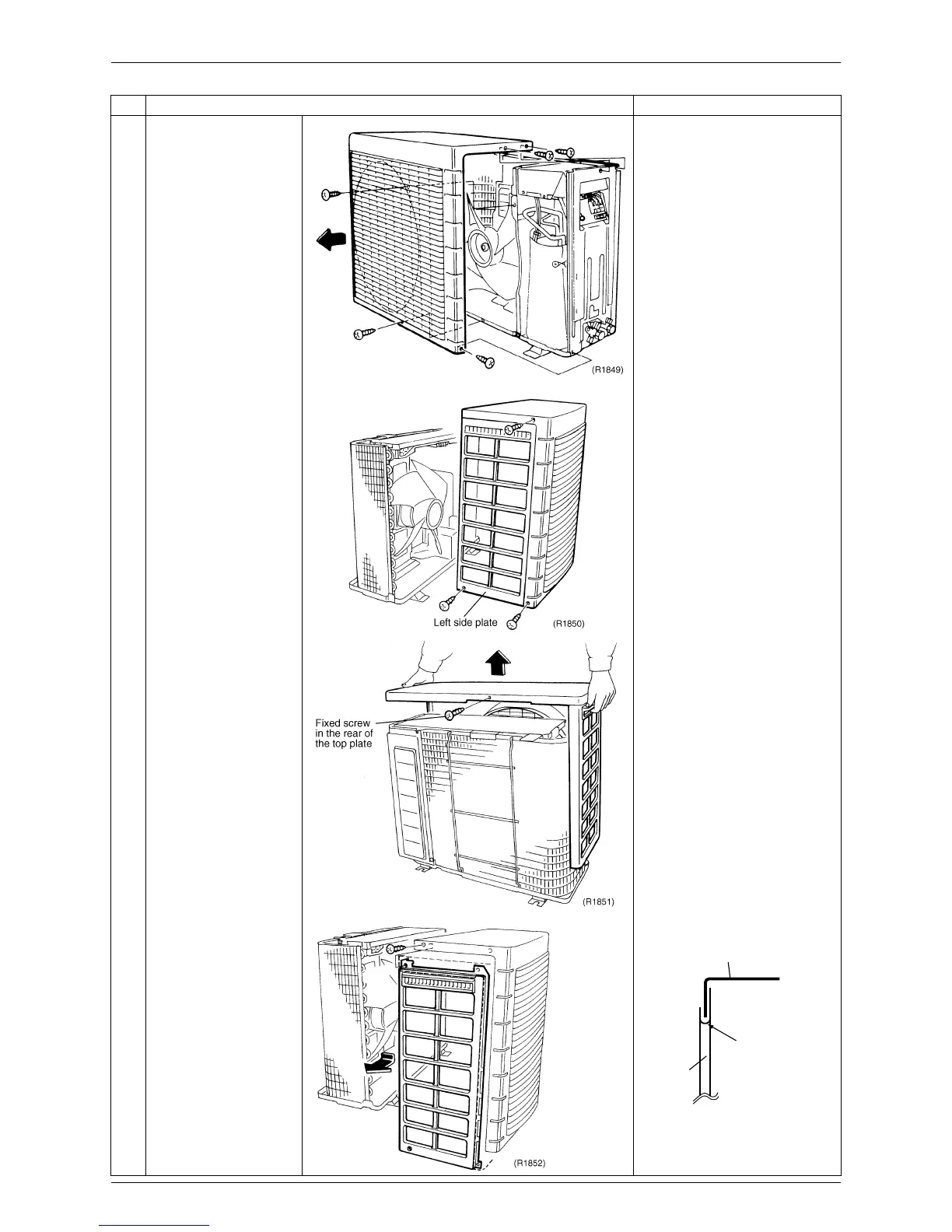

The top plate and the
front plate are
constructed in a
monoblock. Remove
the three screws at the
right side and the two
screws at the front
plate.
3
Remove the three
screws at the left side.
4
Remove the one fixed
screw in the rear of the
top plate. Once lift the
top plate and then
remove it forward.

The left side plate and the
bellmouth can be removed
all at once.

When restoring the top plate,
move it horizontally and get
it down for the easy work.
5
The front plate and the
left side plate can be
removed when the one
fixed screw is removed.

Sectional view at the front.
Step
Procedure Points
Top plate
Left side
plate
the top plate edge is
gotten into this groove.
(R1853)
