SiBE01-503 Others
Others 107

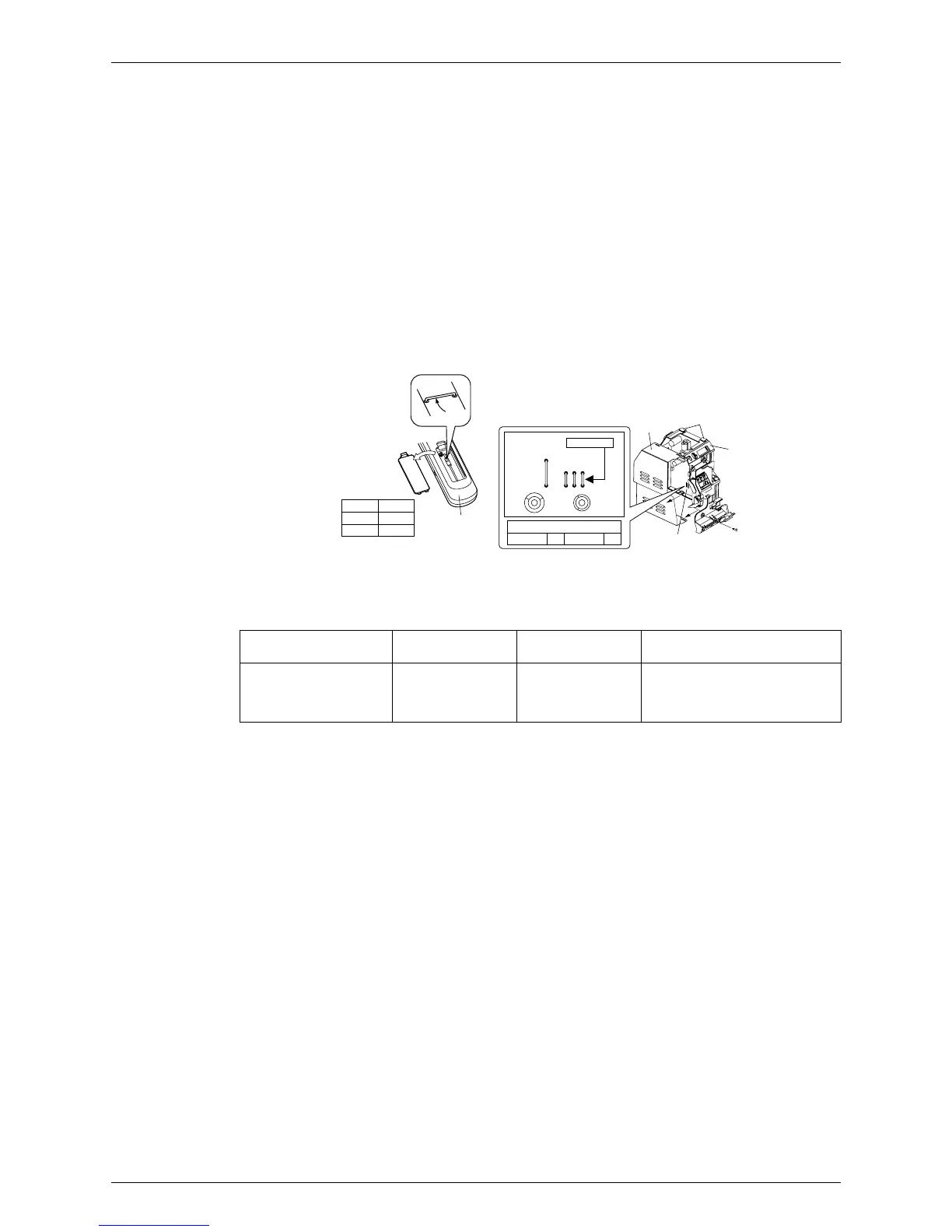

1.3 Jumper Settings
1.3.1 When Two Units are Installed in One Room
How to set the different addresses.
When two indoor units are installed in one room, the two wireless remote controllers can be
set for different addresses.
PCB in the indoor unit
Remove the front panel.
Remove the electrical parts box (1-screw).
Slide the metallic cover to remove it. (4-claws on the electrical parts box.)
Cut the jumper JA on PCB.
Wireless remote controller
Cut the jumper J4.
1.3.2 Jumper Setting
(R4758)
AddressJ4
CUT
EXIST
1
2
Metallic
cover
PCB
Electric
parts box
Claws (4 points)
Wireless
remote
controller
J4
CUT 2
ADDRESS: JA
EXIST 1
JA
JC
C1
C31
J30
JP11
ADDRESS
Jumper
(On indoor control PCB)
Function When connected
(factory set)
When cut
JC Power failure
recovery function
Auto re-start Unit does not resume operation
after recovering from a power
failure. Timer ON-OFF settings
are cleared.
To Next Page
