SiBE01-503 Outdoor Unit
Removal Procedure 99

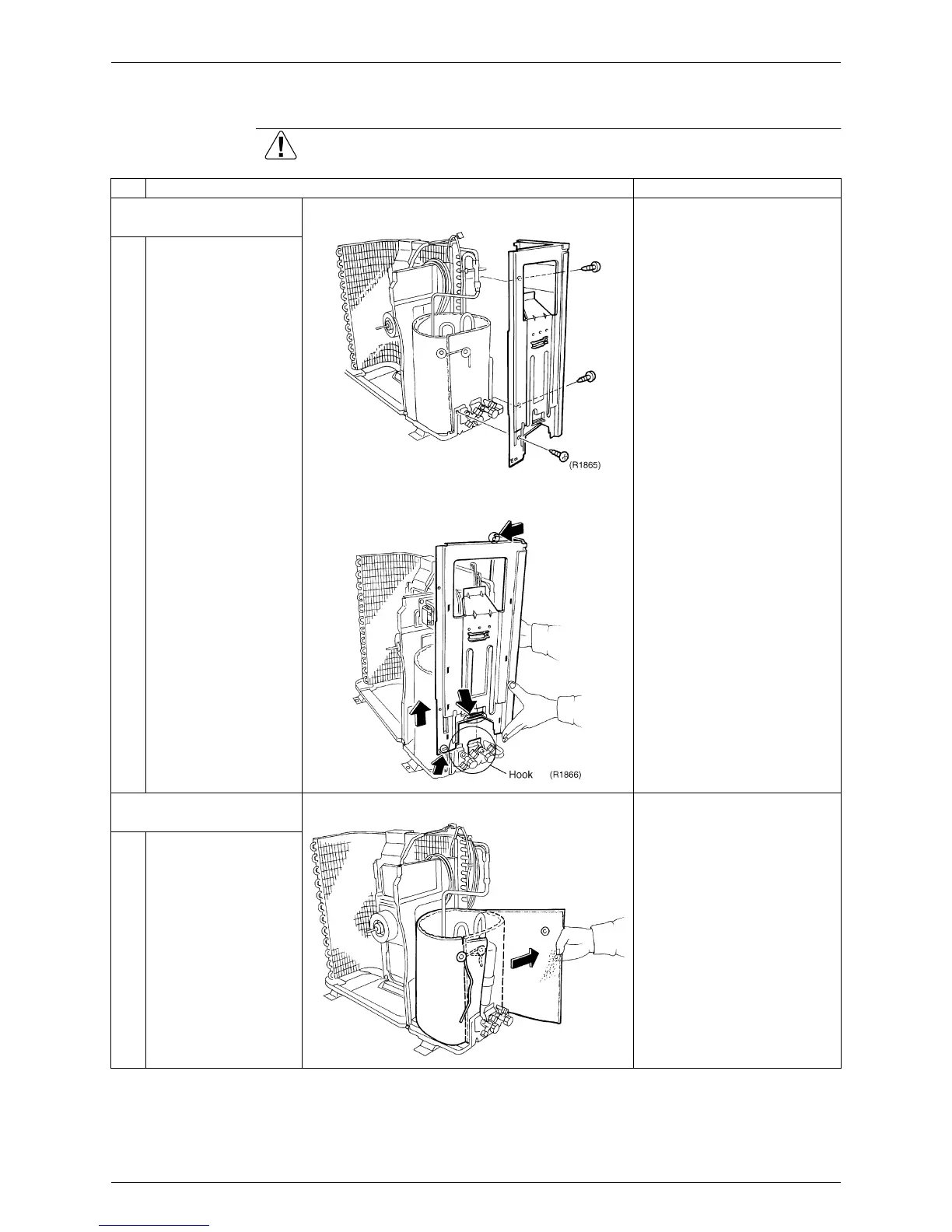

2.5 Removal of Sound Blanket
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1. To remove the right side
plate.
1
Remove the three
screws for removing the
right side plate.
2
Lift the right side plate
to disengage the hooks.

Insert the three hooks for the
restoration.
2. To remove the sound
blanket

Since the sound blanket is
torn easily, remove it
carefully.

When restoring, the sound
blanket should pass the
internal side of the piping.
1
Untie the string of the
sound blanket.
(R4749)
