2.5 Adjusting the Air Flow Direction
12
Adjusting the Air Flow Direction
You can adjust the air flow direction to increase your com-
fort.

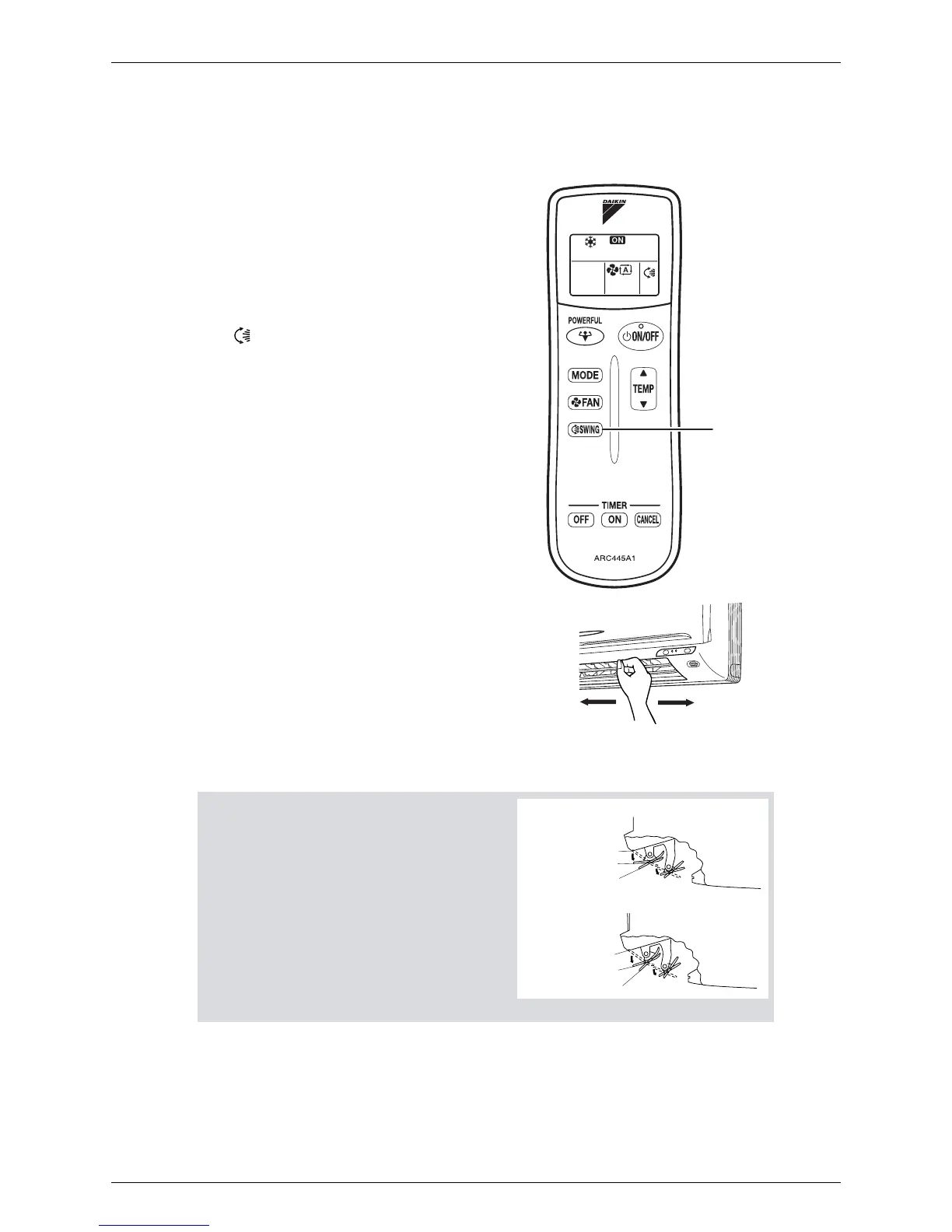

To adjust the horizontal
blades (flaps)
1. Press “SWING button”.
The display will light up and the flaps will
begin to swing.
2. When the flaps have reached the
desired position, press “SWING
button” once more.
The display will go blank.
The flaps will stop moving.
To adjust the vertical
blades (louvers)
Hold the knob and move the louvers.
(You will find a knob on the left-side and the right-side blades.)
Notes on flaps and louvers angles
• When “ SWING button ” is selected, the flaps
swinging range depends on the operation
mode. (See the figure.)
ATTENTION
• Always use a remote controller to adjust the
flaps angle. If you attempt to move it forcibly
with hand when it is swinging, the mechanism
may be broken.
• Be careful when adjusting the louvers. Inside
the air outlet, a fan is rotating at a high speed.
• When changing the operation mode in auto-
matic operation, the swings may move in order
to correct the angle.
1,2
In DRY mode or COOL mode
In HEAT or FAN mode
When stop operation
Upper limit in cooling
Lower limit in cooling
0°
25°
5°
30°
When stop operation
Upper limit in heating
Lower limit in heating
