Troubleshooting SiBE01-503
62 Service Diagnosis
4.5 Thermistor or Related Abnormality (Indoor Unit)
Remote
Controller
Display
C4, C9
Method of
Malfunction
Detection
The temperatures detected by the thermistors are used to determine thermistor errors.
Malfunction
Decision
Conditions
When the thermistor input is more than 4.96 V or less than 0.04 V during compressor
operation
∗
.
∗
(Reference)
Indoor heat exchanger thermistor: above about 100°C (less than 670
Ω)
Room temperature thermistor: above about 70°C (less than 1.7k
Ω
)
Supposed
Causes
Faulty connector connection
Faulty thermistor
Faulty PCB

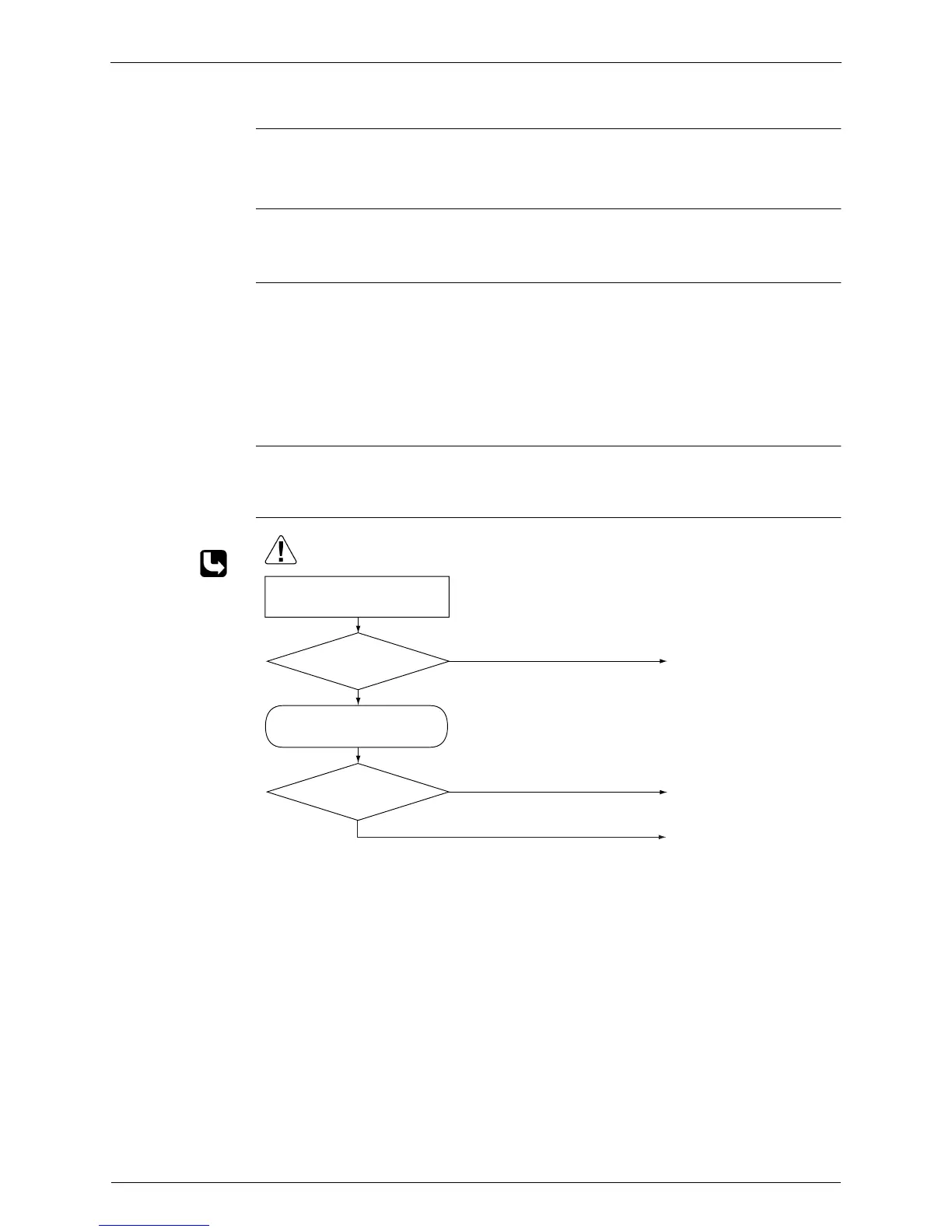

Troubleshooting
Check No.06
Refer to P.67
C4
: Indoor heat exchanger thermistor
C9
: Room temperature thermistor
Check the connector connection.
YES
Correct the connection.
Replace the thermistor.
(Replace the indoor unit PCB.)
Replace the indoor unit PCB.
Is it normal?
Is it normal?
(R4696)
NO
Check No. 06
Thermistor resistance check
YES
NO
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
To Next Page
