Instructions SiBE01-503
32 System Configuration
5
Outdoor Unit
Indoor Unit
1. Air filter
2. Titanium Apatite Photocatalytic
Air-Purifying Filter:
•
These filters are attached to the inside of the air
filters.
3. Air inlet
4. Front panel
5. Panel tab
6. Room temperature sensor:
•
It senses the air temperature around the unit.
7. Display
8. Air outlet
9. Flaps (horizontal blades): (page 12.)
10. Louvres (vertical blades):
• The louvers are inside of the air outlet.
(page 12.)
11. Indoor Unit ON/OFF switch:
•
Push this switch once to start operation.
Push once again to stop it.
•
This switch is useful when the remote controller
is missing.
•
Pressing the switch in an emergency allows
you to select cooling or heating. (page 11.)
•
The operation mode refers to the following
table.
12. Operation lamp (green)
13. TIMER lamp (yellow): (page 14.)
14. Signal receiver:
•
It receives signals from the remote controller.
•
When the unit receives a signal, you will hear a
short beep.
•
Operation start .............beep-beep
•
Settings changed..........beep
•
Operation stop ..............beeeeep

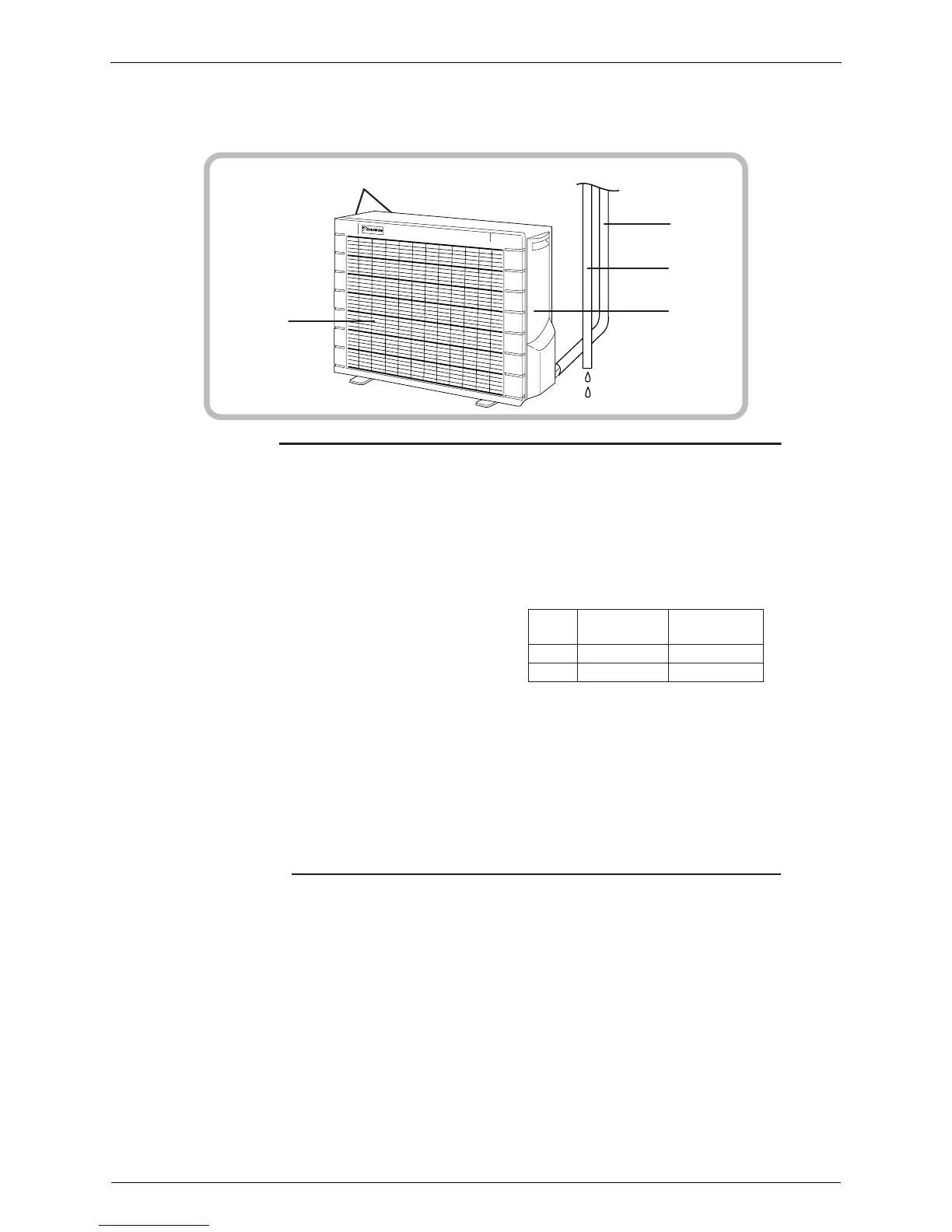

Outdoor Unit
15. Air inlet: (Back and side)
16. Air outlet
17. Refrigerant piping and inter-unit cable
18. Drain hose
19. Earth terminal:
• It is inside of this cover.
17
18
19
16
15
Mode
Temperature
setting
Air flow rate
COOL
22°C
AUTO
HEAT
26°C
AUTO
