Outdoor Unit SiBE01-503
98 Removal Procedure

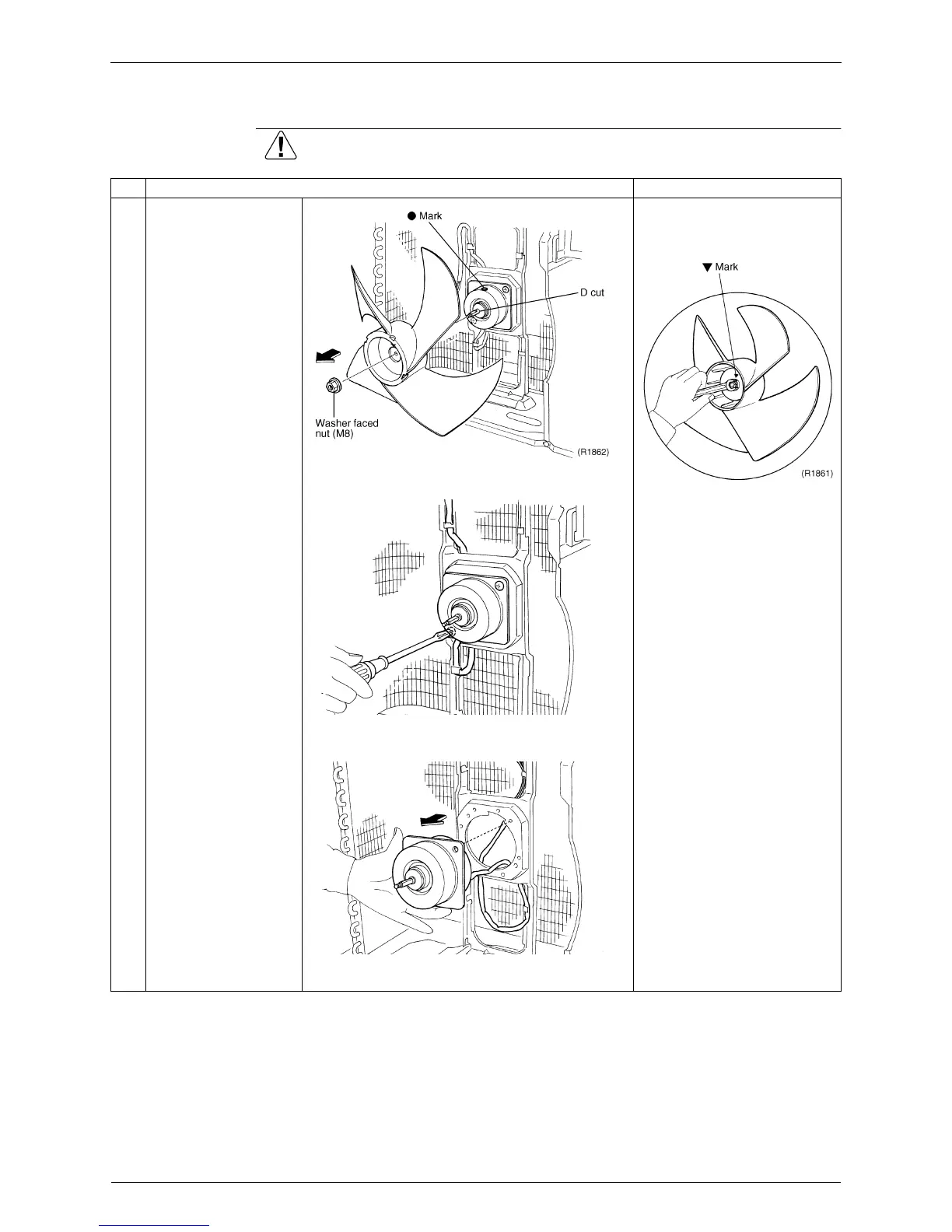

2.4 Removal of Propeller Fan and Fan Motor
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
The propeller fan can
be removed when the
washer faced nut
(M8) is removed.
Be sure to avoid forgetting to
restore the shelter and to
avoid losing or damaging it.
When restoring, match the
mark of the propeller fan with
the D-cut of the motor shaft.
The fan should be restored
so that the mark
z
will be at
upper part of the fan motor.
2
Remove two screws for
removing the fan motor.
The lead wires are
disengaged by raising
the hooks which fix the
lead wires.
3
Remove the fan motor.
(R4747)
(R4748)
To Next Page
