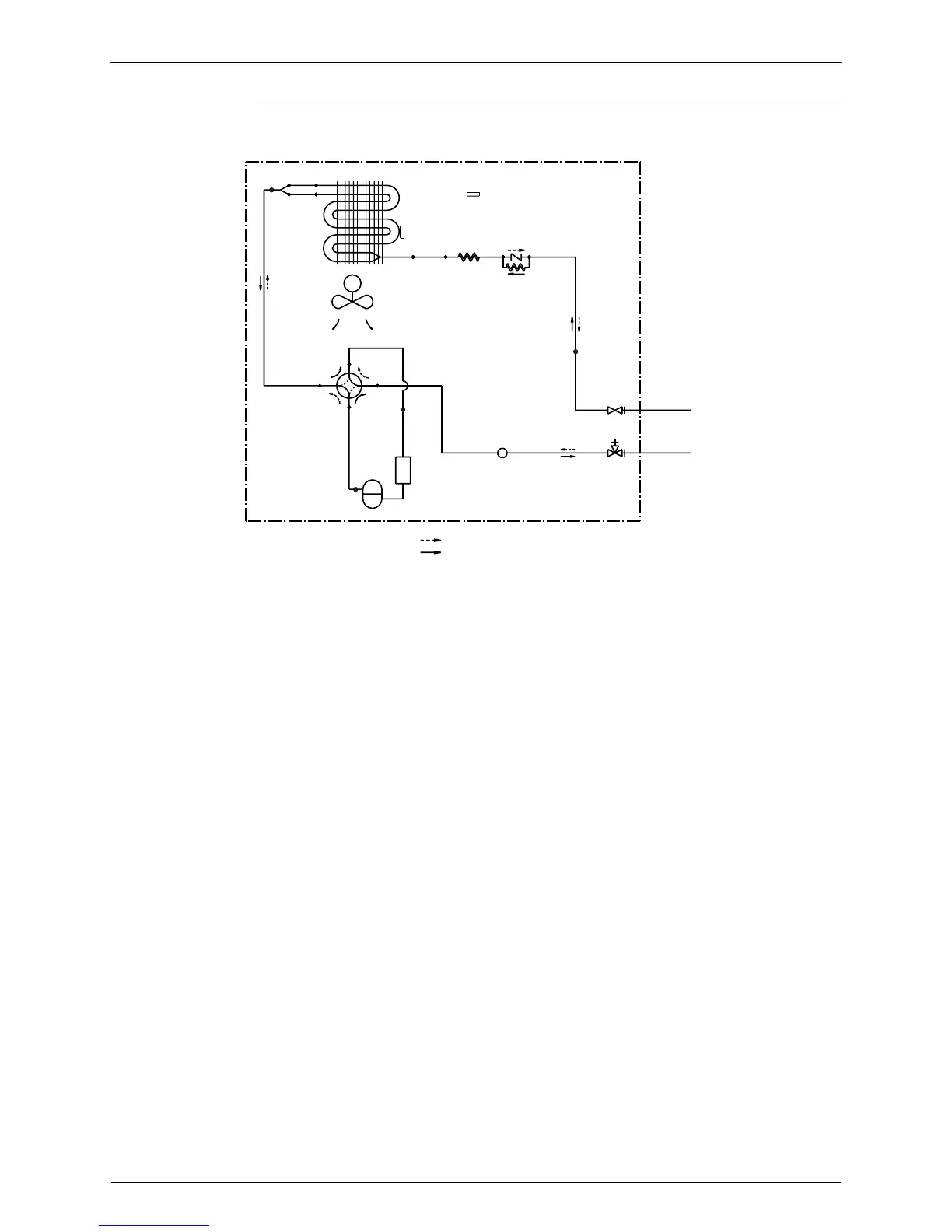

Piping Diagrams SiBE01-503
112 Appendix
ARY35DV2
9. 5CuT
7. 9CuT
7. 9CuT
OUTDOOR UNIT
HEAT EXCHANGER
7. 9CuT
9. 5CuT
7. 9CuT
9. 5CuT
REFRIGERANT FLOW
COOLING
HEATING
9. 5CuT
6. 4CuT6. 4CuT
OUTDOOR TEMPERATURE
THERMISTOR
HEAT
EXCHANGER
THERMISTOR
CAPILLARY
TUBE 1
CAPILLARY TUBE 2
CHECK VALVE
GAS STOP VALVE
WITH SERVICE PORT
LIQUID
STOP VALVE
FIELD PIPING
FIELD PIPING
(6. 4CuT)
(12.7CuT)
PROPELLER FAN
M
FOUR WAY
VALVE
ON : HEATING
COMPRESSOR
ACCUMULATOR
MUFFLER
3D048806
