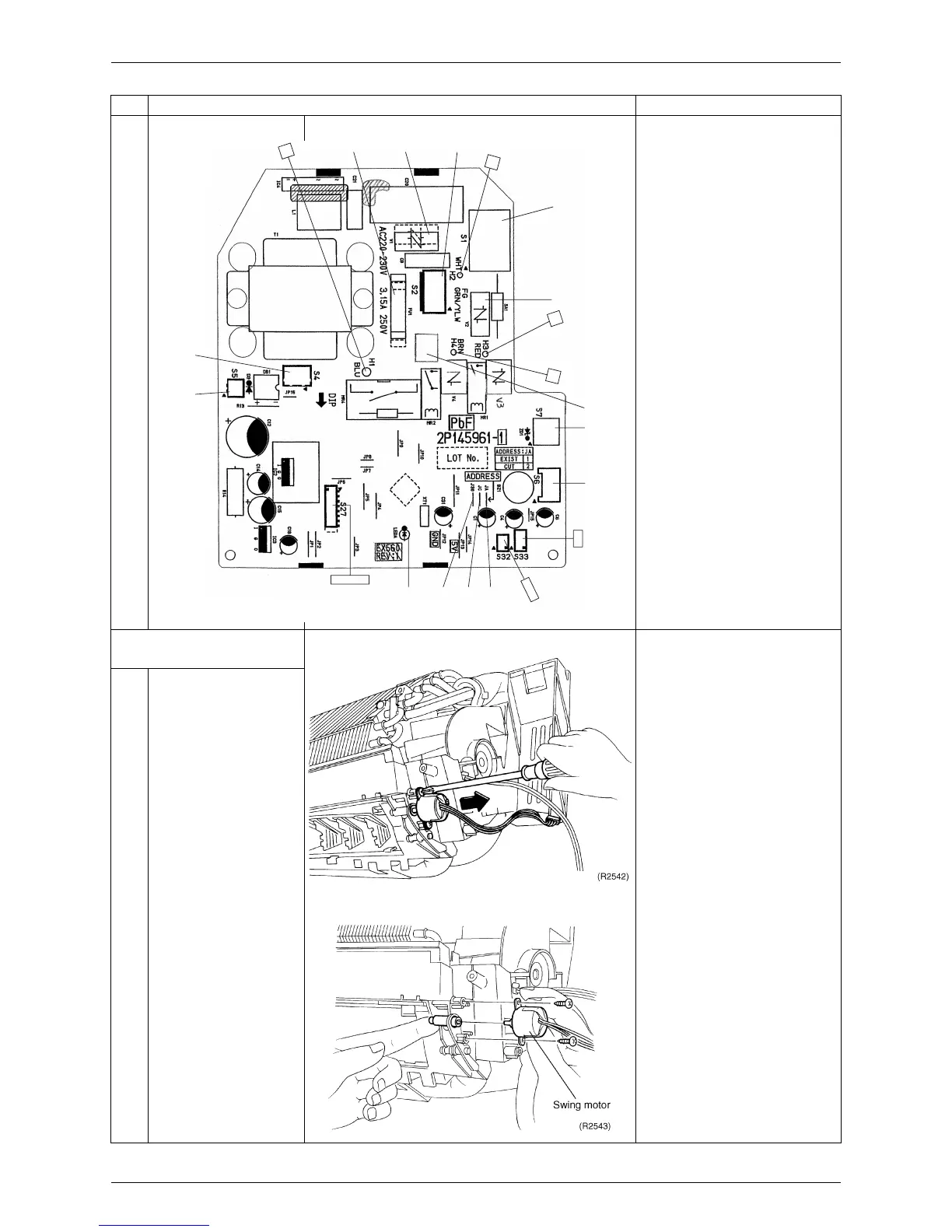

SiBE01-503 Indoor Unit
Removal Procedure 85
6
Control PCB
The control printed circuit
board is integrated with the
power supply printed circuit
board.
3. Remove the swing motor
assembly.
1
To remove swing motor
assembly, remove two
screws.
(Manual adjusting for
the vertical blades.)
Provide a supporter so that
the joint link will not drop off,
in case the horizontal blade
assembly is removed.
Step Procedure Points
S4
S5
S27
LED A J30 JC JA
S32
(R4673)
S33
S6
S7
H5
H4
H3
V2
S1
H2
S2V1FU1
H1
