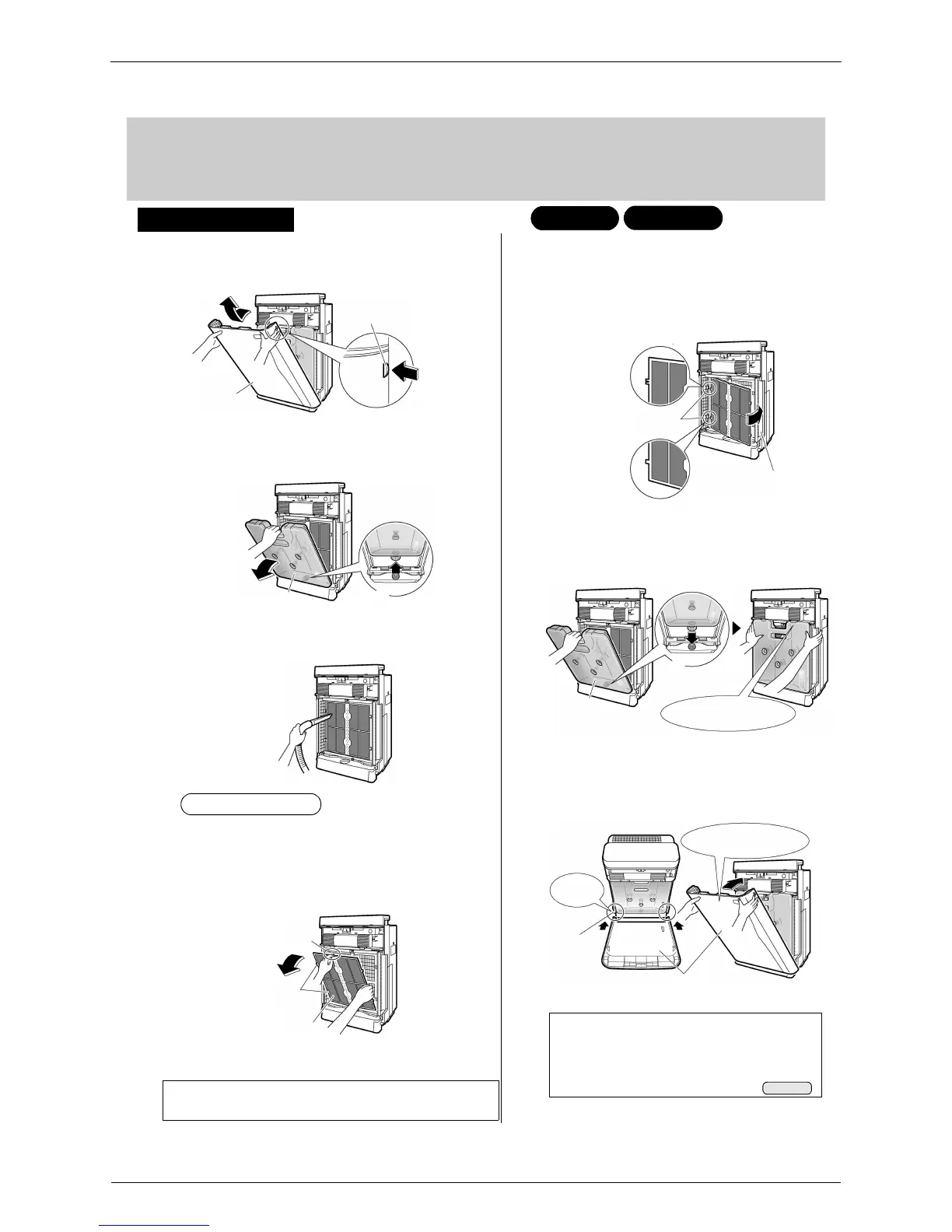

Care & Cleaning
(About once every 2 weeks)
1
Remove the front panel.
5
Restore the pre-filter.
• Push the 2 projections (left and right) inwards, and
pull the front panel upwards and remove.
• Align the tabs (4 locations) on the left and
right of the pre-filter with the holes (4
locations) on the left and right of UNIT1,
and insert into the holes.
Restore the water tank.
• Holding the water tank by the handle, fit the
tank into the hole at the bottom of the main
unit, and press the tank into the main unit.
Restore the front panel.
• Fit the tabs (2 locations) at the bottom of
the panel into the grooves at the bottom of
the main unit, and close the panel.
2
Remove the water tank.
• Holding the water tank by the handle, pull the tank
upwards and out of the unit.
6
3
Clean the pre-filter.
• Suck up dust with a vacuum cleaner.
7
4
Rinse the pre-filter with water.
• Fit your fingers in the recess at the top of the pre-filter, pull the
filter to the front and disengage the tabs (4 locations) on the left
and right of the pre-filter from the holes (4 locations) on the left
and right of UNIT1.
• For stubborn dirt, wash with a soft bristle brush or neutral
liquid detergent, and dry thoroughly in a well-ventilated shade.
Projection
(1 each on left and right)
Front panel
Push
Other tabs
(3 locations)
Upper left tab (1 location)
(The upper left tab is shaped
differently from
the others.)
Holes
(4 on left and right)
UNIT1
Water tank
(1)
Fit here.
(2) Press inward until
hearing clicking sound.
[View from above]
(1)
Fit here.
Front panel
Bottom grooves
(2 locations)
(2) Press inward until
hearing clicking sound.
(1)
Pull
Water tank
(2)
Up
Tabs
(4 on left and right)
Pre-filter
Pull to the front
to remove
For stubborn dirt
If water droplets remain on the pre-filter, the “UNIT1” lamp may
light, therefore dry the pre-filter adequately before using it again.
To correctly restore the front panel, press the front
panel until hearing the clicking sound from the left
and right sides. Unless properly installed, a safety
switch may trip and prevent the unit from starting.
XPage 27.
Pre-filter cleaning
Vacuum cleaner
Rinse with water
