Remove the front panel.
5
Replace the pleated filter with a new filter.
(1) Remove the used pleated filter.
• Release the pleated filter from the
projections (5 locations each) on the
left and right of the deodorizing
catalyst unit (front side).
(2) Take a new pleated filter from the filter
storage area, remove it from its bag and
attach it to the deodorizing catalyst unit.
• Fit the projections (5 locations) on the
left and right faces of the deodorizing
catalyst unit into the holes (5 locations)
on the left and right of the pleated filter.
• Insert the pleated filter underneath the
tabs (4 locations) at the top and bottom
of the deodorizing catalyst unit.
2
Remove the water tank.
3
Removed the UNIT1.
• Holding the UNIT1 by the handle, pull the UNIT1
upwards and out of the unit.
4
Remove the deodorizing catalyst unit.
• Holding the deodorizing catalyst unit by the handle,
pull the deodorizing catalyst unit upwards and out of
the unit.
• If the deodorizing catalyst unit is dirty, suck up dust with a vacuum cleaner. If the plate is dirty, wipe off dirt with
a piece of cloth or tissue moistened with water.
For stubborn dirt, wipe with a cloth moistened with a neutral liquid detergent. (Do not rinse in water.)
Cannot be rinsed in water
REPLACE HUM
RESET
(Push for 2 sec.)
RESET
(Push for 2 sec.)
If the Air-purifying filter lamp lights or flashes
The pleated filter does not need
replacing until the Air-purifying filter
lamp lights or flashes.
XPage 29.
Attach the pleated filter with the white
side facing to the front.
Face the white
side to the front
Deodorizing catalyst unit
Projection
(5 each on left and right)
Pleated filter
Holes
(5 each on left and right)
Top and bottom
tabs (4 locations)
XPage 29.
Handle
(1)
Pull
UNIT1
(2)
Up
Handle
(1)
Pull
Deodorizing catalyst unit
(2)
Up
NOTE
XPage 28.

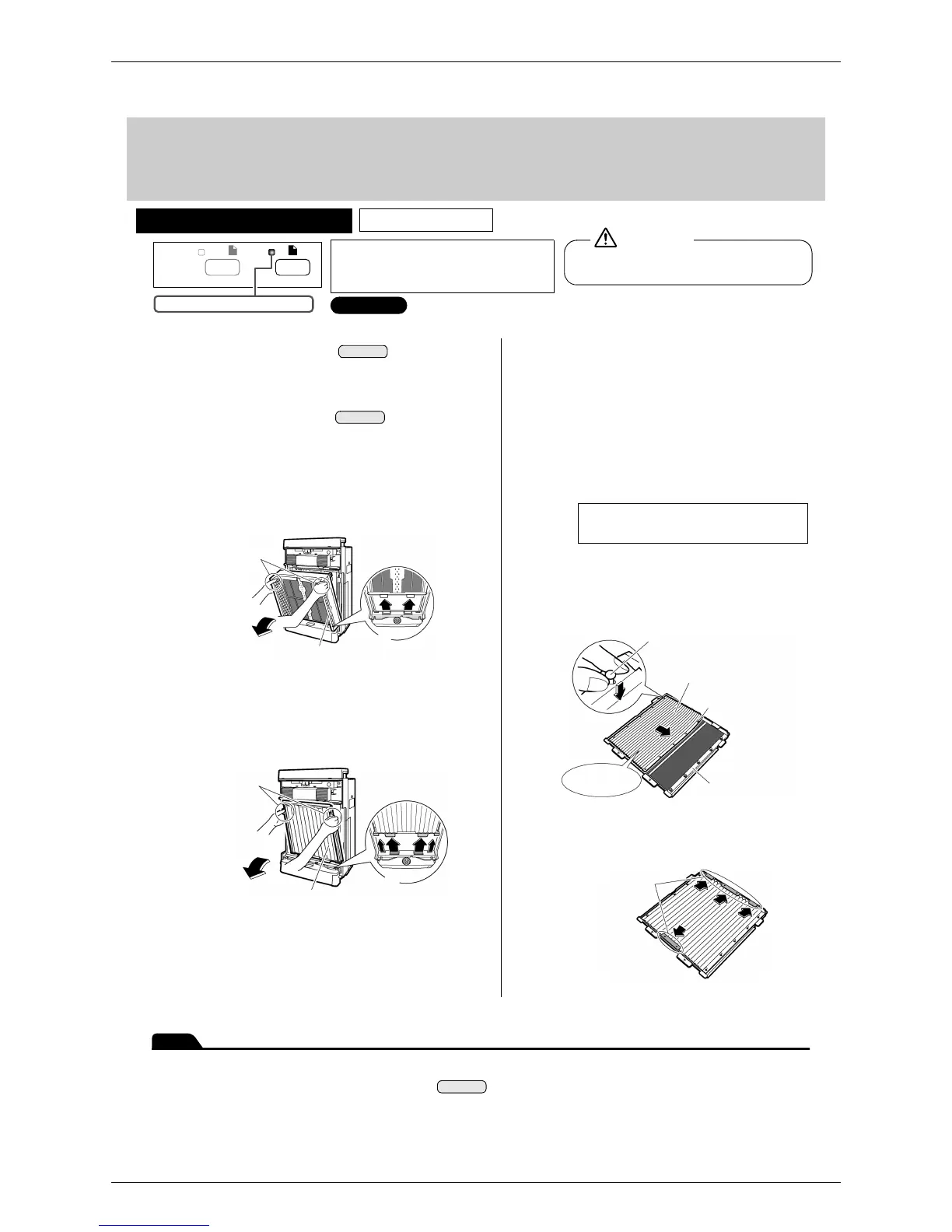

Pleated filter replacement
CAUTION
• Before performing maintenance, stop the unit and
unplug the power supply cord.
Replace
