SiBE81-909 Removal Procedure
Humidifying Air Purifier 81

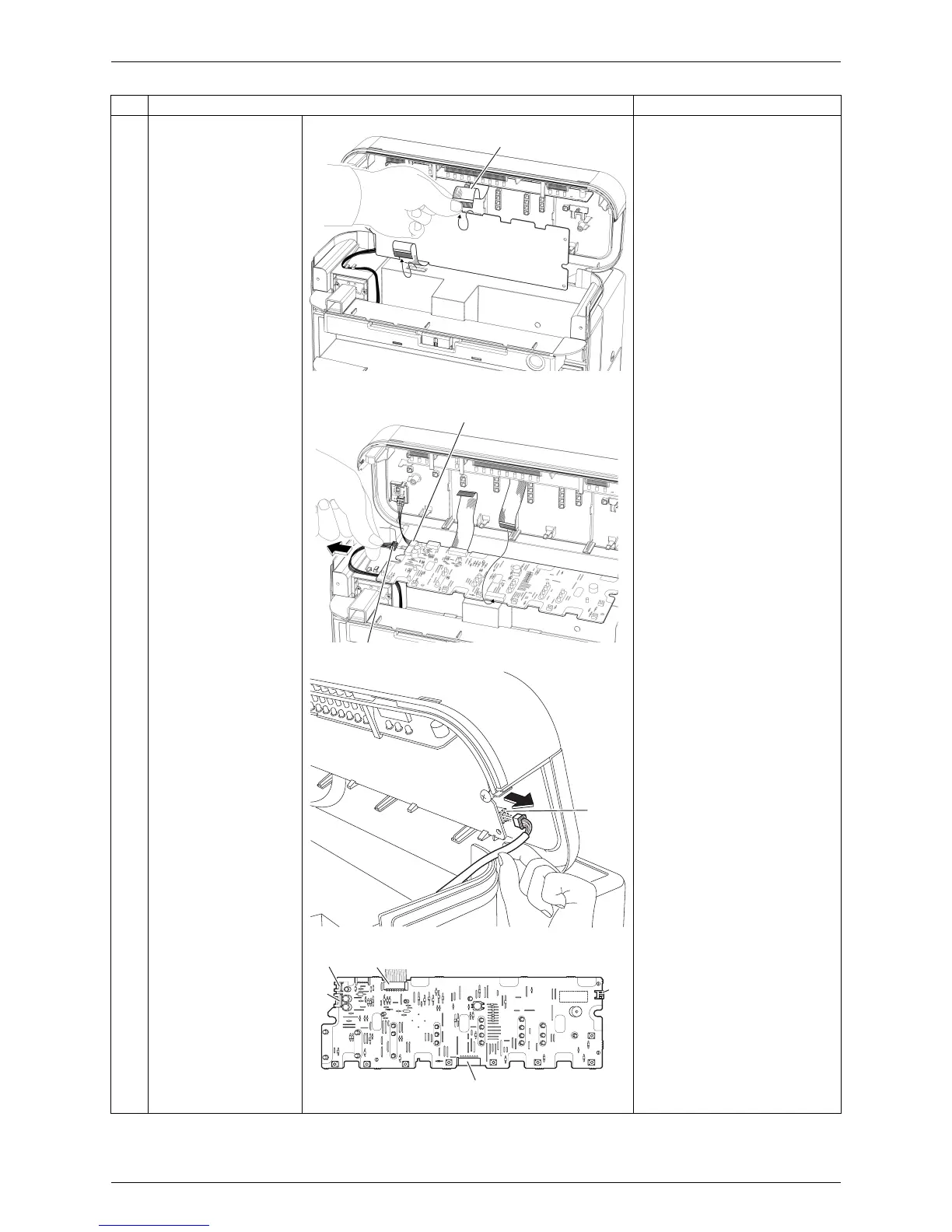

4
Disconnect the linkage
connector from the
display PCB.
5
Turn the operation
PCB.
Disconnect the
connector for the dust
sensor [S1].
6
Disconnect the
connector for the
humidity sensor [S3].
7
Disconnect the
connector for Signal
receiver [S4].
8
The figure shows the
operation PCB.
[S1] : Dust sensor
[S3] : Humidity sensor
[S4] : Signal receiver
[S128] : Connector for power
supply / control PCB
[S118]
[S129] : Connector for display
PCB
[S400]
Step Procedure Points
(R9818)
Linkage connector
(R9819)
[S3]
[S1]
(R9770)
[S4]
(R9771)
[S128]
[S3]
[S1]
[S4]
[S129]
