www.DaikinApplied.com 89 IM 1267-7 • PRECISELINE AIR HANDLER

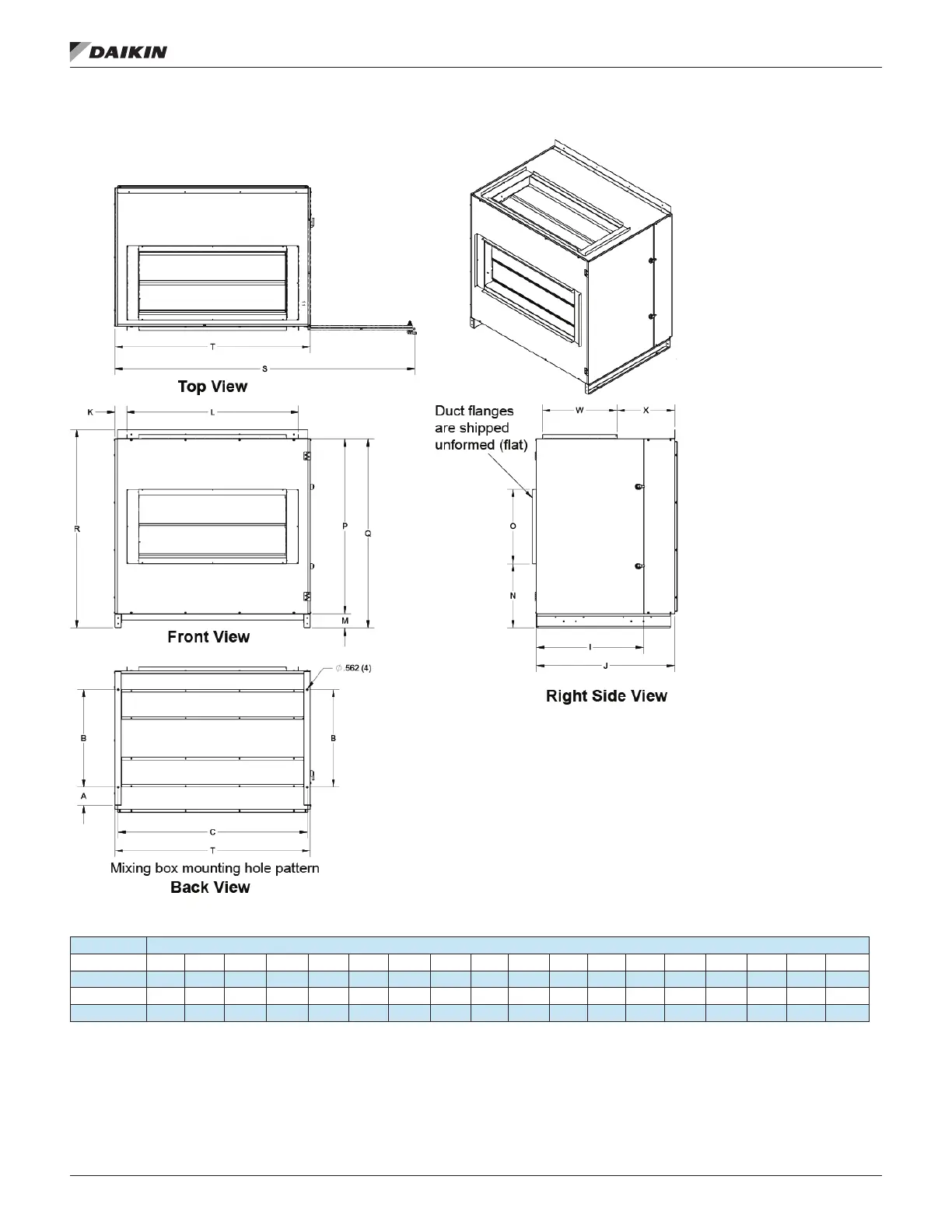

Figure 97: Vertical Mixing Box - Top and End Damper. Sizes 030-050 - Side Filter Access.
Table 63: Mixing Box Dimension Letter Reference

    I J K  M N  P   S T  
SIZE 30 5.5 24 42.5 44 26.31 33 2.87 38.27 3.5 9.82 18.37 31 34.5 36.76 70.12 34 18.37 14.19
SIZE 40 5.5 24 46.5 48 26.31 33 2.87 42.31 3.5 11.82 18.37 35 38.5 40.76 74.12 34 18.37 14.19
SIZE 50 5.5 24 46.5 48 26.31 33 2.87 42.31 3.5 15.82 18.37 43 46.5 48.76 74.12 34 18.37 14.19
