Dalsa Spyder3 SG-11-01k40-00-R - Page 11

Spyder3 GigE Vision User’s Manual
DALSA 03-032-20027-02
11

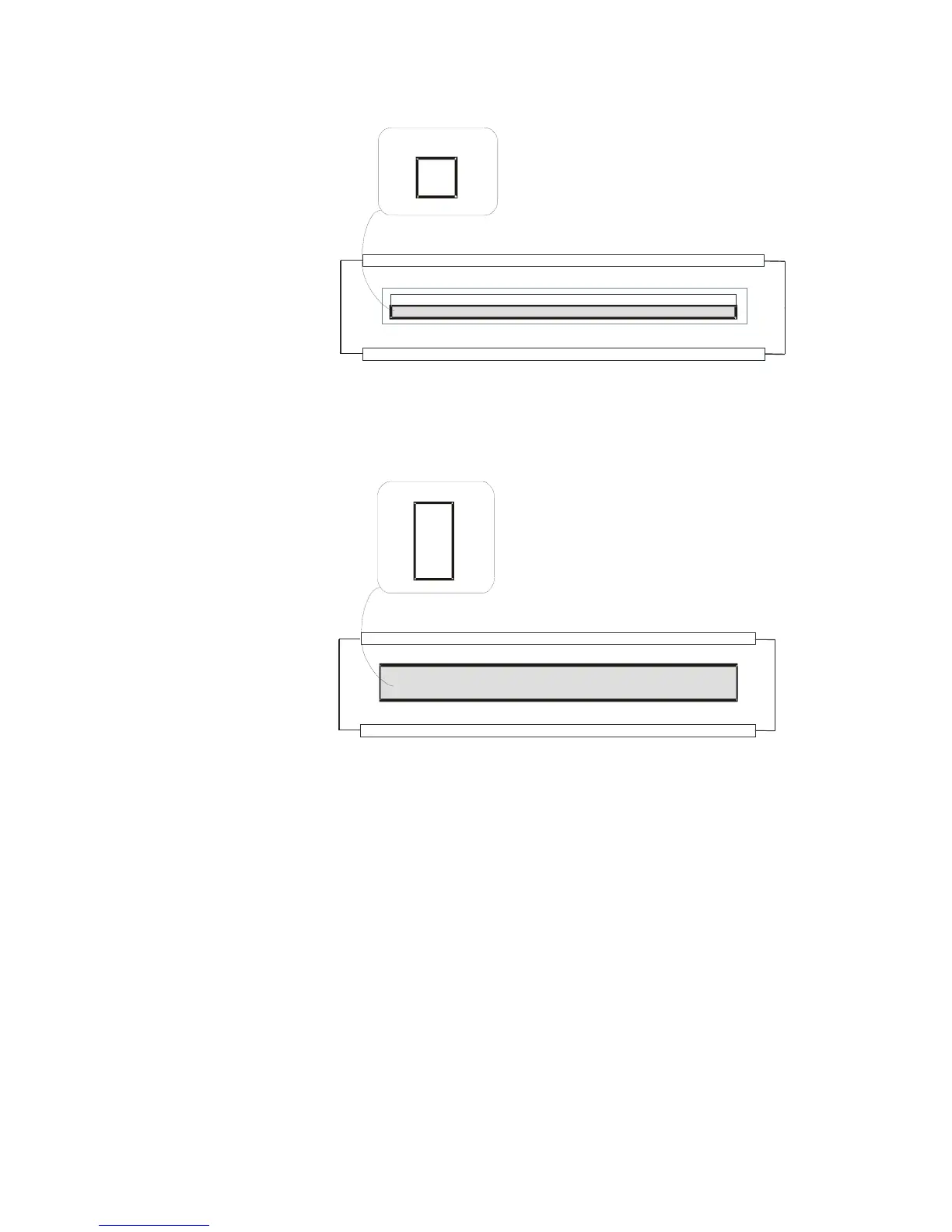

CCDReadoutShiftRegister
CCDReadoutShiftRegister
Sensor2(14μmx14μmOR10μmx10μm)
Sensor1(14μmx14μmOR10μmx10μm)
14/10μm
Pixel DetailPixel Detail
14/10μm
Figure 5: Tall Pixel Mode
In tall pixel mode, the camera uses a 28µm x 14µm pixel (1k and 2k) or a 20µm x 10µm
pixel (4k model) and captures an image two times taller than in high or low sensitivity
modes, resulting in a taller image.
CCDReadoutShiftRegister
CCDReadoutShiftRegister
Sensor1and2(28μmx14μmOR20μmx10μm)
14/10μm
Pixel Detail
28/20μm
