Spyder3 GigE Vision User’s Manual
DALSA 03-032-20027-02
9
Dual line 4.6 4.5 4.6
Single line 9.2 9.3 9.2
4k Dual line 7.0 8.1
4k Single line 14.0 16.1
Saturation output
amplitude
DN 3968±80
DC offset DN 96 160 336
Test conditions unless otherwise noted:
• 12-bit values, Flat Field Correction (FFC) enabled.
• CCD Pixel Rate: 40 MHz per sensor tap
• Line Rate: 5000 Hz
• Nominal Gain setting unless otherwise specified
• Light Source: Broadband Quartz Halogen, 3250k, with 750 nm highpass filter
installed
• Ambient test temperature 25 °C
• Unless specified, all values are referenced at 12 bit
• Exposure mode disabled.
• Unless specified, dual line mode.
Notes
1. PRNU measured at 50% SAT.
1.3 Image Sensor
The camera uses DALSA’s dual line scan sensor. The camera can be configured to read
out in either high or low sensitivity mode, tall pixel mode, and forward or reverse shift
direction.

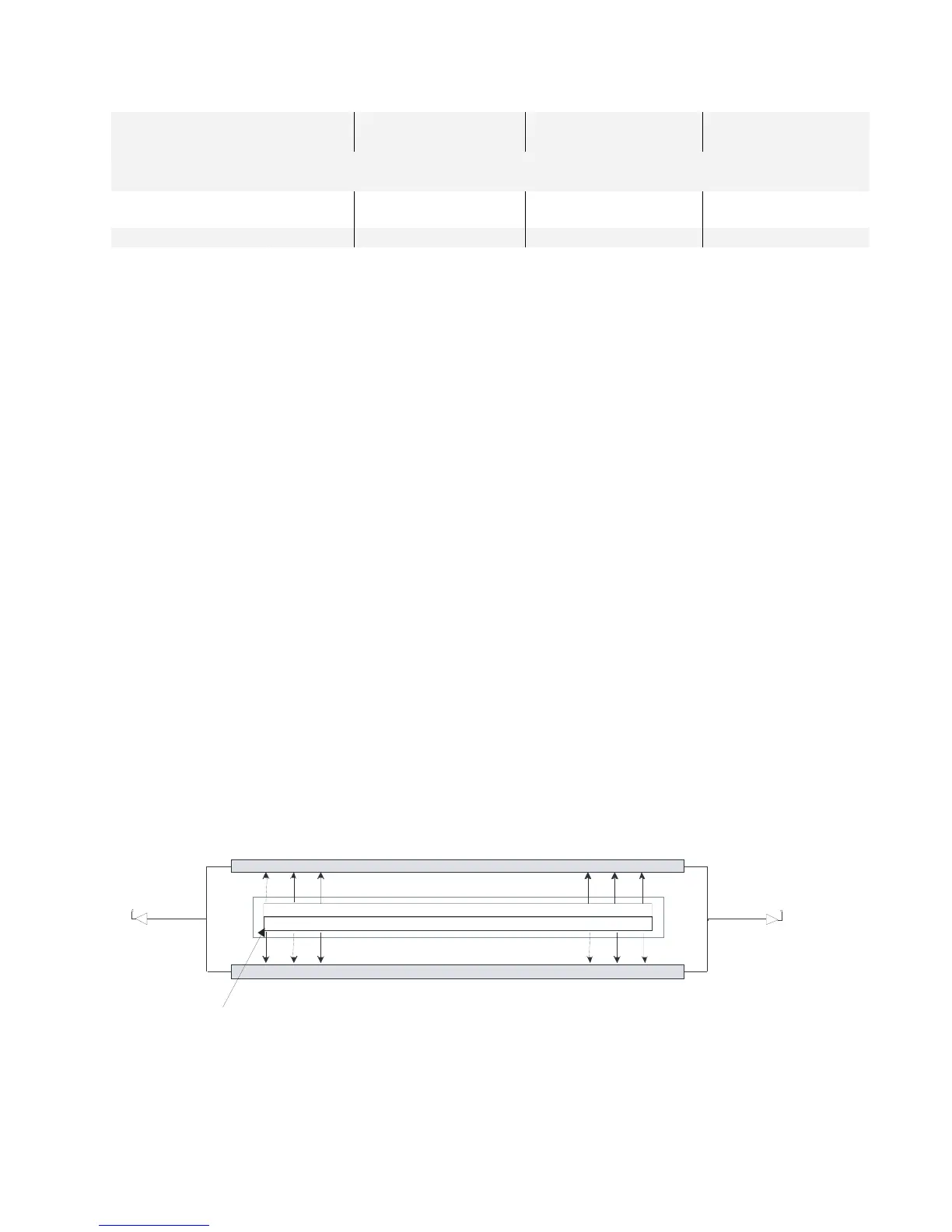

Figure 1: 2 Tap Sensor Block Diagram
Tap2Tap1
CCDReadoutShiftRegist er
CCDReadoutShiftRegister
N
Pixels
N
Pixels
N
=1024,2048,4096
Pixel1,1
Figure 2: 1 Tap Sensor Block Diagram (1k and 2k only))
