DANA SPICER 6000 EHO - Check Points Control Valve

CHECK POINT
53Dana IncorporatedTSM-0238 - 6000 Transmission Service Manual

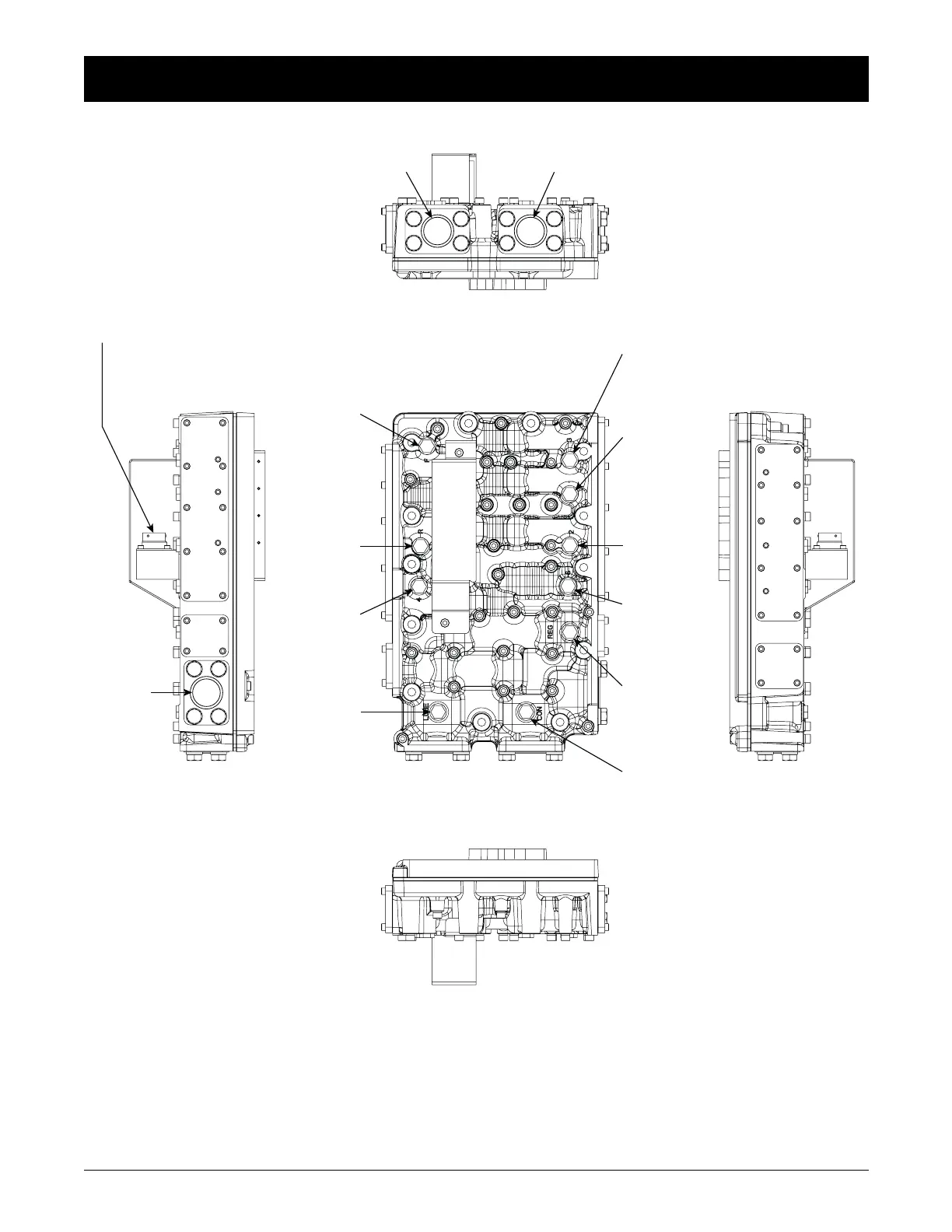

CHECK POINTS CONTROL VALVE
1 - From cooler Ø38 split flange
2 - To converter Ø38 split flange
3 - Port 43 3rd clutch pressure M14 x 1.5
4 - Port 41 1st clutch pressure M14 x 1.5
5 - Port 42 2nd clutch pressure M14 x 1.5
6 - Port 36 Solenoid pressure M14 x 1.5
7 - Port 31 Regulated pressure M14 x 1.5
8 - Port 37 Converter in pressure M14 x 1.5
9 - Port 34 Lube pressure M14 x 1.5
10 - Port 44 4th clutch pressure M14 x 1.5
11 - Port 46 Rev clutch pressure M14 x 1.5
12 - Port 45 Fwd clutch pressure M14 x 1.5
13 - 14 Pole deutz connector HD34-18-14PN mating parts
specs connector deutz HD36-18-14SN contact (female)
deutz 0462-209-16141
14 - From charging pump Ø38 split flange
