END-STOP PLIER SETTING
67Dana IncorporatedTSM-0238 - 6000 Transmission Service Manual

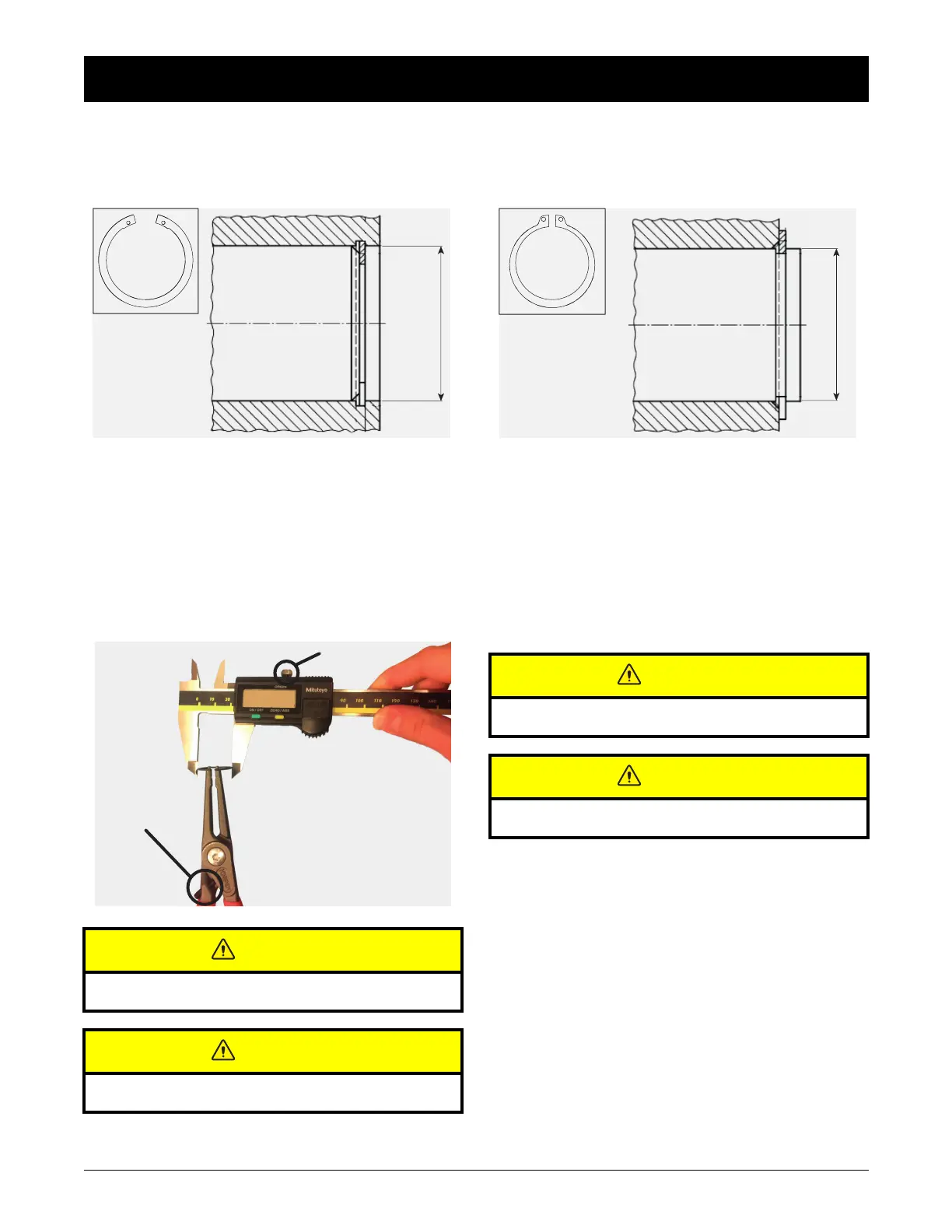

END-STOP PLIER SETTING
RETAINING SNAP RING FOR BORES RETAINING SNAP RING FOR SHAFTS
1 - Measure the bore diameter of circlip (or snapring) "d1";
2 - Pre-set the caliber at value "Dmin" ("Dmin"= "d1" x 0,99);
3 - Fix it with the screw on caliber (see picture - Point A);
4 - Put the snap ring into the plier;
5 - Close it until the end-stop bolt allows;
6 - Adjust the end-bolt in order to match the external diame-
ter of the snap ring with "Dmin" value;
7 - Scrap the snap ring used for the end-stop plier calibra-
tion.
This procedure is aligned with DIN standard. In any case,
DIN 472 regulation prevails.
Snap ring replacement is mandatory if they are removed wi-
thout pre-setted plier.
d1
2019
End-bolt
A
CAUTION
CAUTION
1 - Measure the shaft diameter of circlip (or snapring) "d1";
2 - Pre-set the caliber at value "Dmax" ("Dmax"= "d1" x
1,01);
3 - Fix it with the screw on caliber (see picture - Point A);
4 - Put the snap ring into the plier;
5 - Open it until the end-stop bolt allows:
6 - Adjust the end-bolt in order to match the internal diameter
of the snap ring with "Dmax" value;
7 - Scrap the snap ring used for the end-stop plier calibra-
tion.
This procedure is aligned with DIN standard. In any case,
DIN 471 regulation prevails.
Snap ring replacement is mandatory if they are removed wi-
thout pre-setted plier.
d1
2019
CAUTION
CAUTION
