CLUTCH PACKS ASSEMBLY INTRUCTIONS
Dana Incorporated TSM-0238 - 6000 Transmission Service Manual
CLUTCH PACKS ASSEMBLY INTRUCTIONS

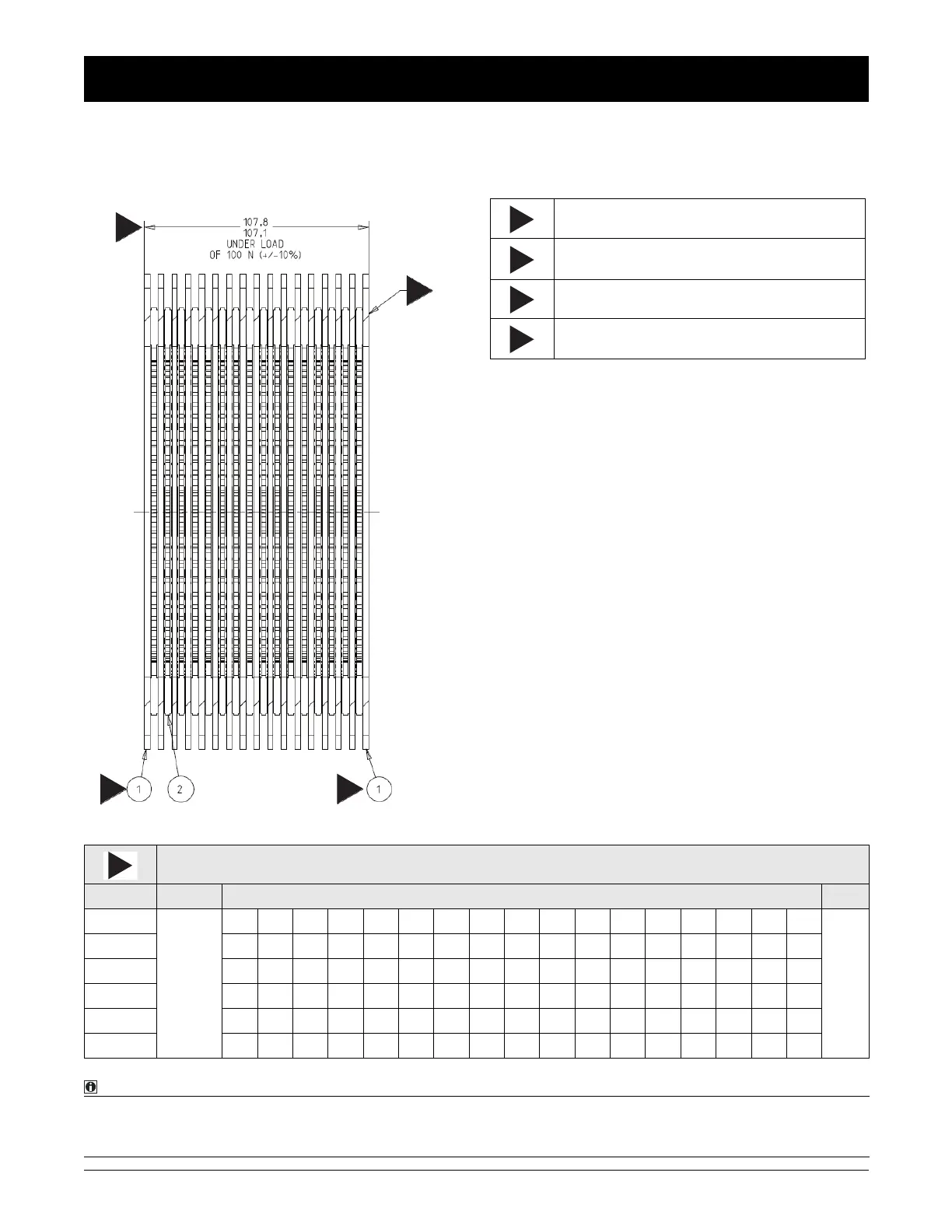

ASSEMBLY INSTRUCTIONS FOR FORWARD AND REVERSE CLUTCH DISCS PACK
1 - Disc-Separator Outer – Qty. 17
2 - Plate-Friction – Qty. 16
1
1
2
4
Start with disc-separator outer alternate with plate-fric-
tion end with disc-separator outer
Adjusting assembly clutch disc pack: replacing disc-
separator outer to reach the overall dimension
The sequence to assemble the shim-separators
Assembly must be packed securely for transport and
must be forseen by partnumber on top
1
1
2
3
1
4
SHIM POSITION
BOTTOM SEPARATOR TOP
QUANTITY 1234567891011121314151617
1 SHIM X
2 SHIMS XX
3 SHIMS XXX
4 SHIMS XXXX
5 SHIMS XXXXX
3
NOTE:
One to five shims could be required to reach the proper thickness of the clutch pack.
Below chart, is indicating the position of the shims within the pack considering the needed quantity.
Shim-separator (s) will replace Disc-separator Outer in the pack.
