CONTROL VALVE ASSEMBLY INSTRUCTIONS
63Dana IncorporatedTSM-0238 - 6000 Transmission Service Manual
CONTROL VALVE ASSEMBLY INSTRUCTIONS
1 - Install adaptor valve on transmission by twelve (12) screws and torque 59 N·m.
2 - Install new gasket and valve body.

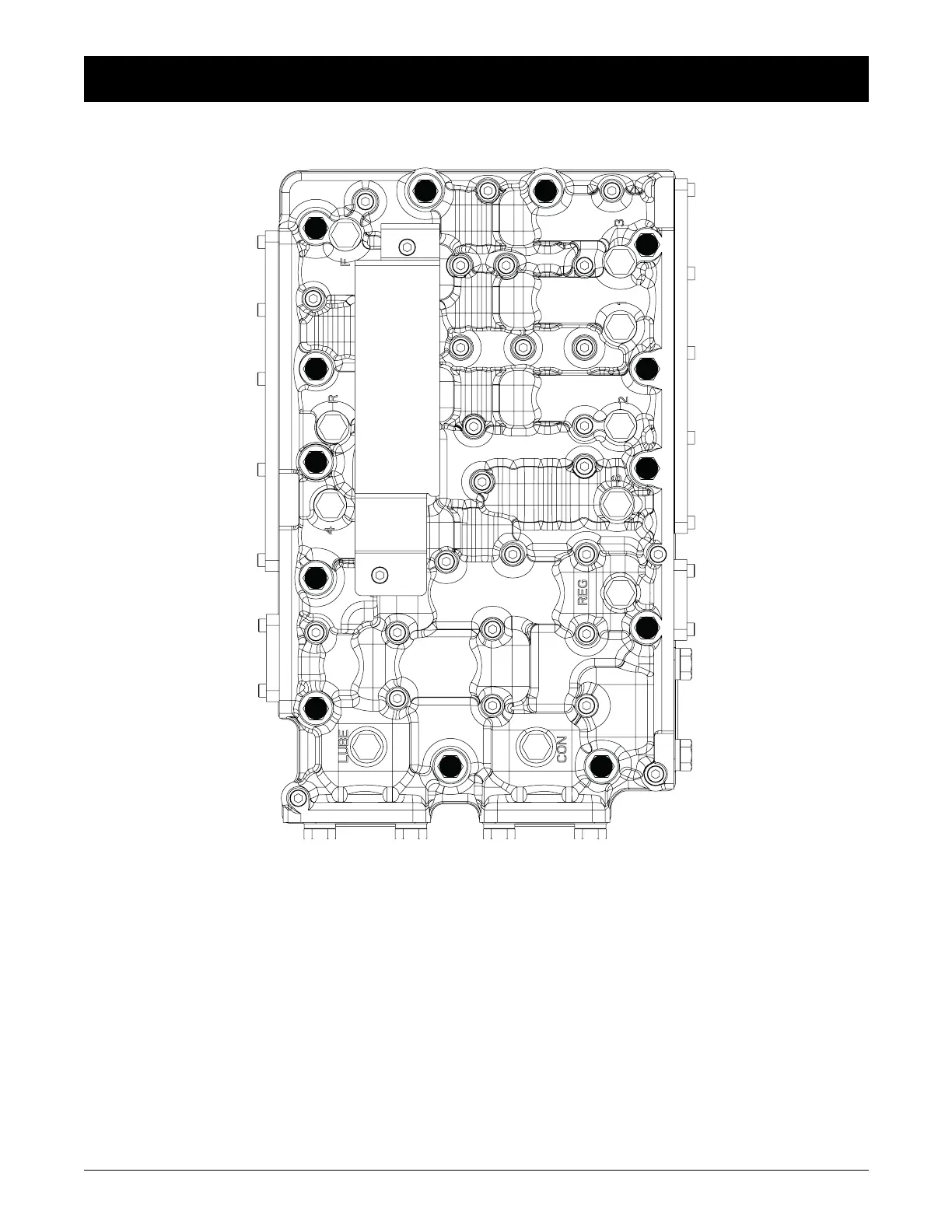

3 - Install thirteen (13) bolts and hand-tighten in the numerical sequence indicated on the drawing
4 - Then torque all thirteen (13) bolts twice to 50–56 N·m in the correct sequence.
8
4
1
5
9
13 10
6
2
3
7
11
12
