INPUT FLIP SWITCH.
When this LED is on, the mic or line signals are directed to the MIX
path of the module and the tape signal is connected to the CHANnel
path of the module.
AUX ARM
The Auxes 5/6 can be assigned to the 24 busses through the ARM
system. The yellow status LED indicates when AUX 5-6 is assigned to
one or more of the digital routing busses
Note: When Aux 5/6 are assigned to the routing busses, it is not possible
to use the busses for anything else
The next two white indicator sections are for CHANnel and MIX.
Since both are identical, we will discuss only the CHANnel section. The
ARM LED lights when the CHANnel (or MIX) path is assigned to one
or more digital routing busses.
DYNamics
When the green DYN LED is on, an optional compressor, limiter, gate,
or other effects / signal processors will be inserted into the signal path.
The intensity of the LED is modulated by the activity of the inserted
dynamics processor.
The optional DYNamics' master controls are the same controls used for
the RECALL/AUTOMATION SECTION
Routing AUX 5 - 6 to the Multitrack Busses.
Step 1: Press ARM on the module you would like to route auxes from.
Step 2: Press the red AUX switch below the buss switches in the master
section
Step 3: Press the Buss switch or switches you would prefer to buss to.
Step 4: From Cinemix's patchbay, patch the group outputs to your
choice of signal processing equipment's inputs.

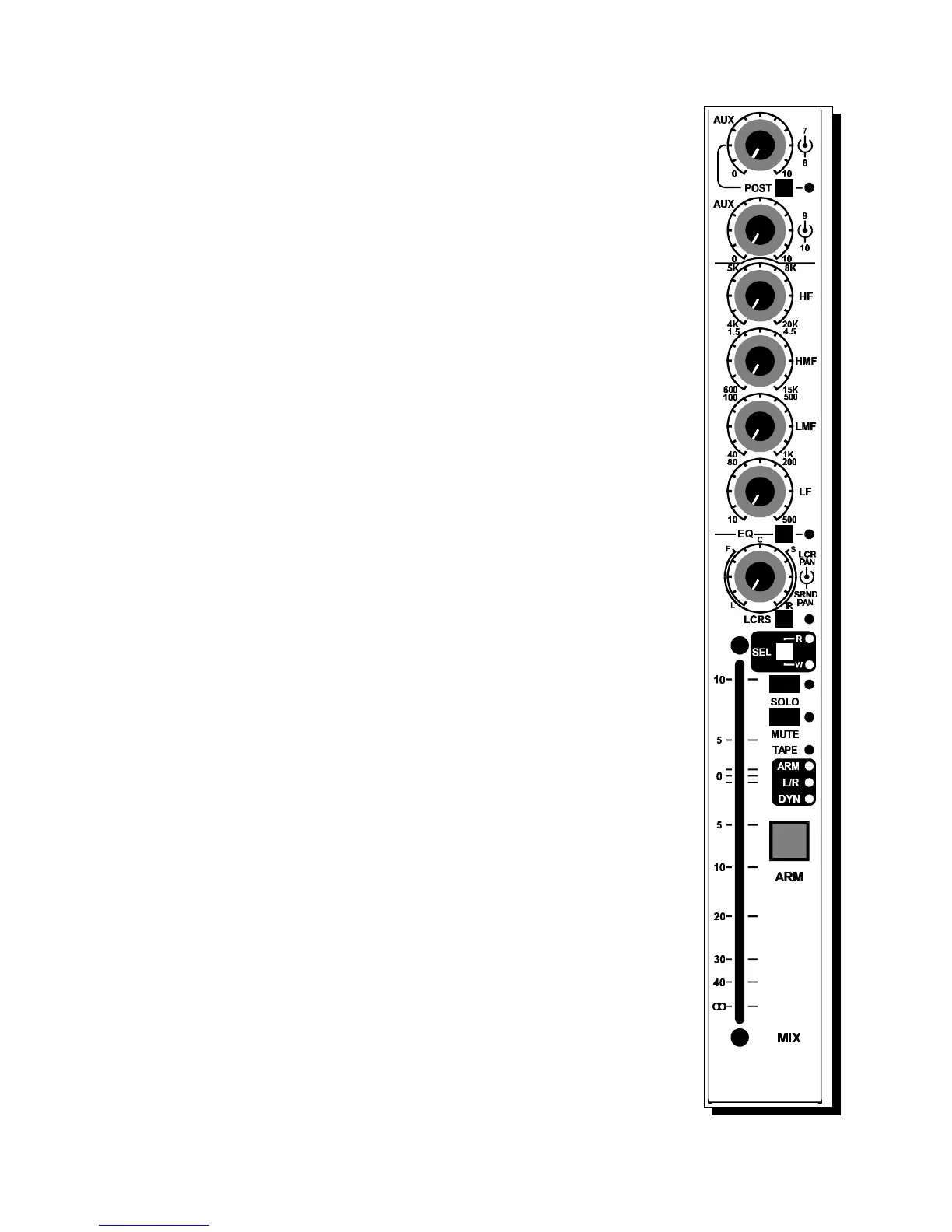

3.12 MIX PATH
The MIX section is the second signal path in the Cinemix dual path
mono module. It has a full 4 band eq, up to 6 aux sends, insertable
LCRS panpot, and Mute & Solo switches. In record mode (non
activated input flip), the MIX section is fed by either the tape return or
group output (a master tape switch selects either one of the above).
AUX SENDS - MIX PATH
Aux 5 & 6 were designed with a level and pan to for instance build up a
stereo mix for headphones. The Auxes 5/6 can be sourced from either
the CHAN section or the MIX section. Pre/post slection is possible and
assigning to the 24 busses is also possible as earlier discussed.
Aux 7 through 10 are dedicated aux sends for the MIX path.
Aux 7/8 can be selected pre/post MIX fader. Aux 9/10 are factory set
post Mix fader but can be jumpered to be pre MIX fader if desired.
Cinemix manual page: 33
