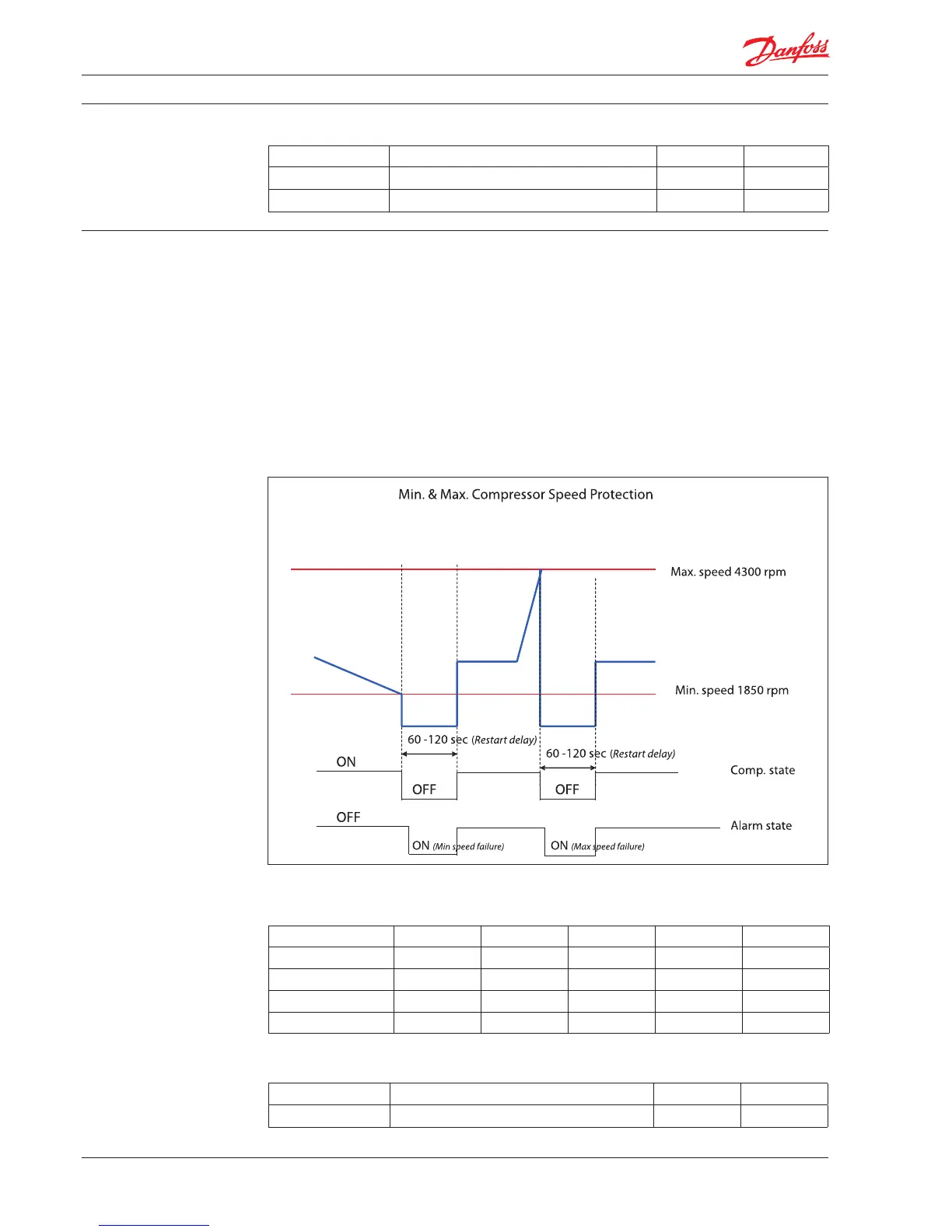

4.2.3 Compressor
The speed and thereby the capacity of the compressor is set using the Requested speed parameter.
Duringstartup,thecompressorcanberunatalowerspeed,Start speed,thanRequestedspeed.
The duration of the period running at Start speed is set using the Start time parameter.
The compressor is protected against operation below minimum speed. Lubrication of the compressor
will be very poor at excessively low speed and therefore low speed operation can lead to destruction
of the compressor. Speed limits are: min 1850 rpm; max speed 4300 rpm.
Ifthecompressorspeedfallsbelowtheminimumorexceedsthemaximumspeed,thecompressorwill
stop and an alarm Min speed failure or Max. speed failure will be sent. The compressor will try to restart
after the set Restart time. The Restart time default is 60 sec.
The fans will continue to run.
Name Default Max value Min value Step Unit
Requested speed 4000 4000 2500 100 rpm
Start delay 4 240 2 1 Seconds
Start speed 2500 4000 2500 100 rpm
Start time 30 600 0 1 Seconds
Settings
Measurements
Name Description Step Unit
Compressor speed Real-time compressor speed(+/-10%) 1 rpm
Measurements
Name Description Step Unit
Cut-in level Calculatedvalue.Cutin=Cutout+Di. 0.1 Volt
Supply voltage Real-time-voltagemeasuredon+&-terminals 0.1 Volt
