Pr.15 Jog Accel. / Decel. Time
(Can be programmed while the drive is running.)
Factory Setting d1.0 Sec
Units 0.1 Sec
Parameter value d0.1 - d600.0 Sec
This parameter, together with the Jog Frequency (Pr.16), determines the time required
for the AC drive to ramp from 0 Hz to the Jog Frequency, or the time required to ramp
from the Jog Frequency to 0 Hz.
Pr.16 Jog Frequency
(Can be programmed while the drive is running.)
Factory Setting d6.00 Hz
Units 0.1 Hz
Parameter value d0.1 - d400.0 Hz
Jog Frequency can be controlled through a Multi-Function Input Terminal: M1 to M5
(See Pr.38 - pr.42). Jog starts from the Minimum Output Frequency (Pr.08) accelerating
to the Jog Frequency (Pr.16) in the time interval set by the Accel./Decel. Time (Pr.15).
Pr.17, Pr.18, Pr.19, Pr.20, Pr.21, Pr.22, Pr.23 – Multi-speed Operation
Multi-Step Speeds 1, 2, 3, 4, 5, 6, 7
(Can be programmed while the drive is running.)
Factory Setting d0.00 Hz
Units 0.1 Hz
Parameter value d0.1 - d400.0 Hz
Multi-step speed Parameters 17 - 23 in conjunction with Parameters 78, 79, 81 - 87
provide multi-step motion control.

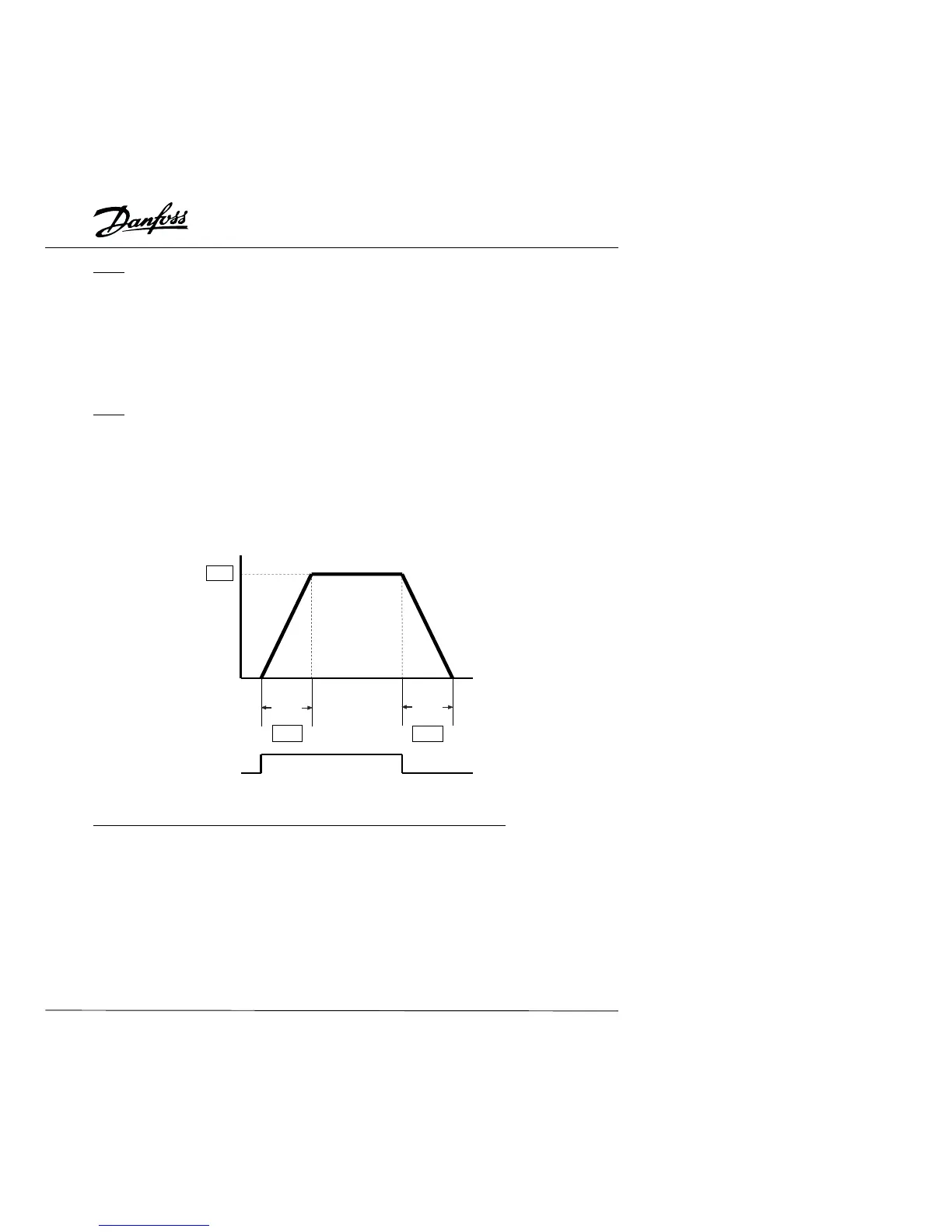

Speed
JOG frequency P16
JOG command
ON
OFF
Decel
Time
Pr.15
Accel
Time
Pr.15
Time
27
