VLT
®
MICRO

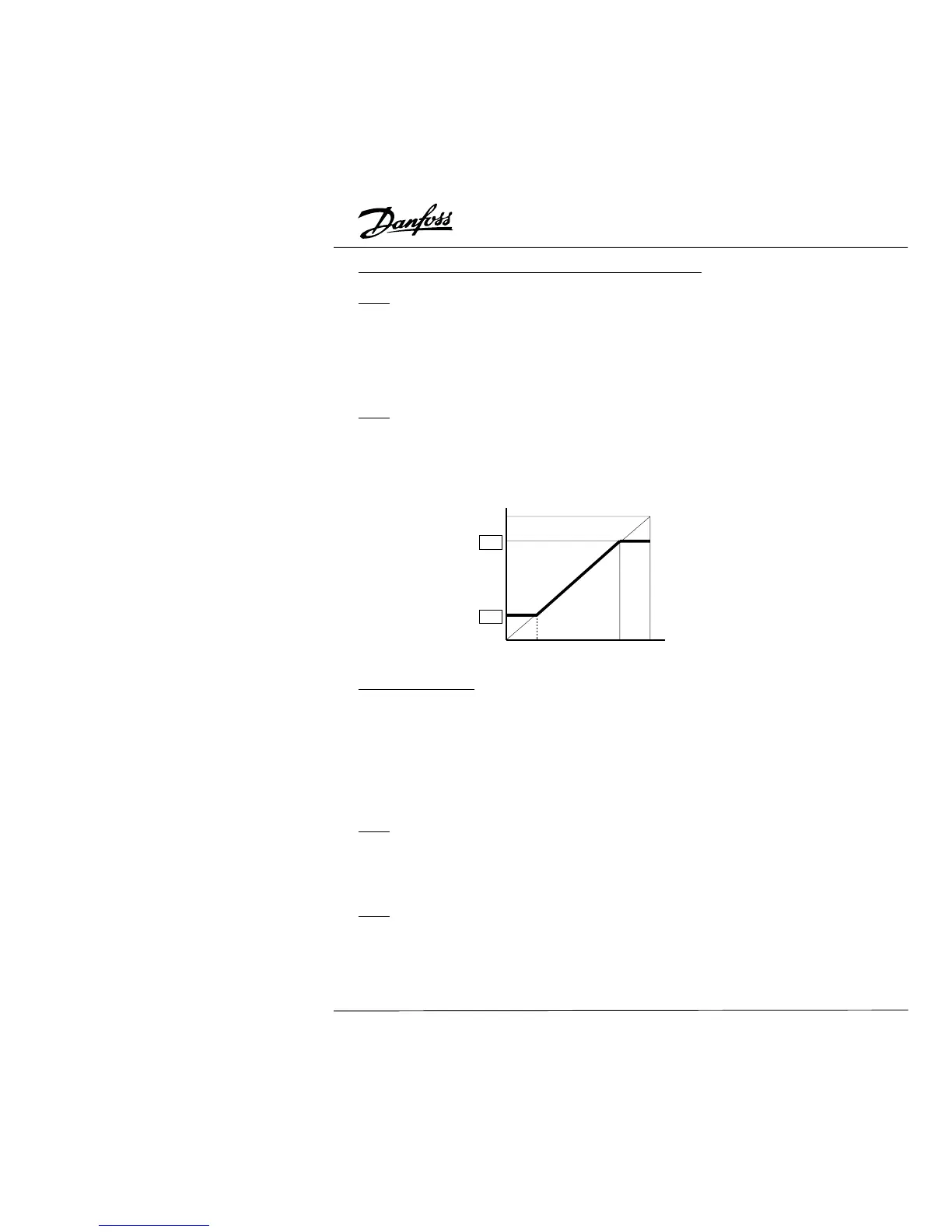

Pr.36, Pr.37 – Reference Frequency: Upper / Lower limit
Pr.36 Reference Frequency Upper Limit
Factory Setting d400.0 Hz
Units 0.1 Hz
Parameter Value d0.1 - d400.0 Hz
This parameter programs the upper limit of the reference frequency in 0.1 Hz
increments.
Pr.37 Reference Frequency Lower Limit
Factory Setting d0.0 Hz
Units 0.1 Hz
Parameter Value d0.1 - d400.0 Hz
Determines the lower limit of the reference frequency in 0.1 Hz increments.
Application Notes:
1. Parameters 36, 37 are provided to prevent damage to the AC motor and applicable
machinery. Under certain conditions a motor can overheat and/or machinery can be
damaged at excessively high speeds.
2. The lower limit for AC drive operation is determined by the greater value of Pr.08
(Minimum Output Frequency) and Pr.37 (Reference Frequency Lower Limit). The
upper limit for AC drive operation is determined by the lesser value of Pr.03
(Maximum Output Frequency and Pr.36 Reference Frequency Upper Limit).
Pr.38 Multi-Function Input Terminals (M0, M1)
Factory Setting d00
Units None
Settings d00 - d02
Pr.39 Multi-Function Input Terminals (M2)
Factory Setting d05
Units None
Settings d03 - d20
Output frequency
Pr.36
Pr.37
Input frequency
32
