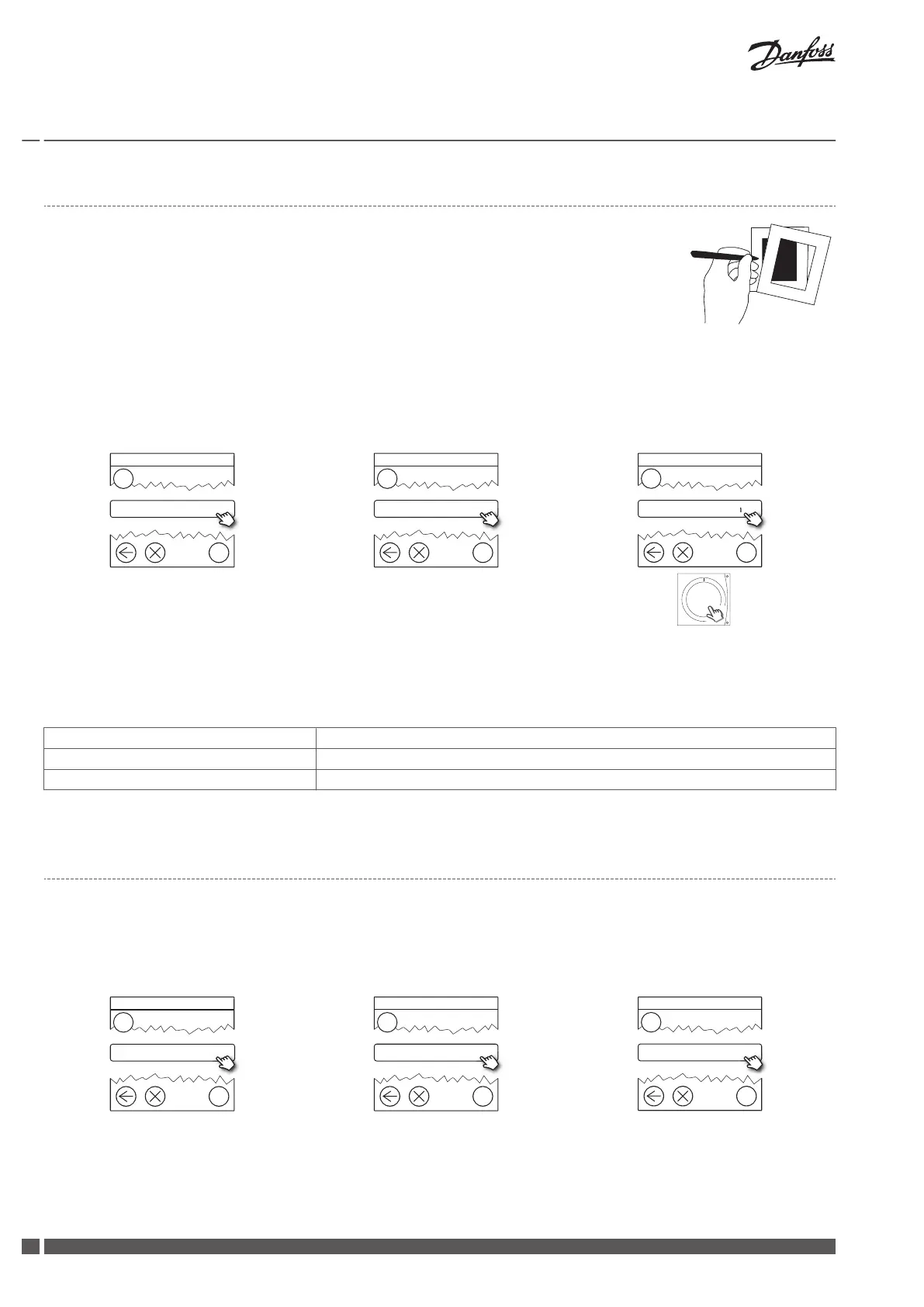

5.2 Connecting the Air Unit to Danfoss Link™ CC, wireless inclusion
▪
Remove the front cover of the Danfoss Link™ CC by gently pulling it off, pull near the
edges of the cover.
▪
Press the SETUP pin for 3 seconds to enter the service area.
Note!
▪
The Air Unit must be added to the network as a service device. For further instructions on the network inclusion, see the installation guide
supplied with the Danfoss Link™ CC.
▪
Add any dedicated repeater units (CF-RU) BEFORE adding the Air Unit to the wireless network.
?
1
Service Options
Rooms and Devices
?
2
Rooms and Devices
Add Service Devices
?
3
Add Service Device
Begin Registration
Click here on the CCM for adding the Air
Unit
Note! During installation, the distance between the Danfoss Link™ CC and the CCM must not exceed 1.5m.
Green LED flashes slowly
CCM module has not yet been connected to the Danfoss Link™ CC
Green LED lights continuously CCM module is now connected to the Danfoss Link™ CC
Red LED flashes slowly 5 times Connection attempt failed
Tab. 2: LED blink patterns on the CCM
5.3
Performing a network test after adding a new device
After finishing installation, perform a network test, to ensure that communication between added devices and the Danfoss Link™ CC is
stable.
Note! Do not perform the network test before the Danfoss Link™ CC is mounted in its final position.
?
1
Service Options
Status and Diagnostics
?
2
Status and Diagnostics
Network
?
3
Wireless Network Status
Start Network Test
At the end of the network test the Danfoss Link™ CC awaits for all battery operated devices to wake up and report. Follow the instruc-
tions given on the screen. If the network test is running smoothly, there will be no need for further interaction. If the network test is
performing slow, the Danfoss Link™ CC guides through troubleshooting and gives usefull tips for speeding up the process.
Installation Guide
Danfoss Air Units
