Danfoss EET Series - Installation; Dimensions

Installation
Dimensions

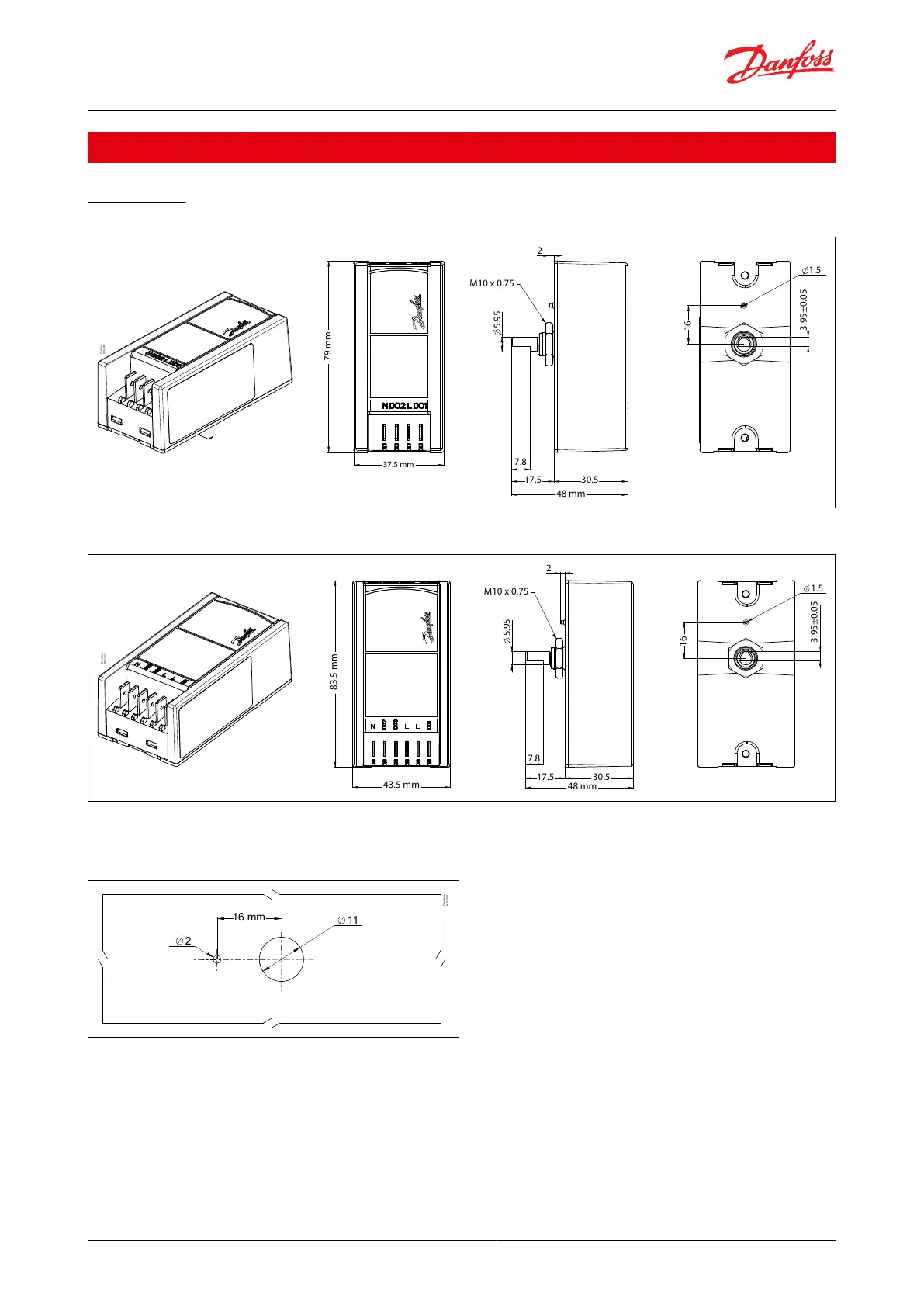

Figure 12: EETc
7.8
5.95
2
3.95±0.05
1.5
M10 x 0.75
Danfoss 80G400
79 mm
37.5 mm
48 mm
30.517.5
16
Figure 13: EETa
7.8
5.95
2
1.5
3.95±0.05
M10 x 0.75
83.5 mm
43.5 mm
48 mm
30.517.5
16
Danfoss 80G401
M10 x 0.75 is supplied loose.
Figure 14: Mounting plate dimensionfor EETc and EETa
11
2
Danfoss 80G402
16 mm
Recommended Mounting Plate Hole Center
Refrigeration controller, type EET series
