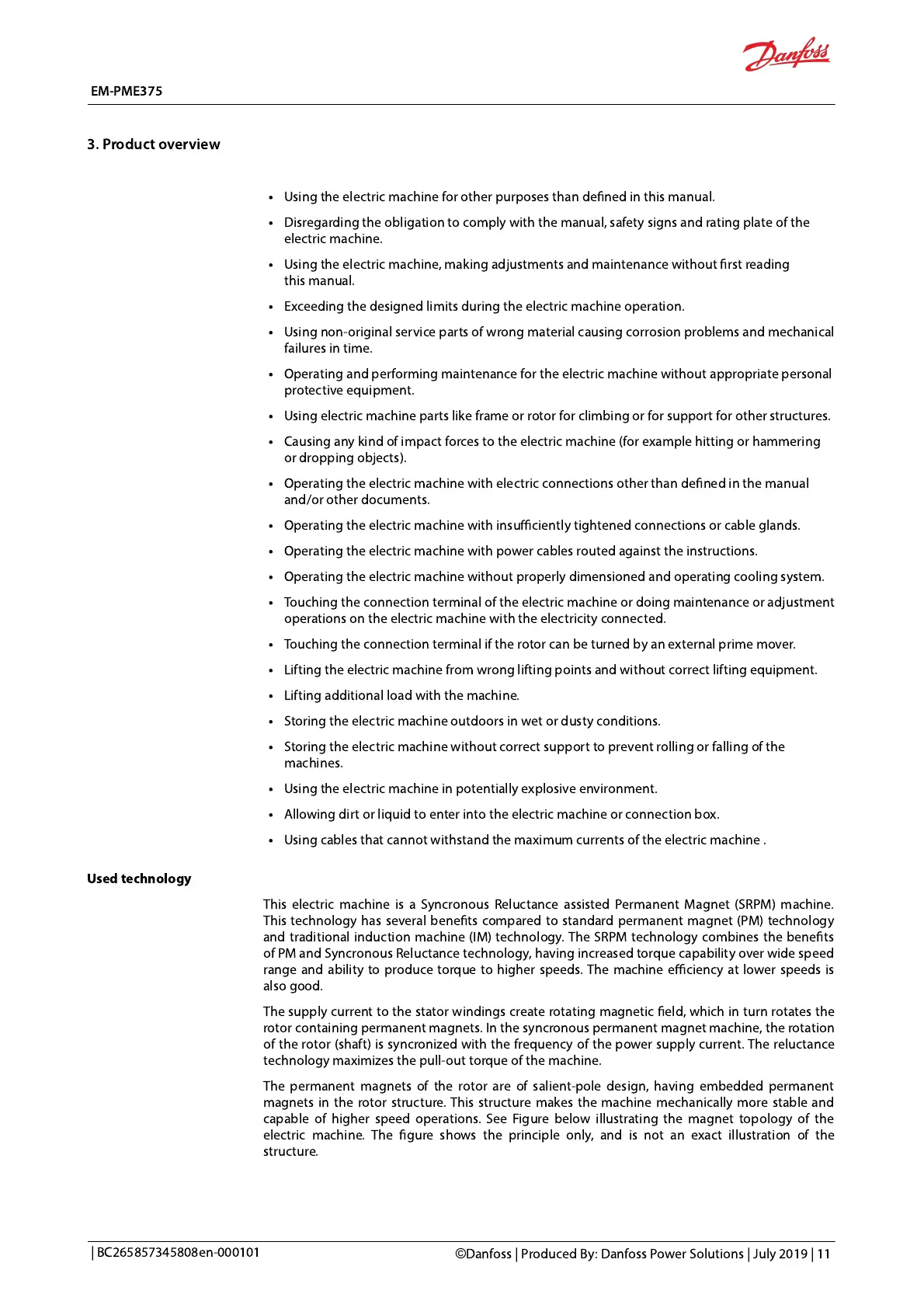

Using the electric machine
for other purposes than dened in this
manual.
Disregarding the obligation to comply with the manual, safety signs and rating plate of the
electric machine.
Using the electric machine, making adjustments and maintenance without rst reading
this
manual.
Exceeding the designed limits during the electric machine operation.
Using non-original service parts of wrong material causing corrosion problems and mechanical
failures in time.
Operating and performing maintenance for the electric machine
without appropriate personal
protective equipment.
Using electric machine parts like frame
or rotor for climbing or for support for other structures.
Causing any kind of impact forces to the electric machine (for example
hitting or hammering
or dropping objects).
Operating the electric machine
with electric connections other than dened in the manual
and/or other documents.
Operating the electric machine
with insufficiently tightened connections or cable glands.
Operating the electric machine
with power cables routed against the instructions.
Operating the electric machine
without properly dimensioned and operating cooling system.
Touching the connection terminal
of the electric machine or
doing
maintenance or adjustment
operations on the electric machine with
the electricity connected.
Touching the connection terminal if
the rotor can
be turned by an external prime mover.
Lifting the electric machine
from wrong lifting points and without correct
lifting equipment.
Lifting additional load with the machine.
Storing the electric machine
outdoors in wet or dusty conditions.
Storing the electric machine
without correct
support to prevent rolling or falling of the
machines.
Using the electric machine
in potentially explosive environment.
Allowing dirt or liquid to enter into the electric machine or connection box.
Using cables that cannot
withstand the maximum currents of the electric machine
.
Used technology
This
electric machine
is a
Syncronous Reluctance assisted Permanent Magnet (SRPM) machine.
This technology has several benets compared to standard permanent magnet (PM) technology
and traditional induction machine (IM) technology. The SRPM technology combines the benets
of PM and Syncronous Reluctance technology, having increased torque capability over wide speed
range and ability to produce torque to higher speeds. The machine efficiency at lower speeds is
also good.
The supply current to the stator windings create rotating magnetic eld, which in turn rotates the
rotor containing permanent magnets. In the syncronous permanent magnet machine, the rotation
of the rotor (shaft) is syncronized with the frequency of the power supply current. The reluctance
technology maximizes the pull-out torque of the machine.
The permanent magnets of
the rotor are of salient-pole design, having embedded permanent
magnets in the rotor structure. This structure makes the machine mechanically more stable and
capable of higher speed operations. See Figure below illustrating the magnet topology of the
electric machine. The gure shows the principle only, and is not an exact illustration of the
structure.
