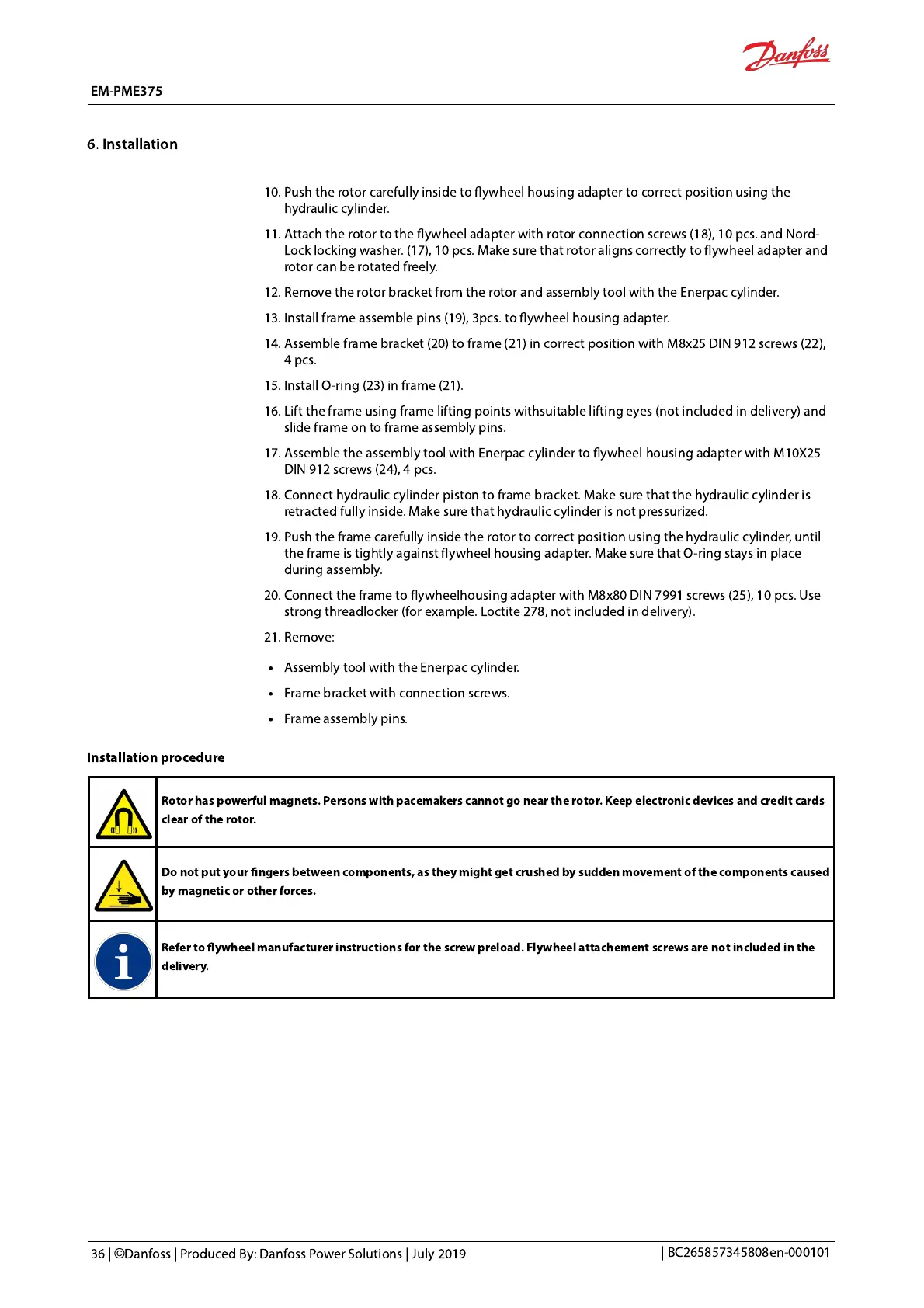

10. Push the
rotor carefully inside to ywheel housing adapter to correct position using the
hydraulic cylinder.
11. Attach the
rotor to the ywheel adapter with rotor connection screws (18), 10 pcs. and Nord-
Lock locking washer.
(17), 10 pcs.
Make sure that rotor aligns correctly to ywheel adapter and
rotor can be rotated freely.
12. Remove the rotor bracket from the rotor and assembly tool with the Enerpac cylinder.
13. Install frame assemble pins (19), 3pcs. to ywheel housing adapter.
14. Assemble frame bracket (20) to
frame (21) in correct position with M8x25 DIN 912 screws (22),
4 pcs.
15. Install O-ring (23) in frame (21).
16. Lift the frame using frame lifting points withsuitable lifting eyes (not included in delivery) and
slide frame on to frame assembly pins.
17. Assemble the assembly tool with Enerpac cylinder to ywheel housing adapter with M10X25
DIN 912 screws (24), 4 pcs.
18. Connect hydraulic cylinder piston to frame bracket.
Make sure that the hydraulic cylinder is
retracted fully inside.
Make sure that hydraulic cylinder is not pressurized.
19. Push the frame carefully inside the rotor to correct position using the hydraulic cylinder, until
the frame is tightly against ywheel housing adapter.
Make sure that O-ring stays in place
during assembly.
20. Connect the frame to ywheelhousing adapter with M8x80 DIN 7991 screws (25), 10 pcs.
Use
strong threadlocker (for example. Loctite 278, not included in delivery).
21. Remove:
Assembly tool with the Enerpac cylinder.
Frame bracket with connection screws.
Frame assembly pins.
Installation procedure
Rotor has powerful magnets. Persons with pacemakers cannot go near the rotor. Keep electronic devices and credit cards
clear of the rotor.
Do not put your ngers between components, as they might get crushed by sudden movement of the components caused
by magnetic or other forces.
Refer to ywheel manufacturer instructions for the screw preload. Flywheel attachement screws are not included in the
delivery.
