Use strong threadlocker, for example Loctite 278. (Not included in the delivery)
Connection interface screws are not included in the delivery.
Brackets and installation tools not included in a standard
delivery.

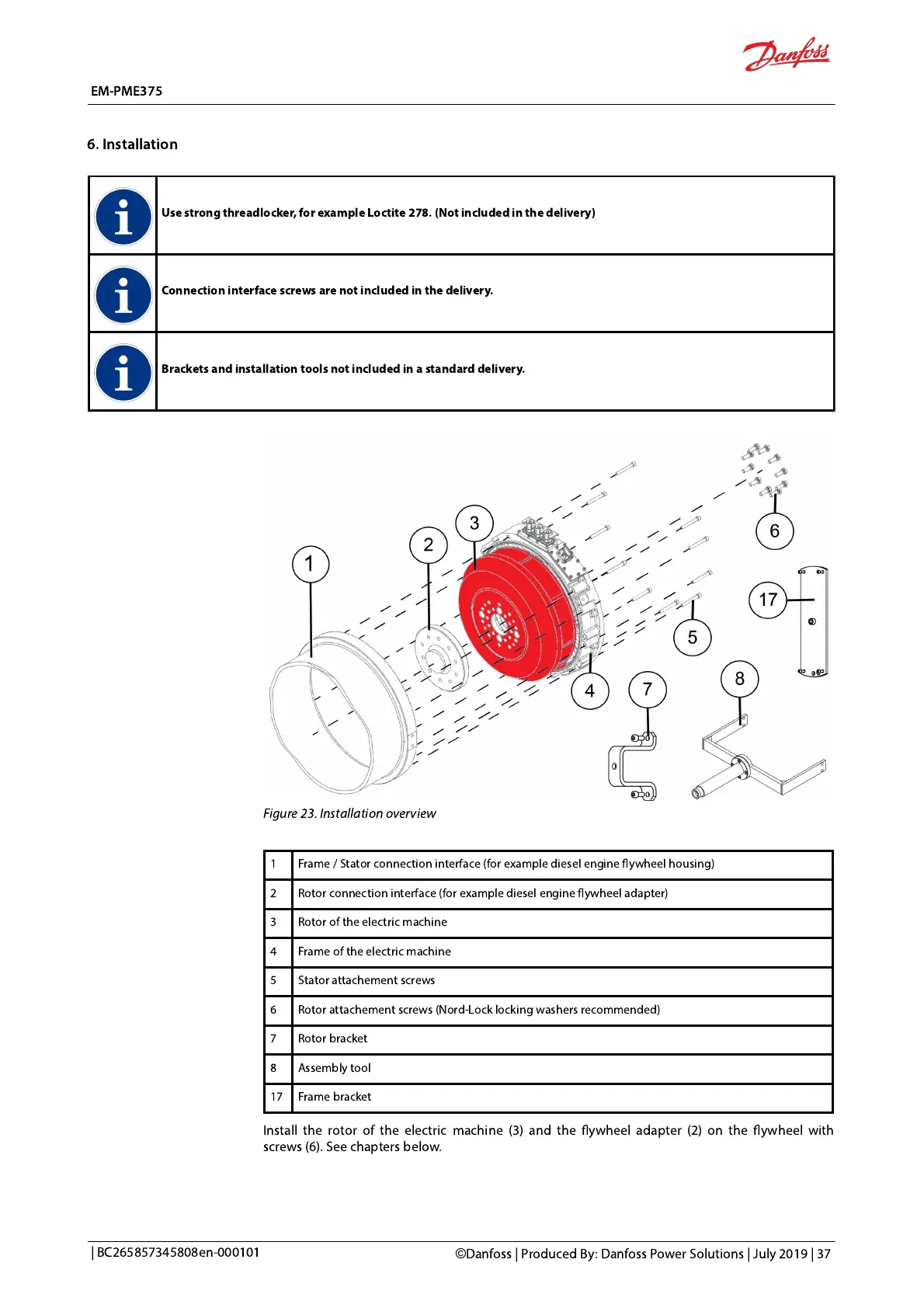

Figure 23. Installation overview
1 Frame / Stator connection interface (for example diesel engine ywheel housing)
2 Rotor connection interface (for example diesel engine ywheel adapter)
3 Rotor of the electric machine
4 Frame of the electric machine
5 Stator attachement screws
6 Rotor attachement screws (Nord-Lock locking washers recommended)
7 Rotor bracket
8 Assembly tool
17 Frame bracket
Install the rotor of the electric machine (3) and the ywheel adapter (2) on the
ywheel
with
screws (6). See chapters below.
