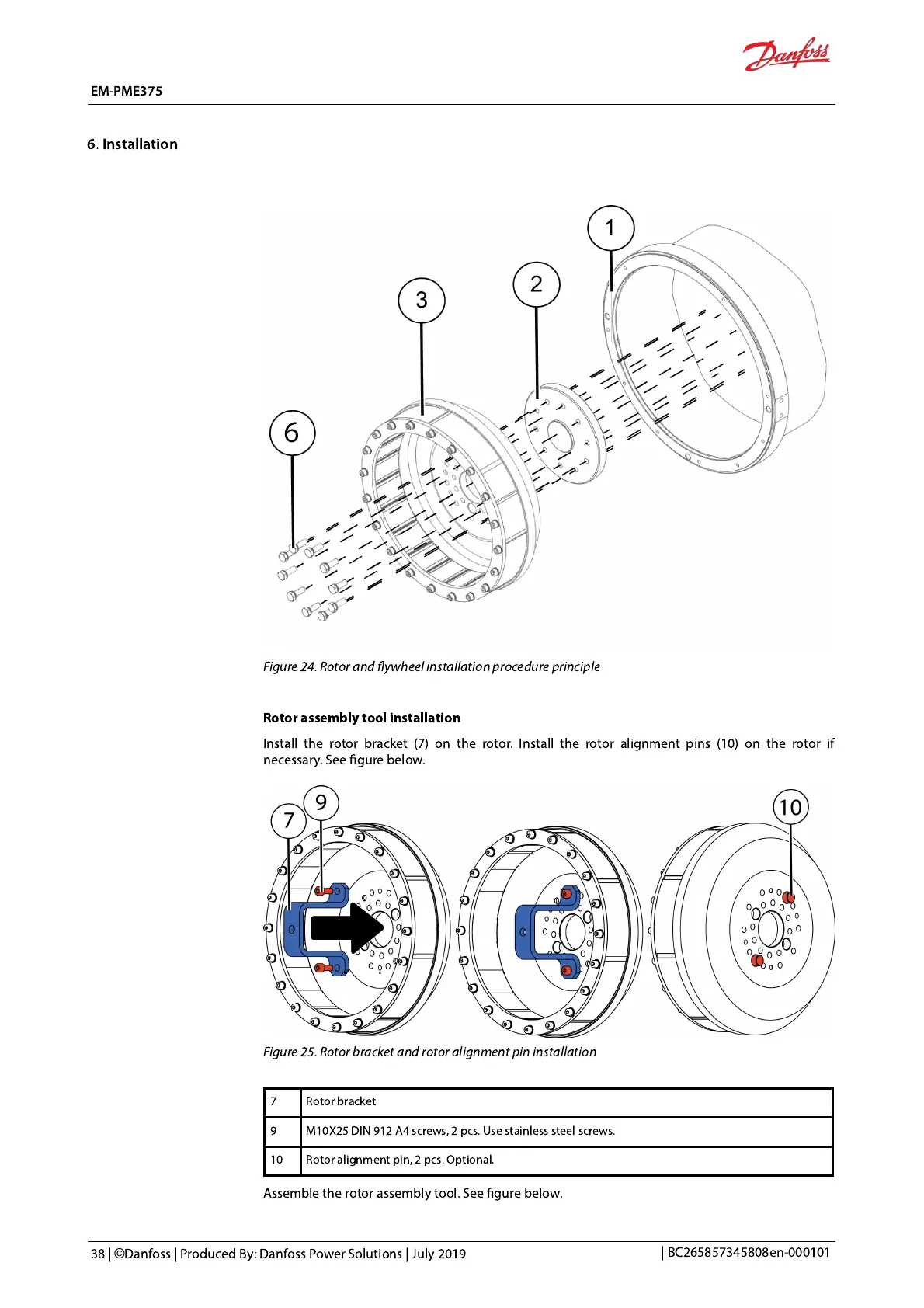

Figure 24. Rotor and ywheel installation procedure principle
Rotor assembly tool installation
Install the rotor bracket
(7) on the rotor. Install the rotor alignment pins (10) on the rotor if
necessary. See gure below.
Figure 25. Rotor bracket and rotor alignment pin installation
7 Rotor bracket
9 M10X25 DIN 912 A4 screws, 2 pcs. Use stainless steel screws.
10 Rotor alignment pin, 2 pcs. Optional.
Assemble the rotor assembly tool. See gure below.
