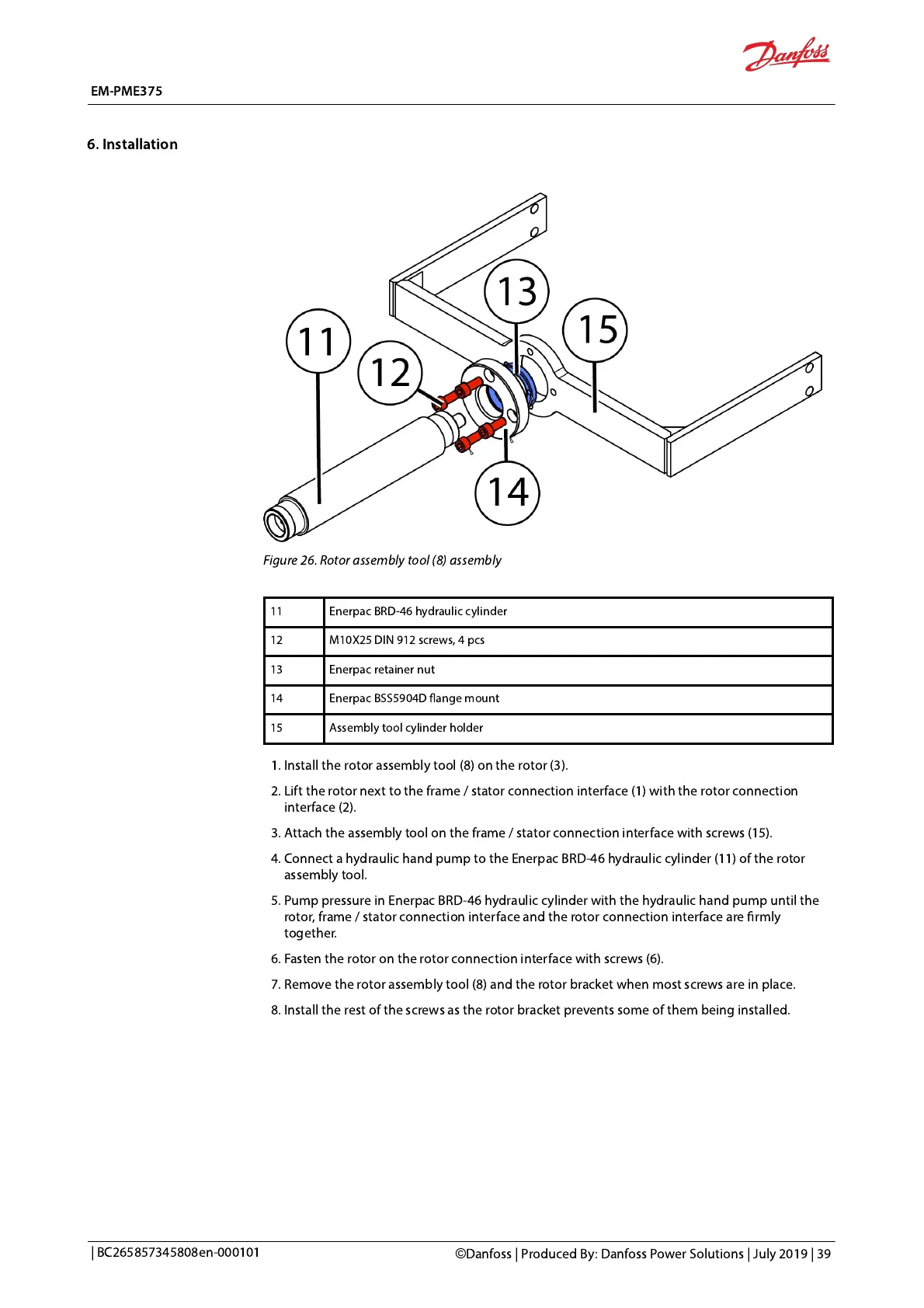

Figure 26. Rotor assembly tool (8) assembly
11 Enerpac
BRD-46 hydraulic cylinder
12 M10X25 DIN 912 screws, 4 pcs
13 Enerpac retainer nut
14 Enerpac BSS5904D ange mount
15 Assembly tool cylinder holder
1. Install the rotor assembly tool (8) on the rotor (3).
2. Lift the rotor next to the frame / stator
connection interface
(1) with the rotor connection
interface
(2).
3. Attach the assembly tool on the frame / stator connection interface with screws (15).
4. Connect a hydraulic hand pump to the
Enerpac
BRD-46 hydraulic cylinder (11) of the rotor
assembly tool.
5. Pump pressure in Enerpac
BRD-46 hydraulic cylinder
with the hydraulic hand pump until the
rotor, frame / stator connection interface
and the rotor connection interface
are rmly
together.
6. Fasten the rotor on
the rotor connection interface
with screws (6).
7. Remove the rotor assembly tool (8) and the rotor bracket when most screws are in place.
8. Install the rest of the screws as the rotor bracket prevents some of them being installed.
