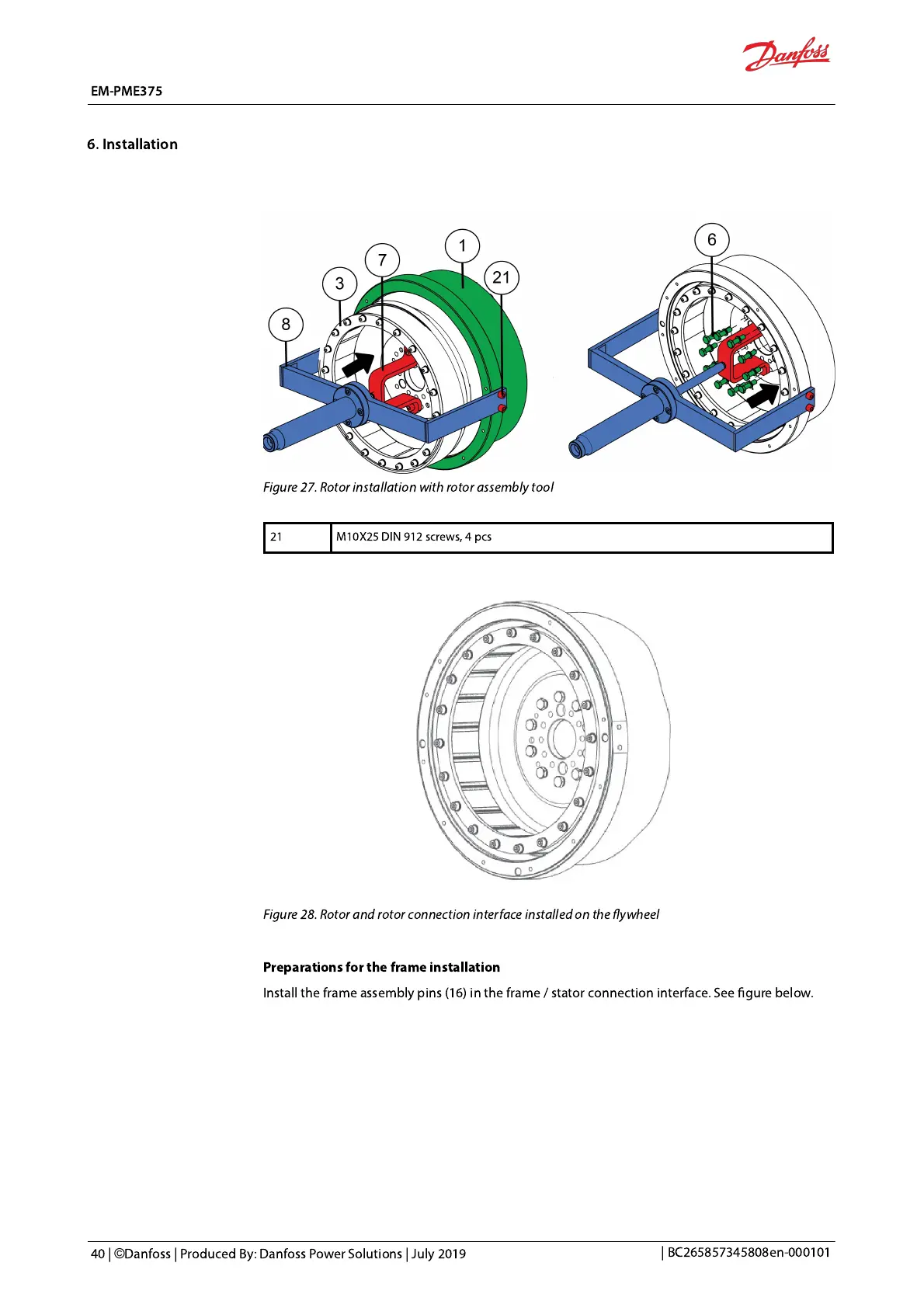

Figure 27. Rotor installation with rotor assembly tool
21 M10X25 DIN 912 screws, 4 pcs
Figure 28. Rotor and rotor connection interface  installed on the ywheel
Preparations for the frame installation
Install the frame assembly pins (16) in the frame / stator connection interface. See gure below.
EM-PME375
6. Installation
