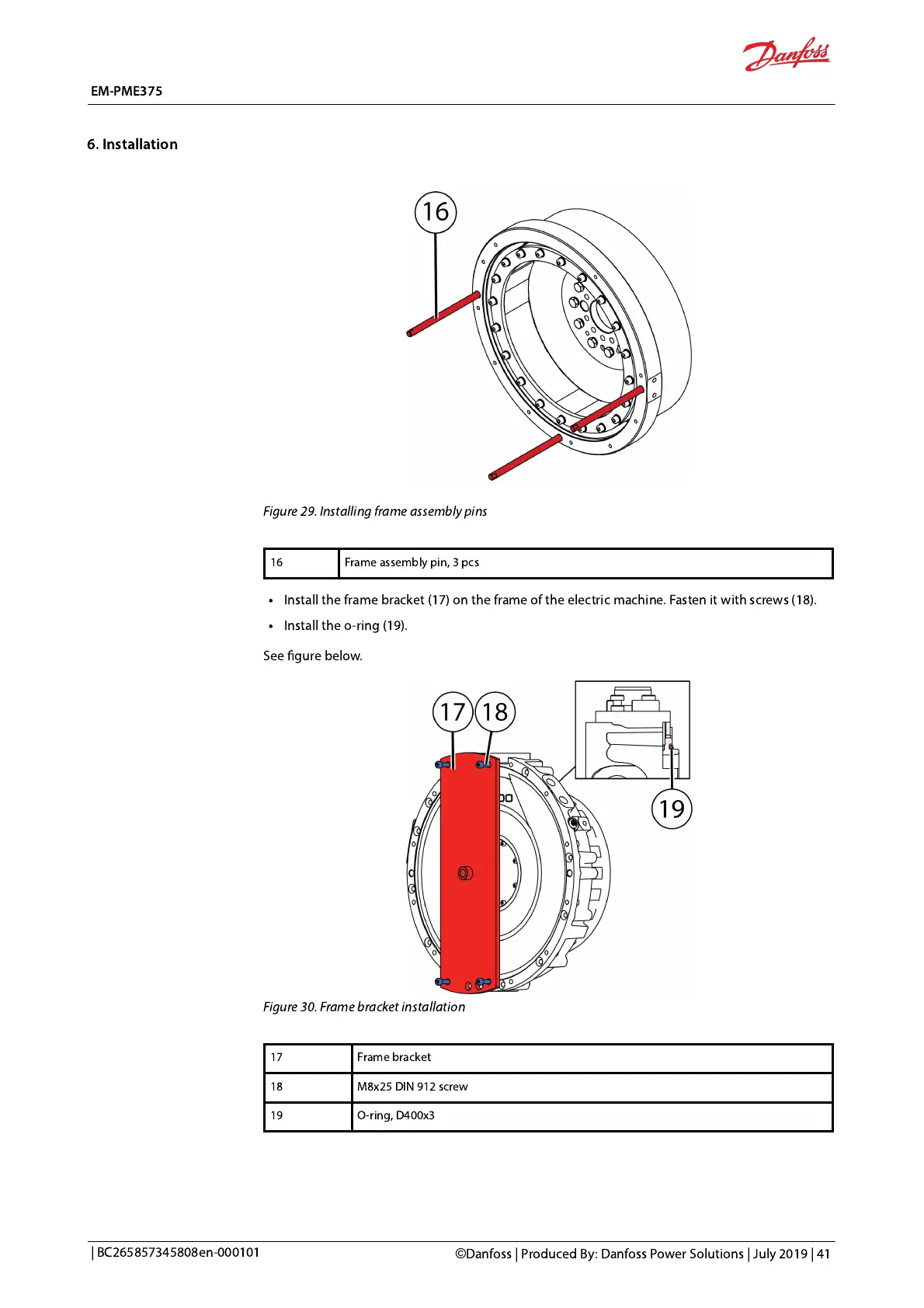

Figure 29. Installing frame assembly pins
16 Frame assembly pin, 3 pcs
Install the frame bracket (17) on the frame of the electric machine. Fasten it with screws (18).
Install the o-ring (19).
See gure below.
Figure 30. Frame bracket installation
17 Frame bracket
18 M8x25 DIN 912 screw
19 O-ring, D400x3
EM-PME375
6. Installation
| BC265857345808en-000101
© Danfoss | Produced By: Danfoss Power Solutions | July 2019 | 41
