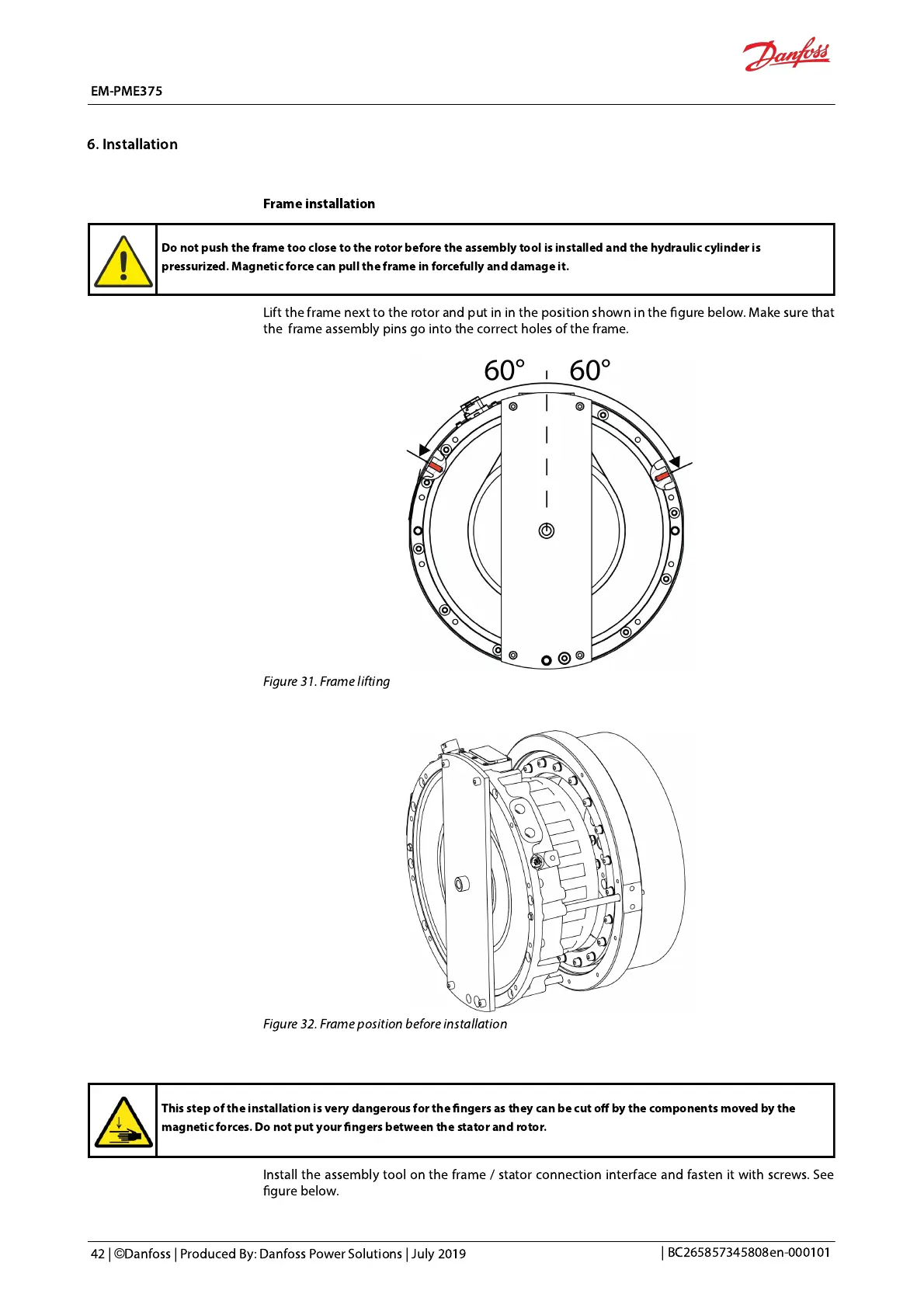

Frame installation
Do not push the frame too close to the rotor before the assembly tool is installed and the hydraulic cylinder is
pressurized. Magnetic force can
pull the frame in forcefully
and damage it.
Lift the frame next to the rotor and put in in the position shown in the gure below. Make sure that
the
frame assembly pins go into the correct holes of the frame.
Figure 31. Frame lifting
Figure 32. Frame position before installation
This step of the installation is very dangerous for the ngers as they can be cut off by the components moved by the
magnetic forces. Do not put your ngers between the stator and rotor.
Install the assembly tool on the frame / stator connection interface
and fasten it with screws. See
gure below.
