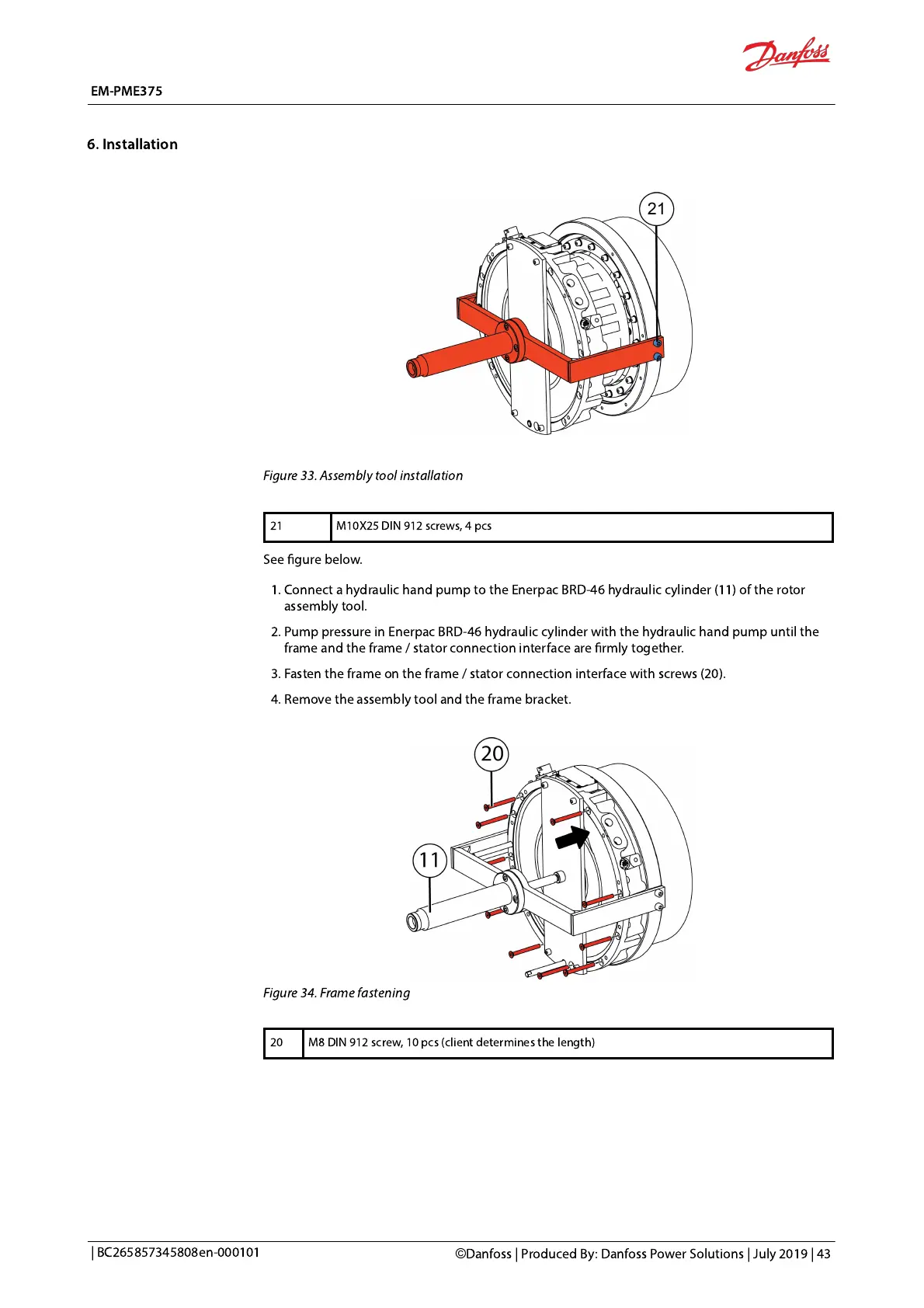

Figure 33. Assembly tool installation
21 M10X25 DIN 912 screws, 4 pcs
See gure below.
1. Connect a hydraulic hand pump to the
Enerpac
BRD-46 hydraulic cylinder (11) of the rotor
assembly tool.
2. Pump pressure in Enerpac
BRD-46 hydraulic cylinder
with the hydraulic hand pump until the
frame and
the frame / stator connection interface
are rmly together.
3. Fasten the frame on the frame / stator connection interface
with screws (20).
4. Remove the assembly tool and the frame bracket.
Figure 34. Frame fastening
20 M8 DIN 912
screw, 10 pcs (client determines the length)
